Ⅰ. Introduction

Event rules are used to associate events and actions. Milesight VMS Enterprise supports rich events, multiple actions and alarm modes, which you can combine freely and configure as your need. Every event can be set to trigger many kinds of actions at the same time. Also, every event can be set to trigger different actions in different time periods. After configuring the event rules, when an event is detected, it can promptly remind or automatically trigger actions according to your settings. In this case, focusing on events becomes easier and you won’t miss the events you care about.



By default, some rules have been automatically created for you in the system. These rules are used to notify the abnormalities that may occur in the system. If an event is detected, you will receive a notification in the Notifications panel. It is strongly recommended to keep them. You can also adjust them as needed.


Ⅱ. How to set an event rule

If you’re not an owner or administration, make sure you have permission for event rule settings.

2.1 Add an event rule

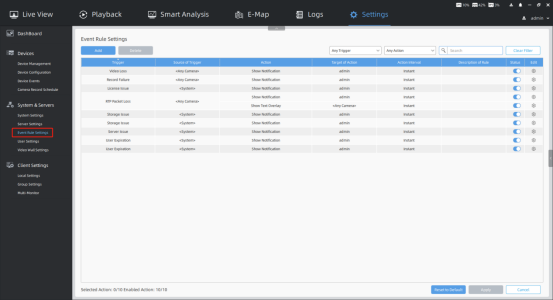

Step 1: Click “Settings” -> “System & Servers” -> “ Event Rule Settings”.

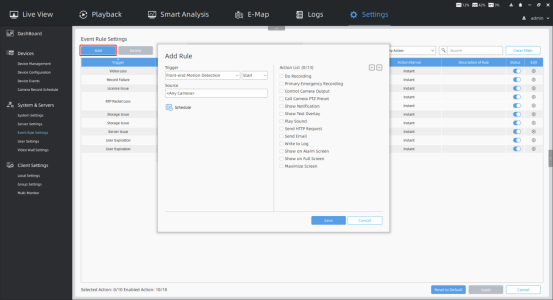

Step 2: Click “Add”, set trigger, schedule and action, then click “Save”.

There are many kinds of events and actions. Different events or actions have corresponding settings. Here you can check the below table to know more about them.

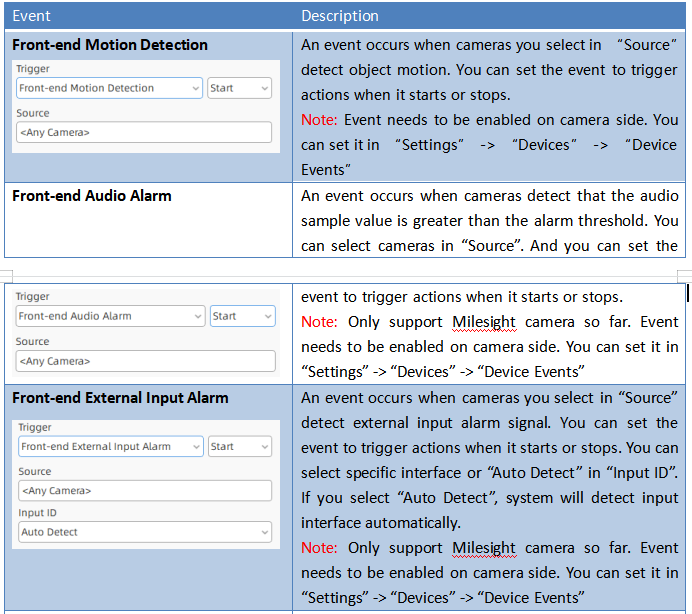

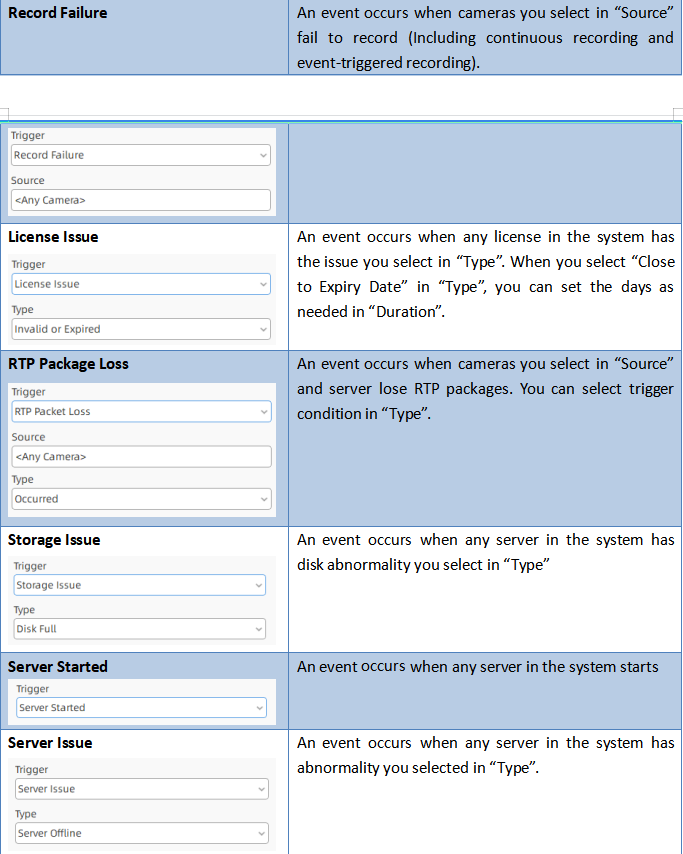

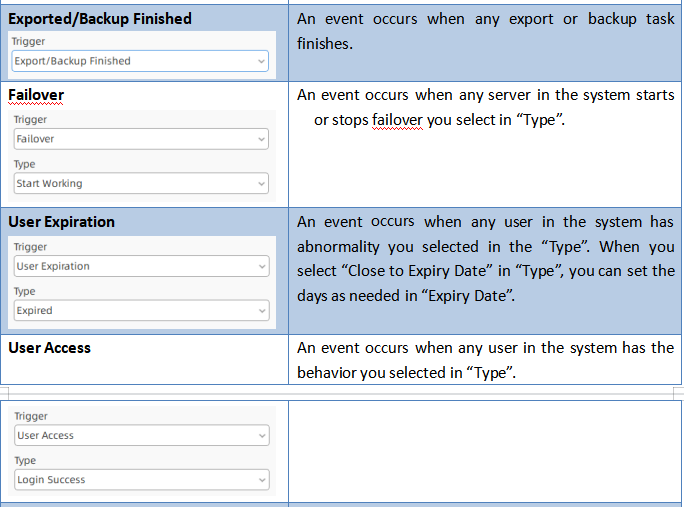

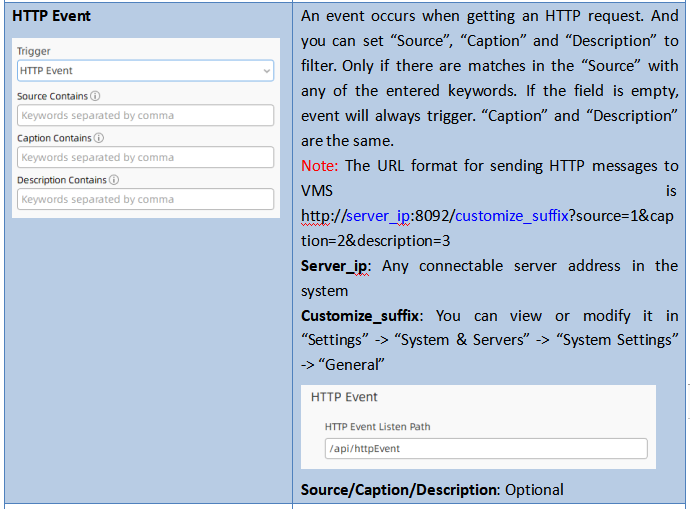

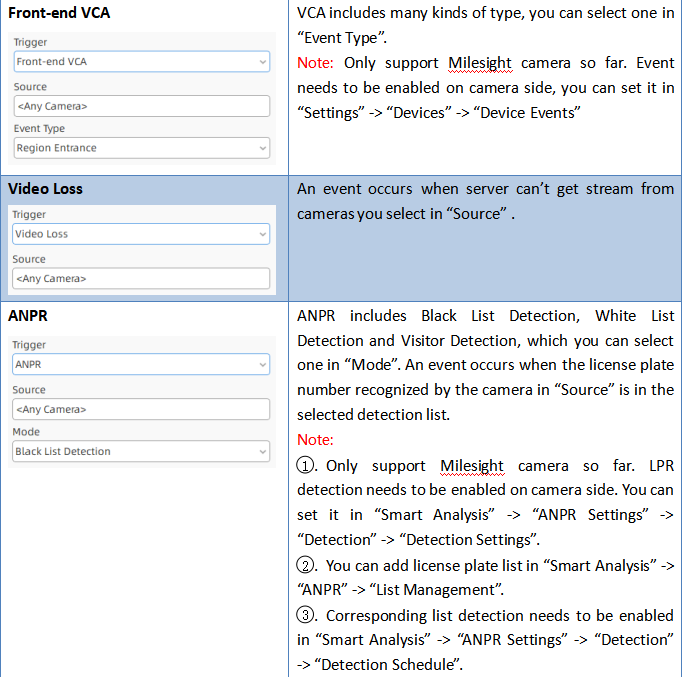

  • Trigger

  • Action

Note:

 When an event is detected, if you want the corresponding camera in live view interface to be prompted with a flashing box, only need to check "Show Flashing Border" in "Settings" -> “Client Settings” -> “Local Settings” -> “Alarm”.

Each event can trigger different actions. If the checkbox of action is disabled, the event doesn’t support triggering this action.

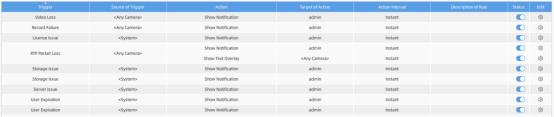

Step 3: After adding event rules, you can see them in the list.

Optional: You can also edit or delete the event rules as needed.

Step 4

After completing all operations, click “Apply”.*” means the rules haven’t been saved, don’t forget to click “Apply”.


Ⅲ. Example

  • Setting

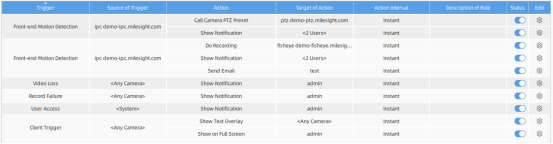

Set the following event rules in the system.

①. From 1 p.m to 4 p.m, when a motion event is detected in “ipc demo”, call “ptz demo” preset and show a notification.

②. From 4 p.m to 6 p.m, when a motion event is detected in “ipc demo”, do recording, show notification and email to user “Test”.

③. When any camera in the system has video loss, show a notification.

④. When any camera in the system fails to record, show a notification.

⑤. When any user login the system, show a notification.

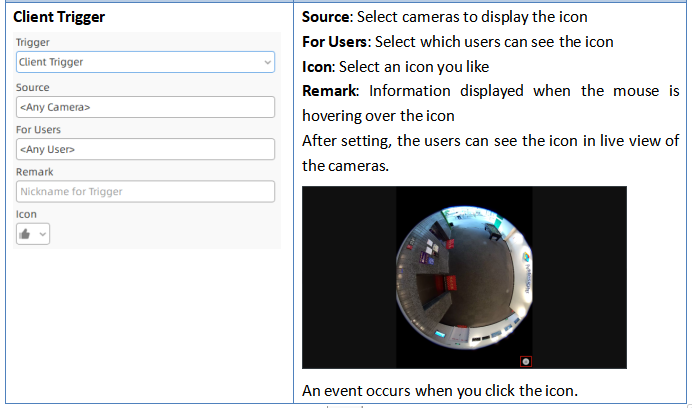

⑥. Add an icon to each camera. After clicking the icon, show text in live view of the camera and push the live view of the camera to display on full screen.

  • Result

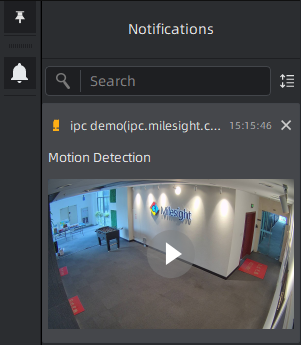

①. From 1 p.m to 4 p.m, when a motion event is detected in “ipc demo”, call “ptz demo” preset and a notification will be shown in Notifications panel.

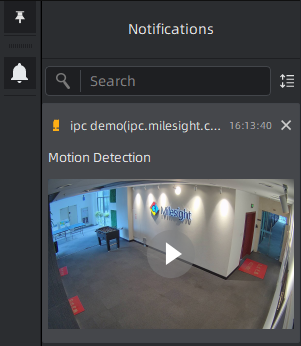

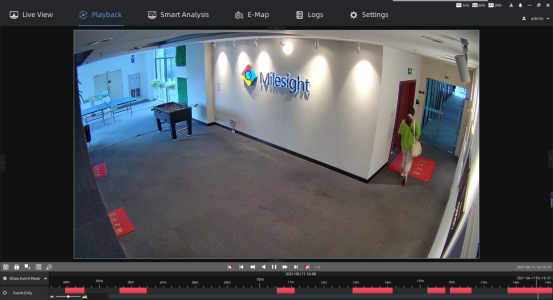

②. From 4 p.m to 6 p.m, when a motion event is detected in “ipc demo”, a notification will be shown in Notifications panel. User “Test” will receive an email. And you can view the recording in Playback interface.

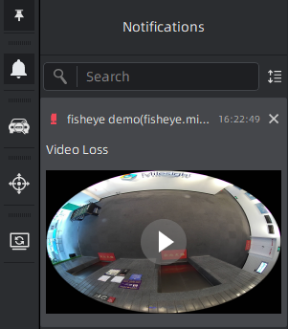

③. When a camera in the system has video loss, a notification will be shown in Notifications panel.

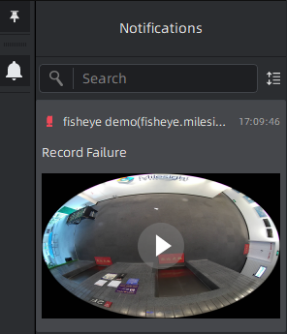

④. When a camera in the system fails to record, a notification will be shown in Notifications panel.

⑤. When a user login the system, a notification will be shown in Notifications panel.

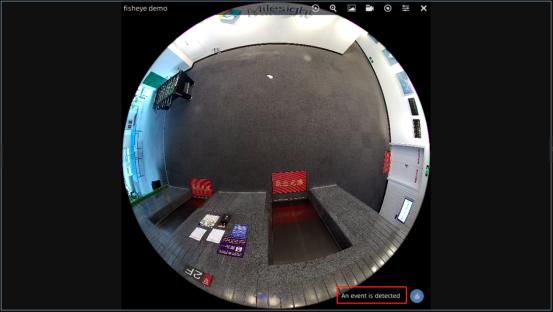

⑥. After clicking the icon, text will be shown in the live view of the camera.

All events will be recorded, you can view them in Logs interface.
