Milesight PoE NVR supports Third-party camera to add. But before plug into Milesight PoE NVR, the Third-party camera should set to the same IP segment as the NVR PoE IP.

Here shows the steps of settings:

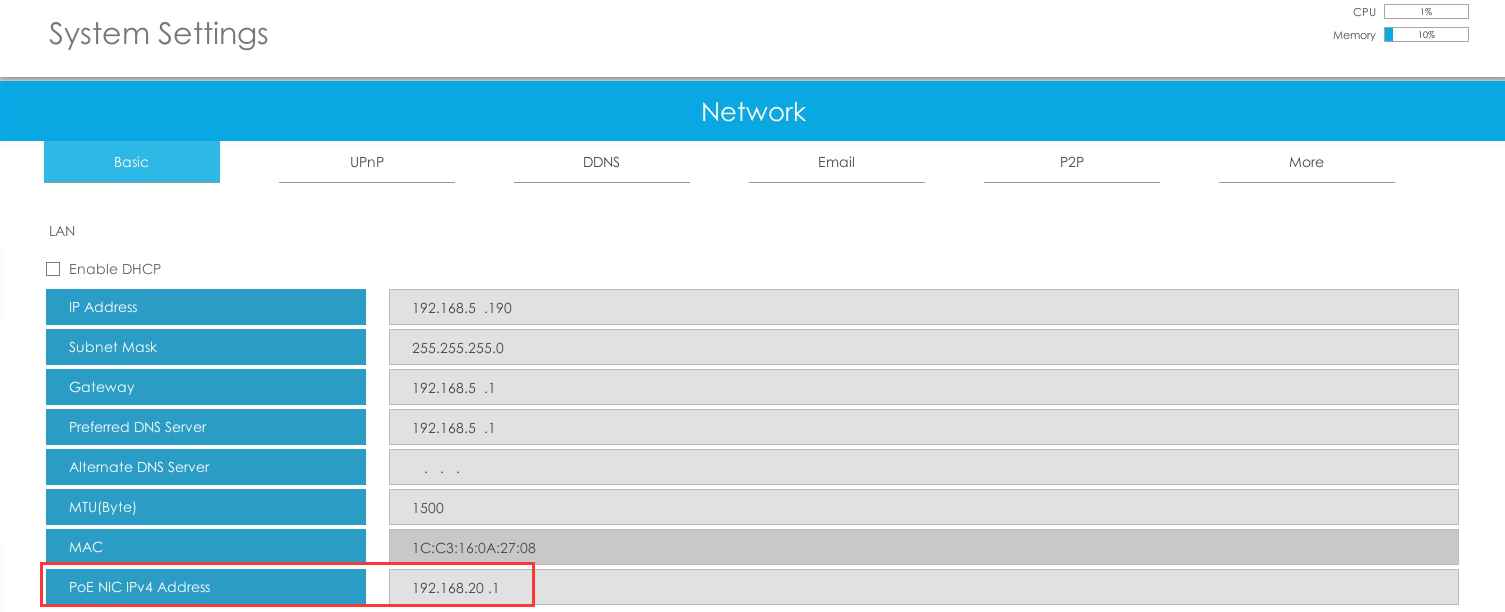

1. NVR PoE IP Address(Internal NIC IPv4 Address)

Set the NVR POE IP Address, here takes the default for example.

2. Set the camera IP Address

Set the Third-party camera’s IP Address, the IP should at the same IP segment as NVR PoE IP.

Here takes for example.

3. Plug the PoE camera into the NVR PoE port.

4. Search the PoE camera

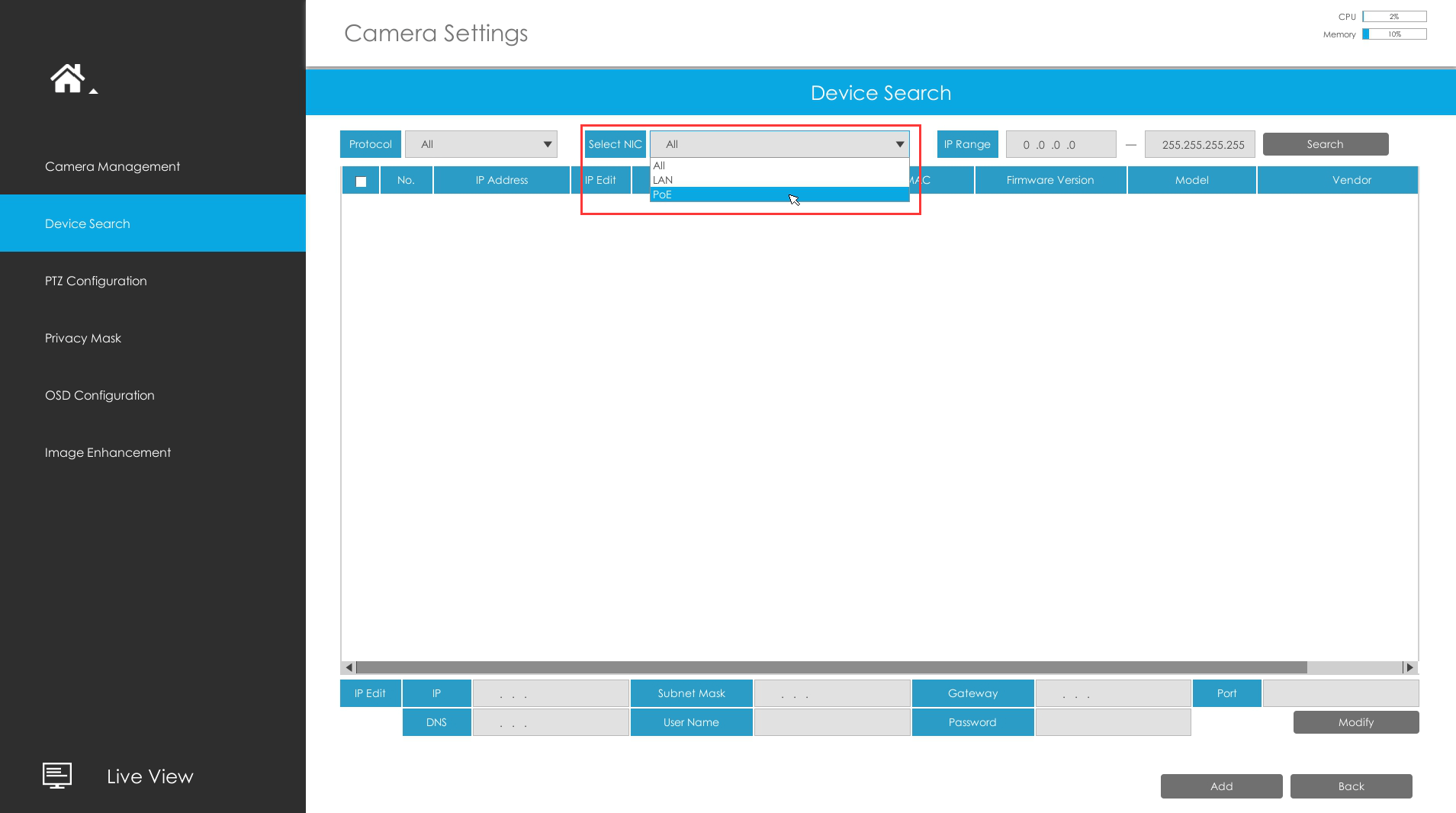

Select the NIC to “PoE” option, press “Search” button.

The PoE camera will appears in the list.

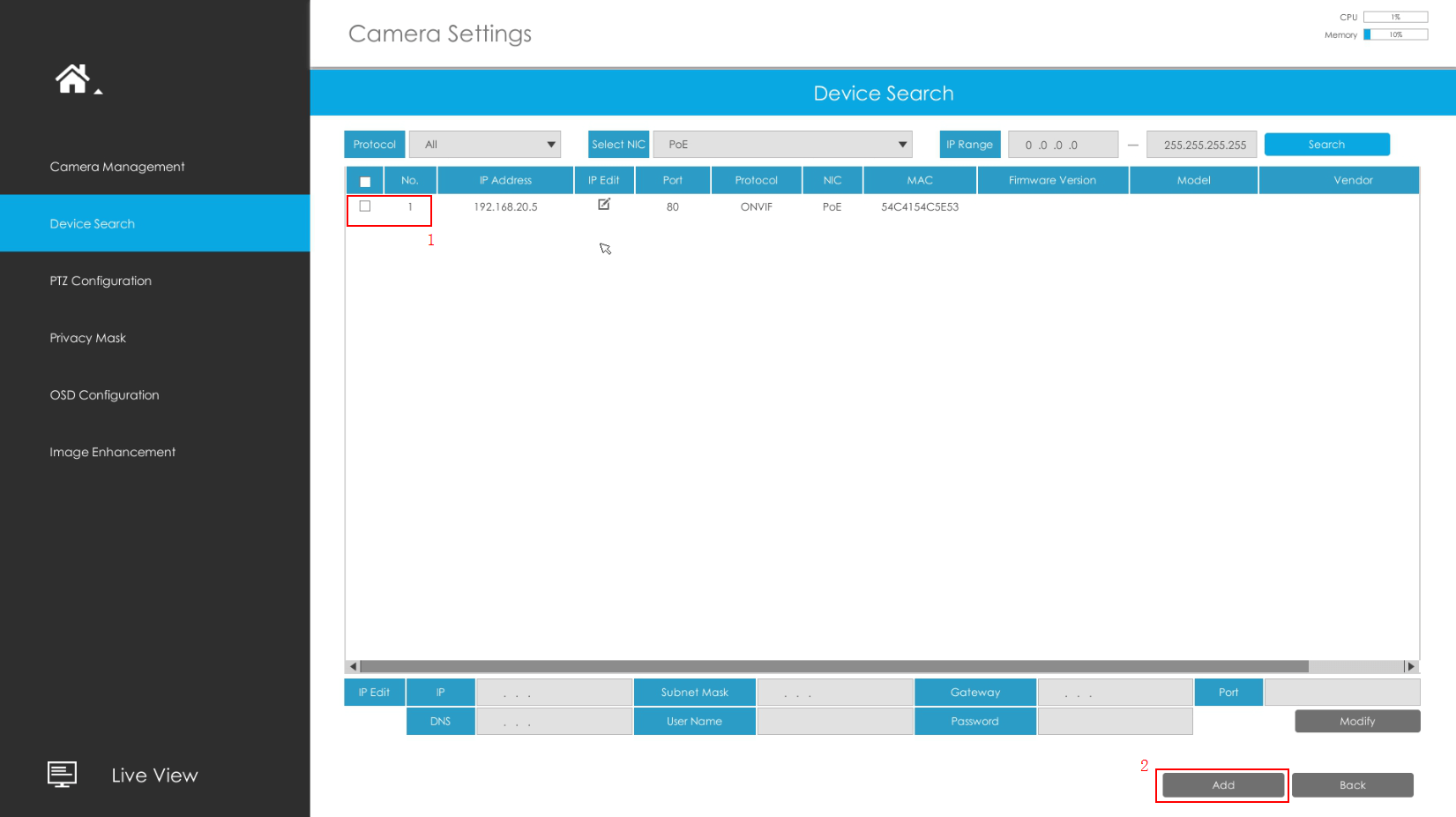

Select the Third-party PoE camera and press “Add” button.

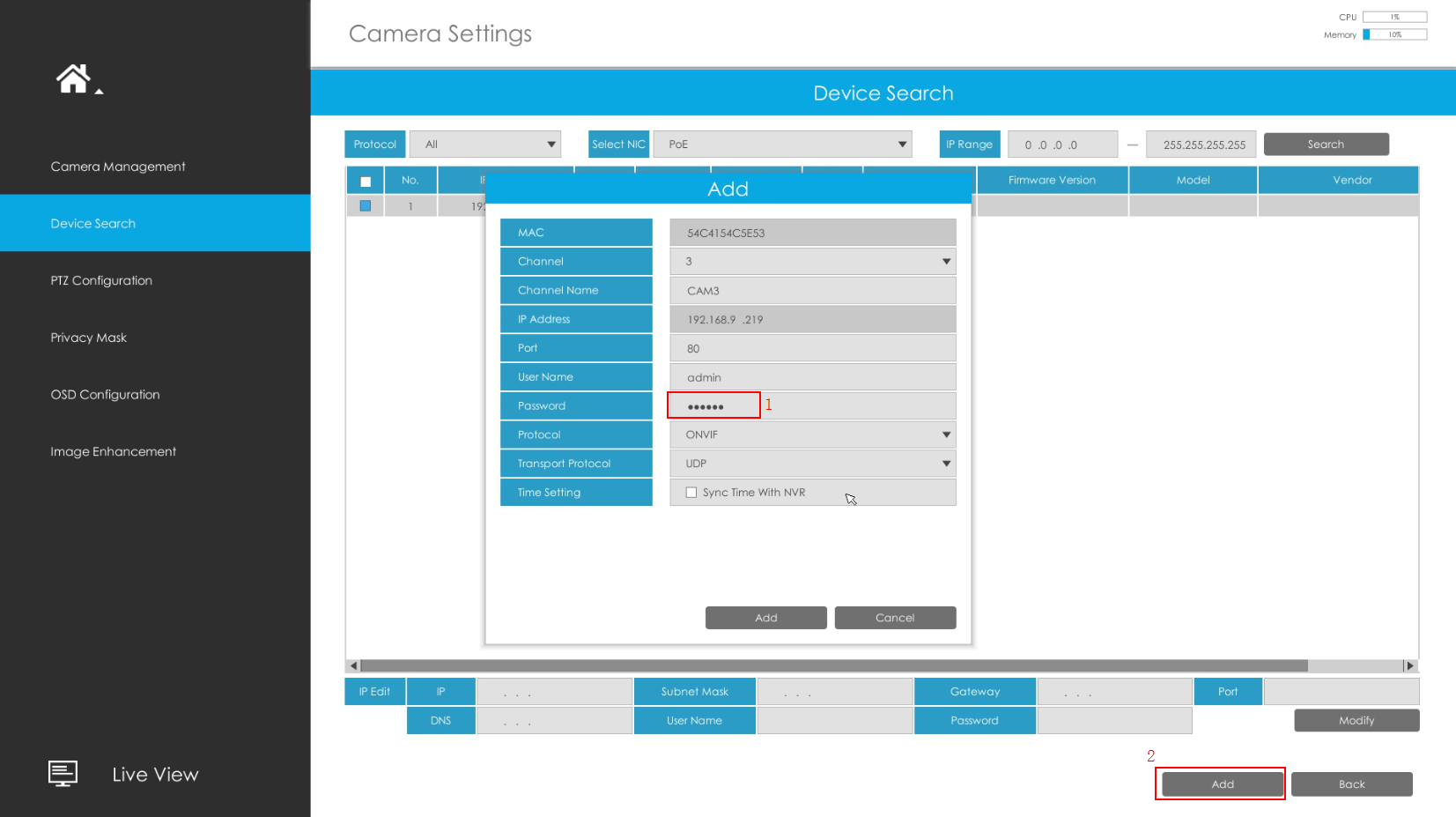

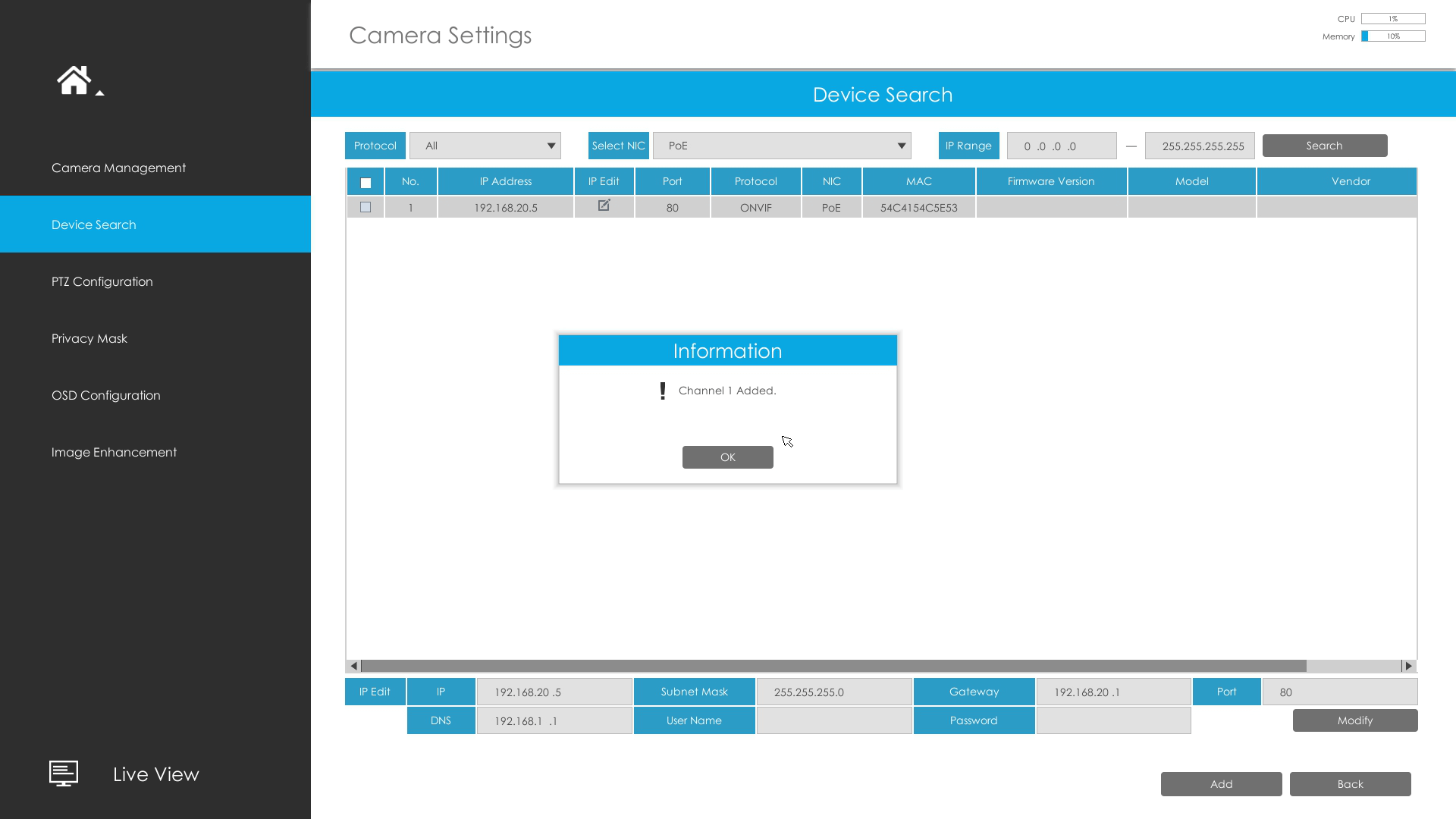

5. Add the PoE camera to the NVR

Input the Camera password, set the other parameters you want and then press “Add”.

6. Camera Management

Camera Management page will show you the information about the PoE camera.

Camera Management

7. PoE Port Status

You can go to “Status”- “Camera Status”- “PoE Port Status” to check the PoE Power information.

PoE Port Status
