1. The top cover has been removed, and the ball head and base are now integrated, eliminating the need to remove the top cover during installation.
Before Change
After Change
Top Cover has been removed
Top Cover has been removed
2. In the case of installing the Recessed Mount (A78), there is a change from previous installations.
A78 Recessed Mount

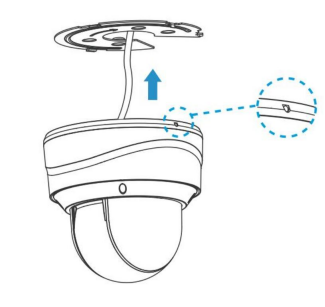

You will need to remove the mounting bracket before proceeding with the installation.
Installation Differences for PTZ Dome after Modification 1

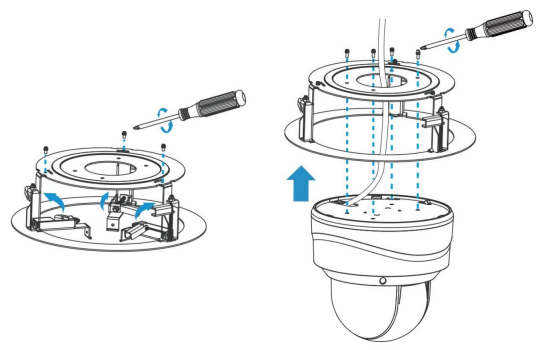

Next, assemble the Recessed Mount by setting up the support and attaching the fixation plate to them. Afterward, securely attach the camera to the Recessed Mount.
For complete installation steps, please refer to the Quick Start Guide.
