The following will introduce how to reset NVR via hardware.

The first part is the reset steps, and the second part is reset button for each model .

Note:

1. Please note that the reset procedure is very important, please follow the operation one by one to avoid the reset is not successful).

2. If still have problem after hardware resetting or failing to perform the hardware reset, please contact with [email protected].

1. Reset Steps

For NVRs whose software version is before 7x.9.0.2-r3, or 61.x.x.xx/ 30.x.x.xx/ 1.x.x.xx/2.x.x.xx, please refer to the steps below:

Step1: Turn off the power;

Step2: Press the reset button;

Step3: Keep pressing the reset button and power on the NVR at the same time;

Step4: You will hear several short “beep” during this time;

Step5: Reset successfully when the short “beep” become an nonstop “beep”.

For NVRs whose software version is 7x.9.0.2-r3 or above, please refer to the steps below:

Step1: Turn off the power;

Step2: Press the reset button;

Step3: Keep pressing the reset button and power on the NVR, you will hear a short “beep” sound at the same time;

Step4: After 5 seconds you will hear a “beep” sound lasting about 3 seconds.

Step5: Reset successfully when the “beep” sound stops.

2.Position of Reset Button

· Series-1000:

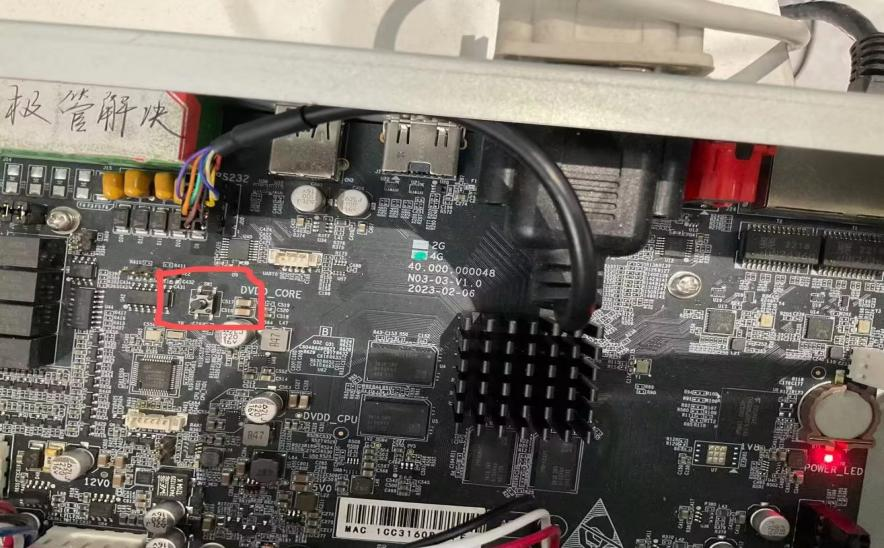

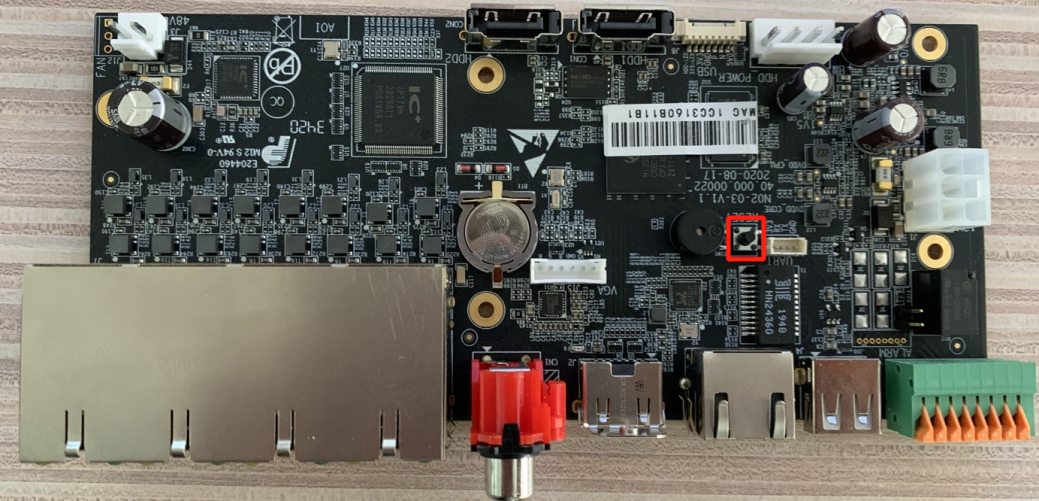

1004-UC/1008-UC: Loose the screws on the bottom and open the shell, an black button on the main board like the figure shown below

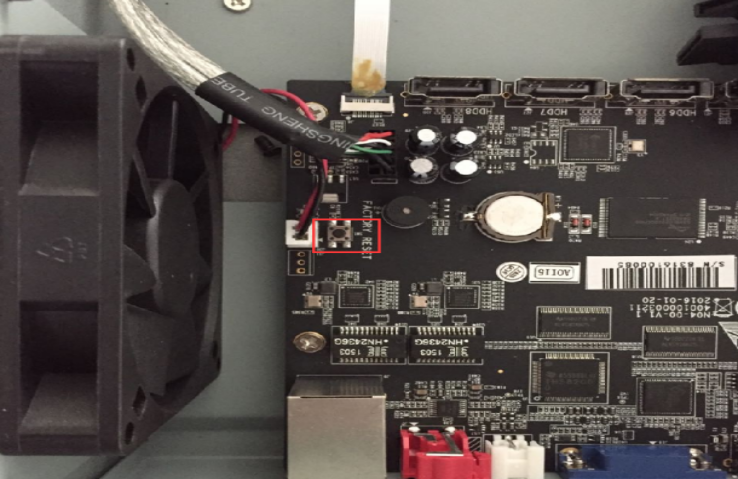

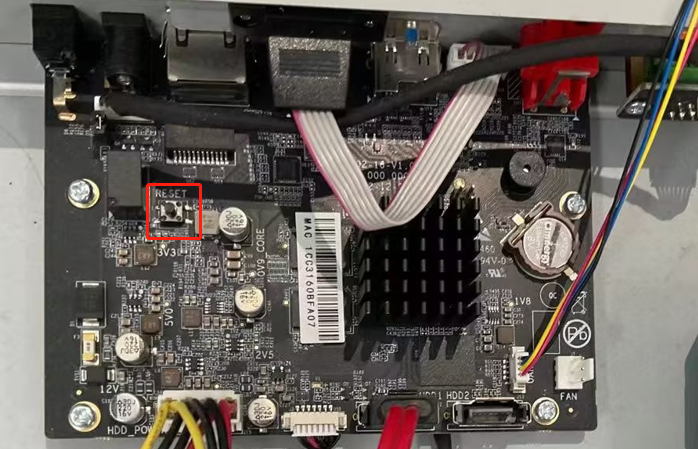

1004-UPC/1008-UPC: Loose the screws on the bottom and open the shell, an black button on the main board like the figure shown below.

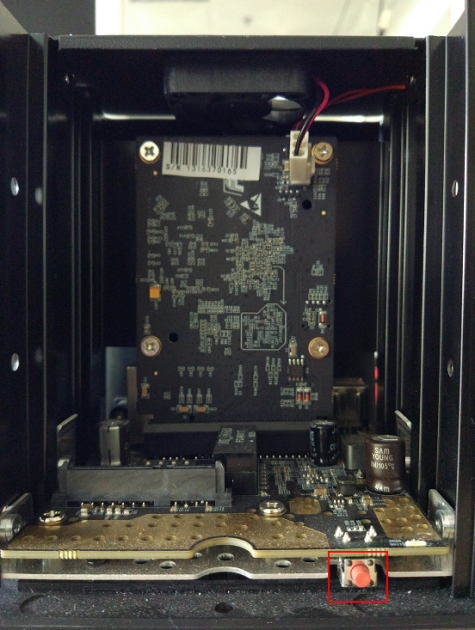

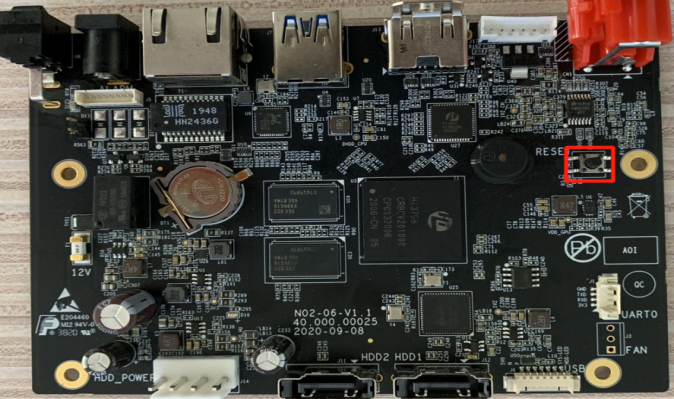

1008-UNPC: Slide and open the shell, an orange button on the inside like the figure shown below.

· Series-5000:

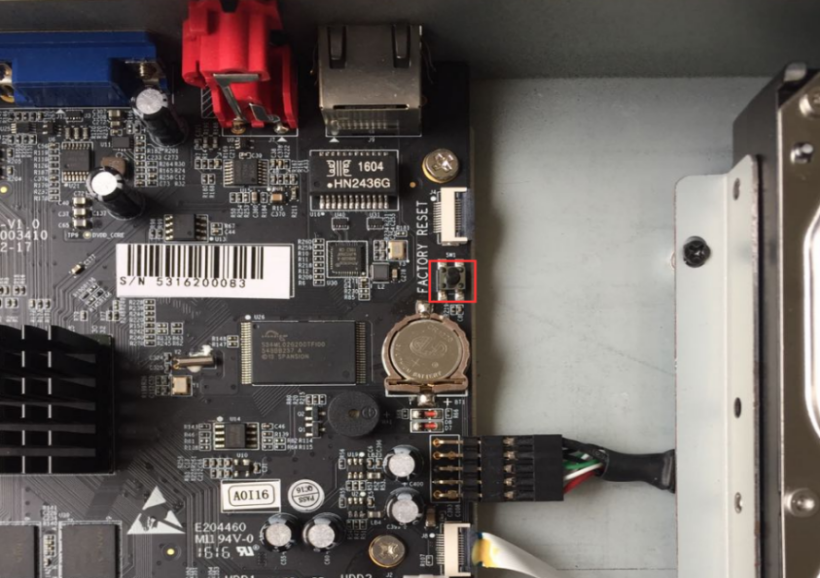

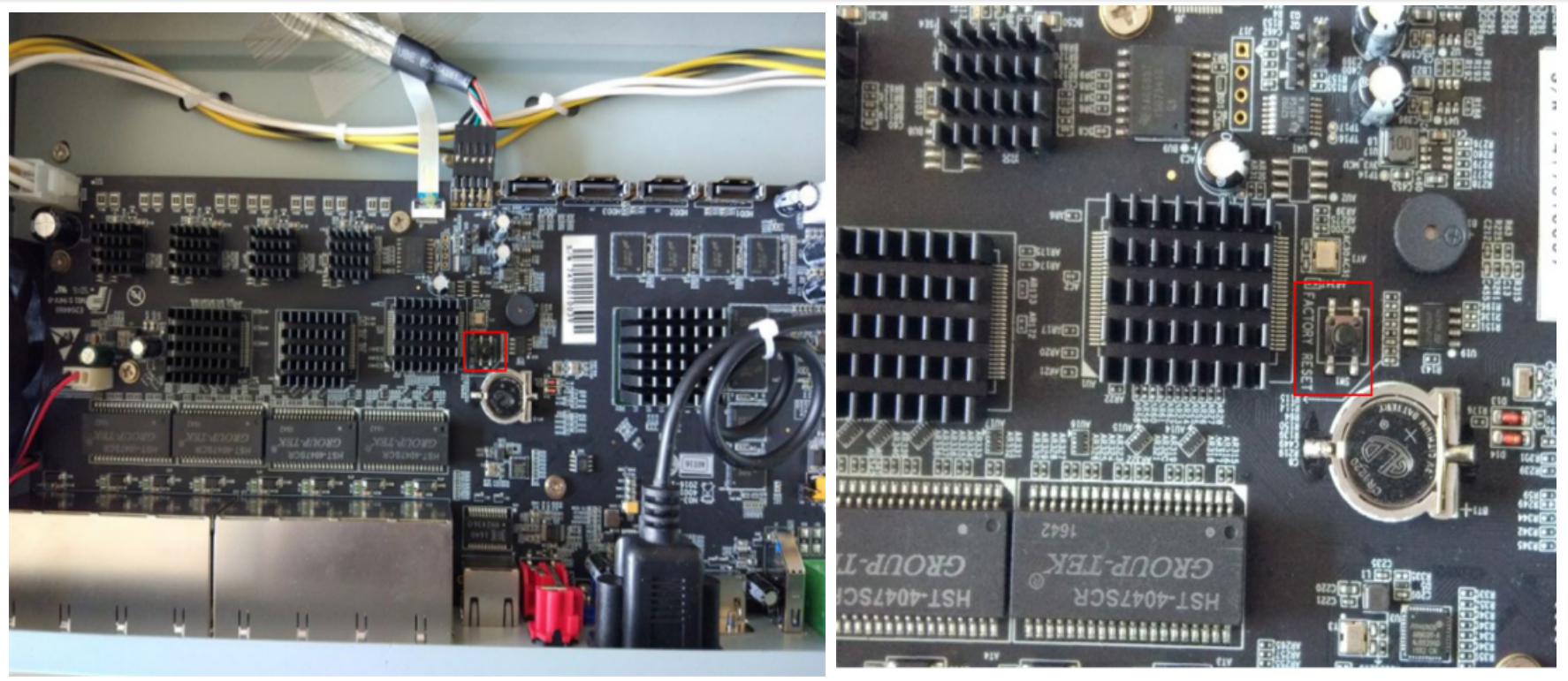

5008-UC: Slide and open the panel, a black button on the inside like the figure shown below.

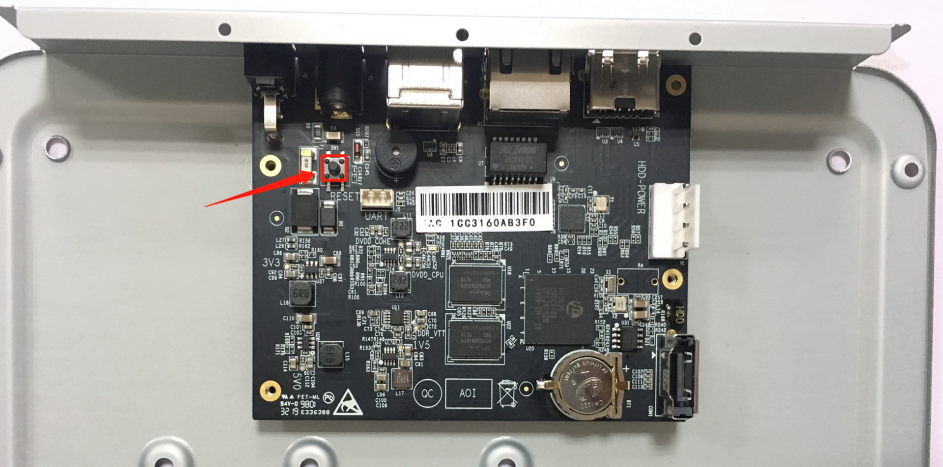

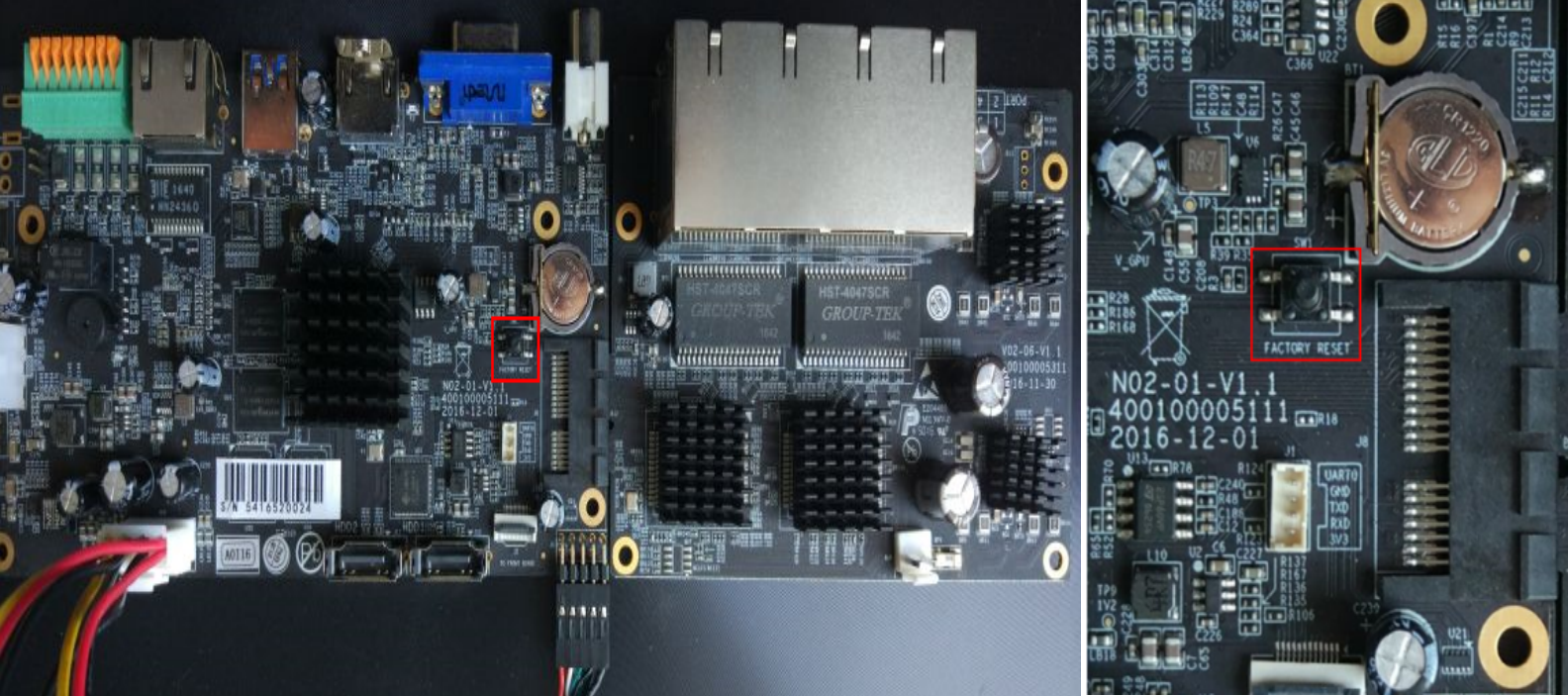

5016-UT: Slide and open the panel, a black button on the inside like the figure shown below.

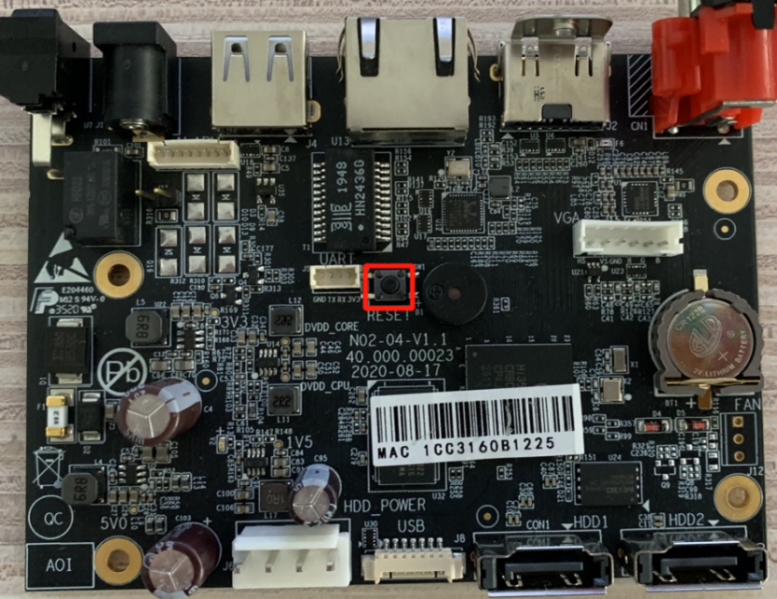

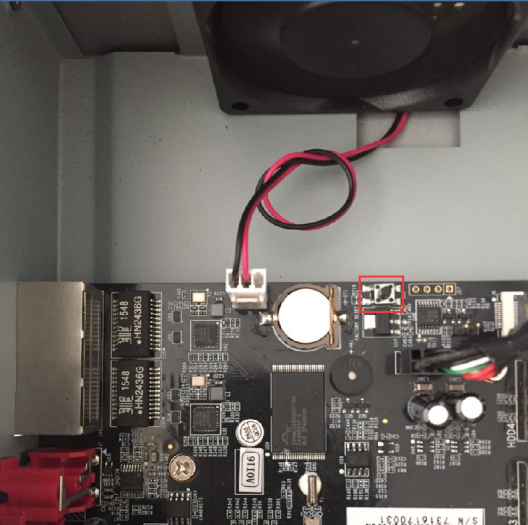

5016-UH/5032-UH: Slide and open the panel, a black button on the inside like the figure shown below.

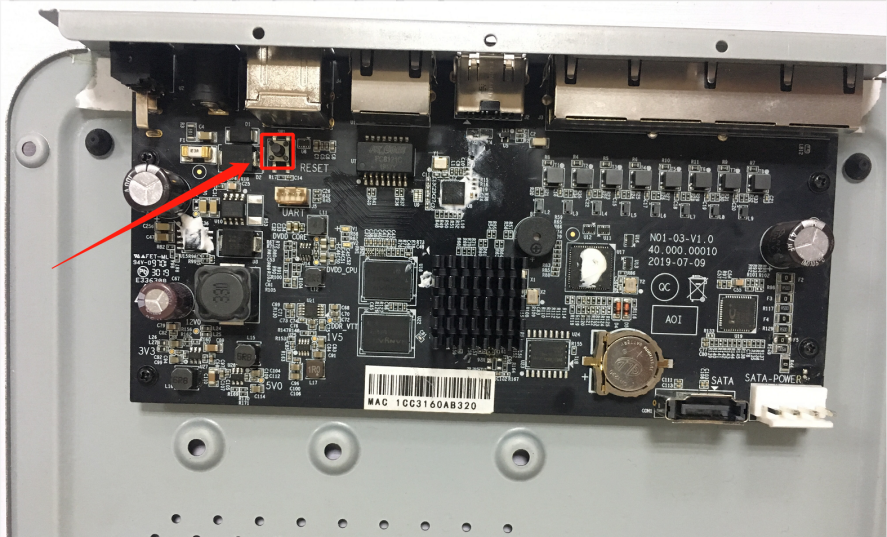

5008/5016-E, 5008/5016-PE : Slide and open the panel, a black button on the inside like the figure shown below.

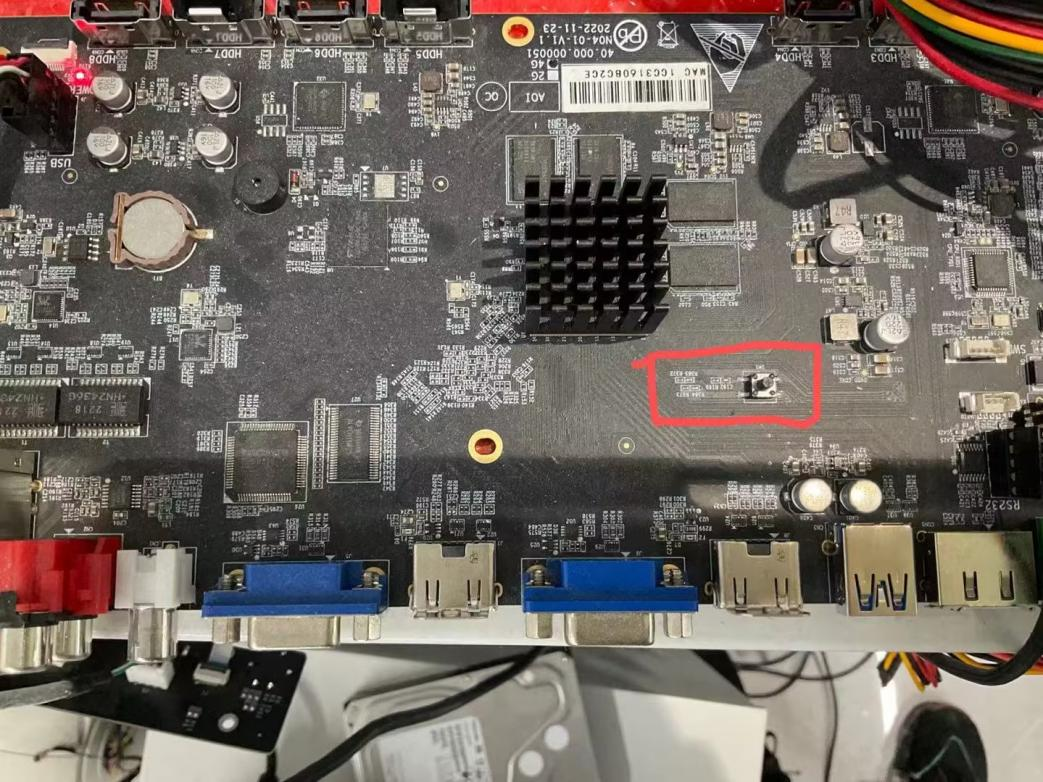

5008-UPT: Slide and open the panel, a black button on the inside like the figure shown below.

5008-UPC: Slide and open the panel, a black button on the inside like the figure shown below.

· Series-7000:

7016/7032-UH: Slide and open the panel, a black button on the inside like the figure shown below.

7016/7032-UPH/7048-UPH: Slide and open the panel, a black button on the inside like the figure shown below.

7016/7032-G/7048-PG：Slide and open the panel, a black button on the inside like the figure shown below.

· Series-8000:

8032/8064-UH: Slide and open the panel, a black button on the inside like the figure shown below.8032/8064-G：Slide and open the panel, a black button on the inside like the figure shown below.
