To help you to get the points you want, please read the lead-in first.

Lead-in

This document is organized by the order below:

1. How to Enable the Motion Detection

1) Way one--enable the motion detection via NVR

Local monitor setting

Web interface setting

2) Way two--enable the motion detection via IP cameras

2. Recording Setting for Motion Detection

1) Local monitor setting of recording

2) Web interface setting of recording

3. Other Alarm Actions for Motion Detection

1) Local monitor setting of other alarm actions

2) Web interface setting of other alarm actions

Note:

The 1. is the first step and the basic of 2. and 3.. If you want to record video when motion detection is triggered, please refer to 1. and 2.. If you want to hear audio alarm or set other alarm actions when something moves in the detected region, please refer to 1 and 3..

Please attach importance to where the mark ***** appears, because it may removes your confusions or give a quick guide when you operate the motion detection of NVR.

1. How to Enable the Motion Detection

Milesight’s NVR and IP cameras are data synchronization in the terms of motion detection; hence you can just choose one of two ways below, via NVR or via IP cameras, to enable it.

1) Way one--enable the motion detection via NVR

Local monitor setting

Step1: Log in the local monitor, and go to “Event”→“Motion Detection”

Step2: Choose the corresponding channel, set the motion region and motion sensitivity.

Step3: Set Effective Time of motion detection by clicking .

It will be more convenient by clicking or  to set or clear

all time settings.

Step4: Check settings. Log in “Status”→“Event Status”, when something moves in the detected region, we will see the icon changed, besides there is a motion indication in local monitor live view.

Enable motion detection via NVR

Web interface setting

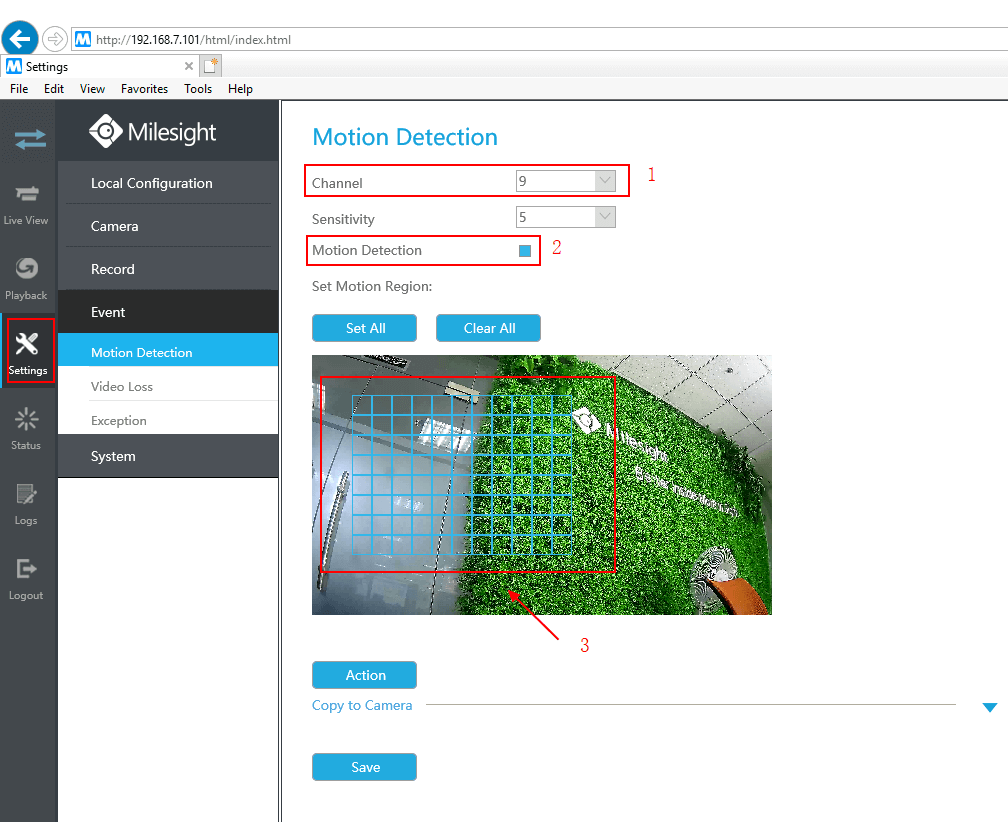

Step1: Log in NVR Web, click “Settings”→“Event”→“Motion Detection”.

Step2: Choose the corresponding channel, set the motion region and motion sensitivity.

Step3: Set Effective Time of motion detection by clicking .

It will be more convenient by clicking or   to set or clear all time settings.

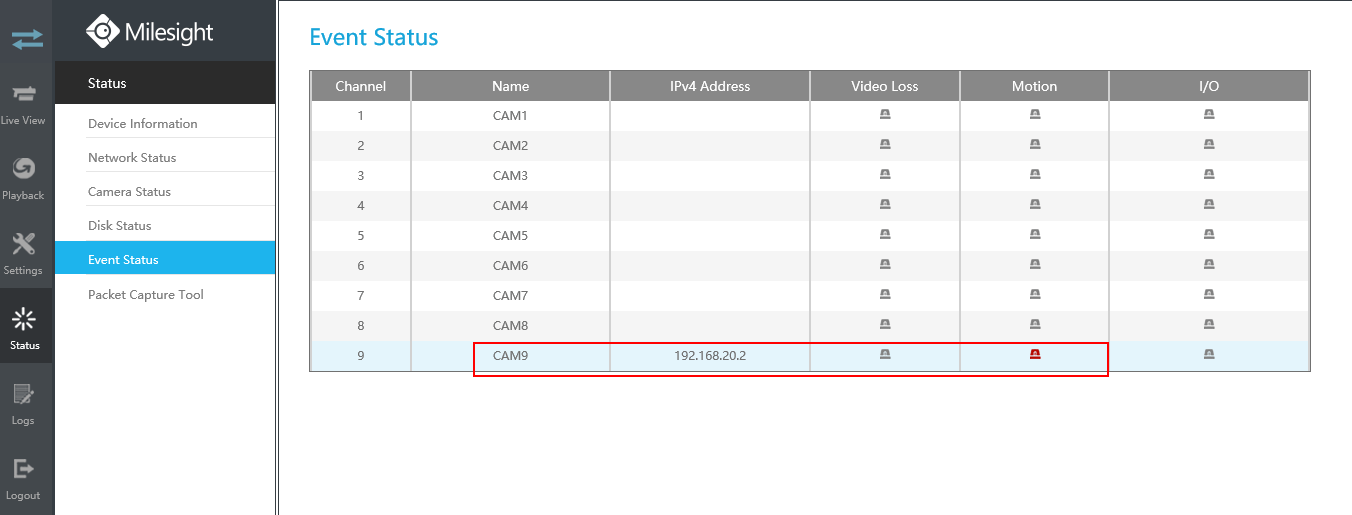

Step4: Check settings. Log in “Status”→“Event Status”, when something moves in the detected region, we will see the “” changing to “”.

2) Way two--enable the motion detection via IP cameras

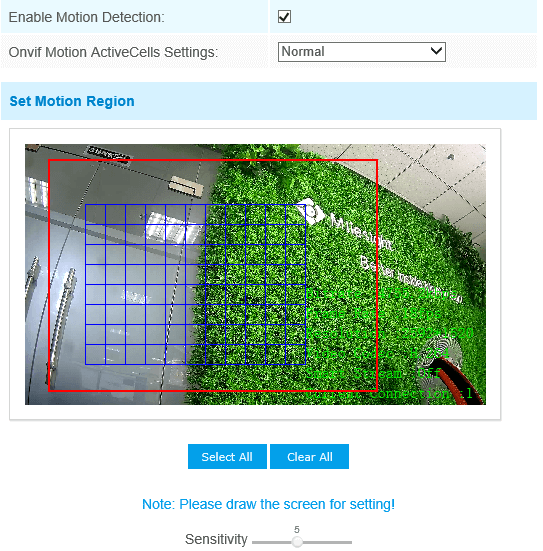

Step1: Log in web, and go to “Advanced Settings”→“Alarm”. Tick “Enable Motion Detection”.

Step2: Set the Motion Region and choose the sensitivity.

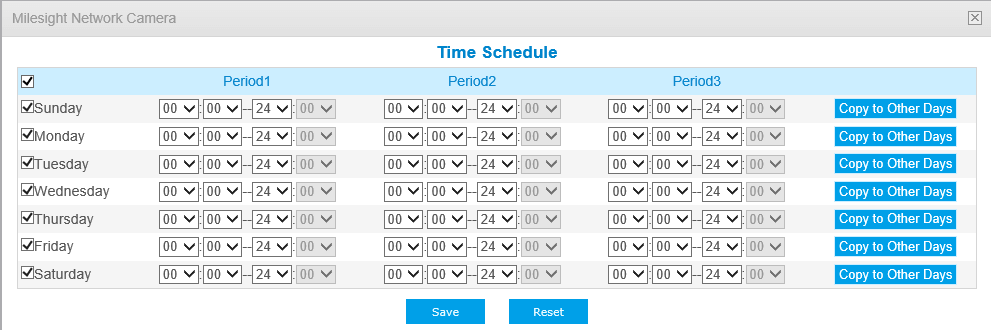

Step3: Set the schedule for motion detection.

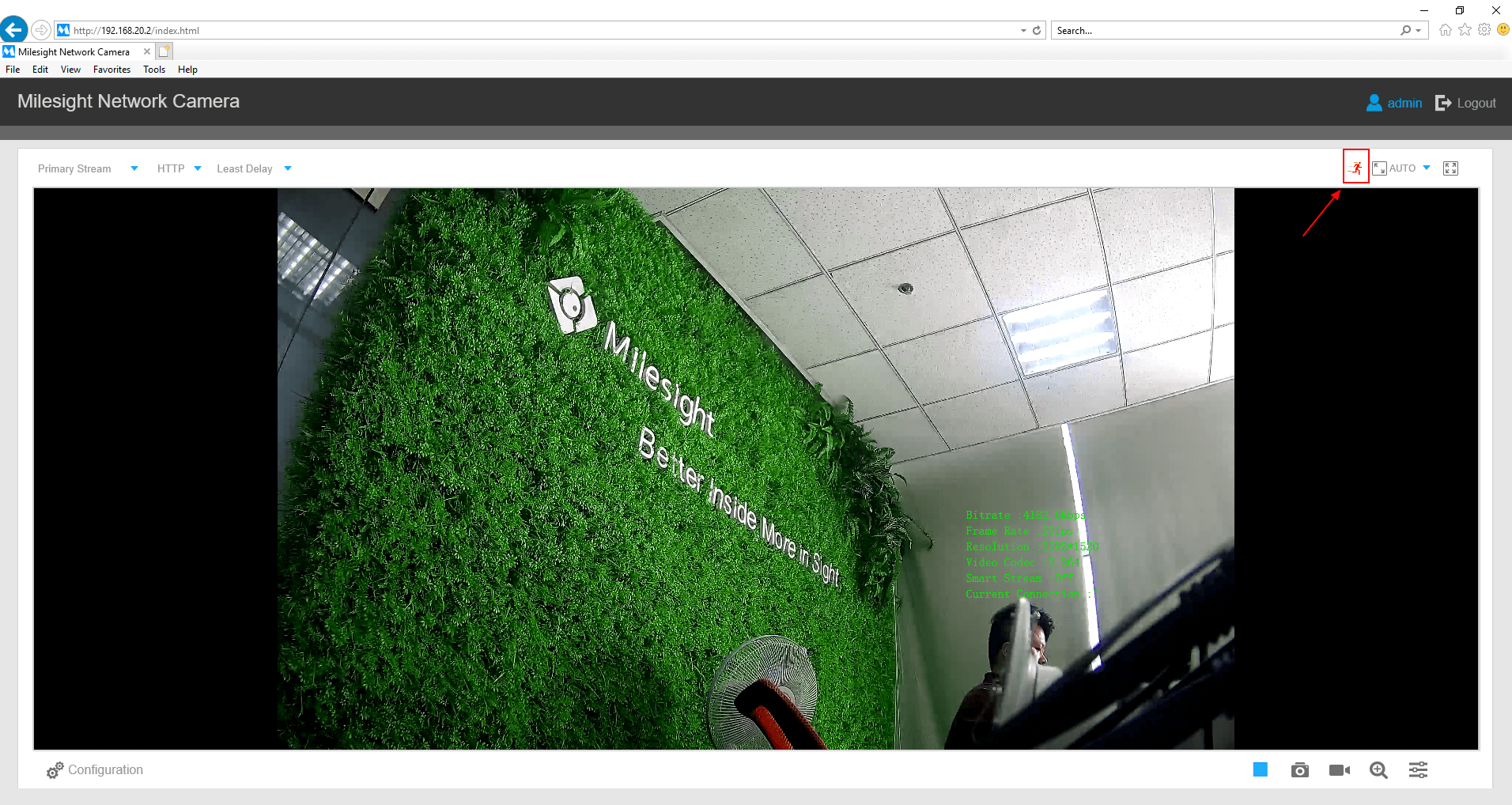

Step4: Check settings. After setting motion detection successfully, you will see the warming red spot on the live video page. And when you log into NVR, you will see that the NVR updates its parameters with IP cameras automatically.

2. Recording Setting for Motion Detection (based on 1.)

After finishing 1., you can set recording for motion detection.

1) Local monitor setting of recording

Step2: Go to “Main Menu”→“Record”→“Record Schedule”, draw the time table to set the record schedule for motion detection, like the picture shown below.

2) Web interface setting of recording

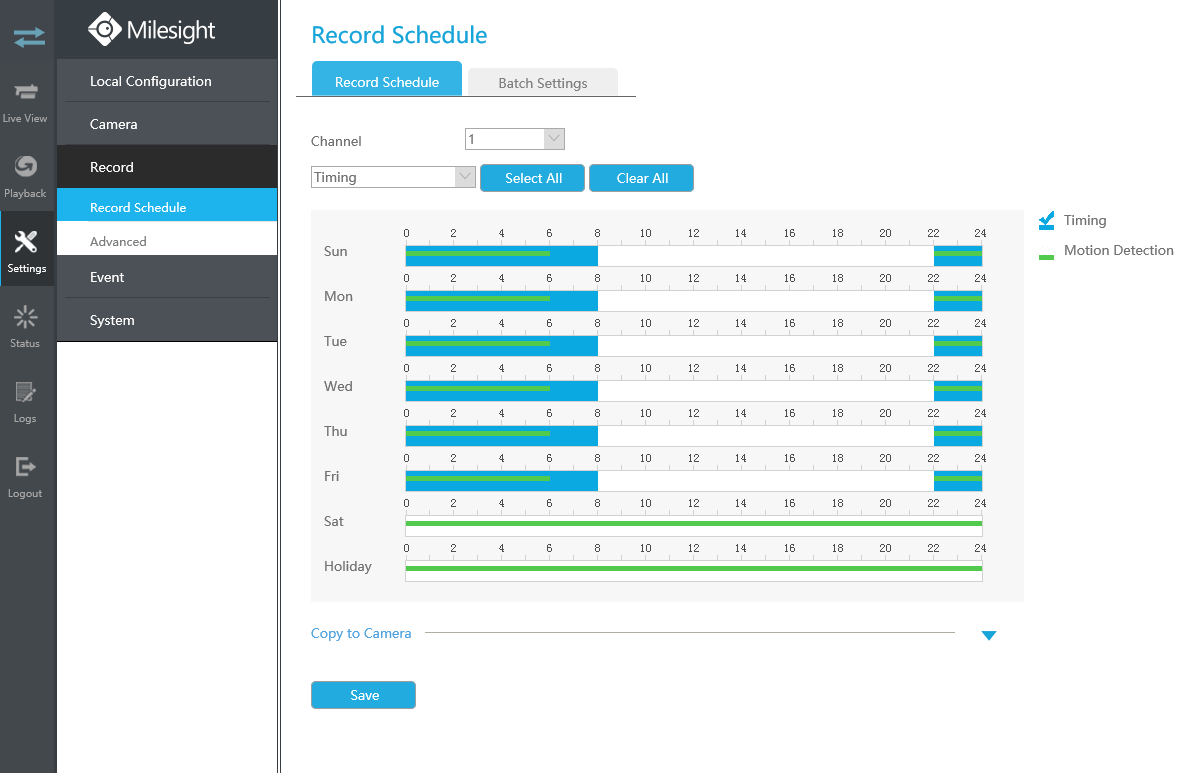

Go to Settings → Video Record → Record Schedule, edit the time table to set the record schedule for motion detection, like the picture shown below. Click Motion Detection within the Event table, and the cursor will move to Motion detection. Then you can select a desired time slot to enable recording when motion detection is triggered. It is worth  mentioning that the color of time bar is based on the event you set. As for the other event settings for record schedule, please refer to Milesight_NVR_User_Manual.

3. Other Alarm Actions for Motion Detection (based on 1.)

After finishing 1., besides recording, there are other alarm actions for motion detection, like E-mail Linkage, Audible Warming and Alarm Output.

1) Local monitor setting of other alarm actions

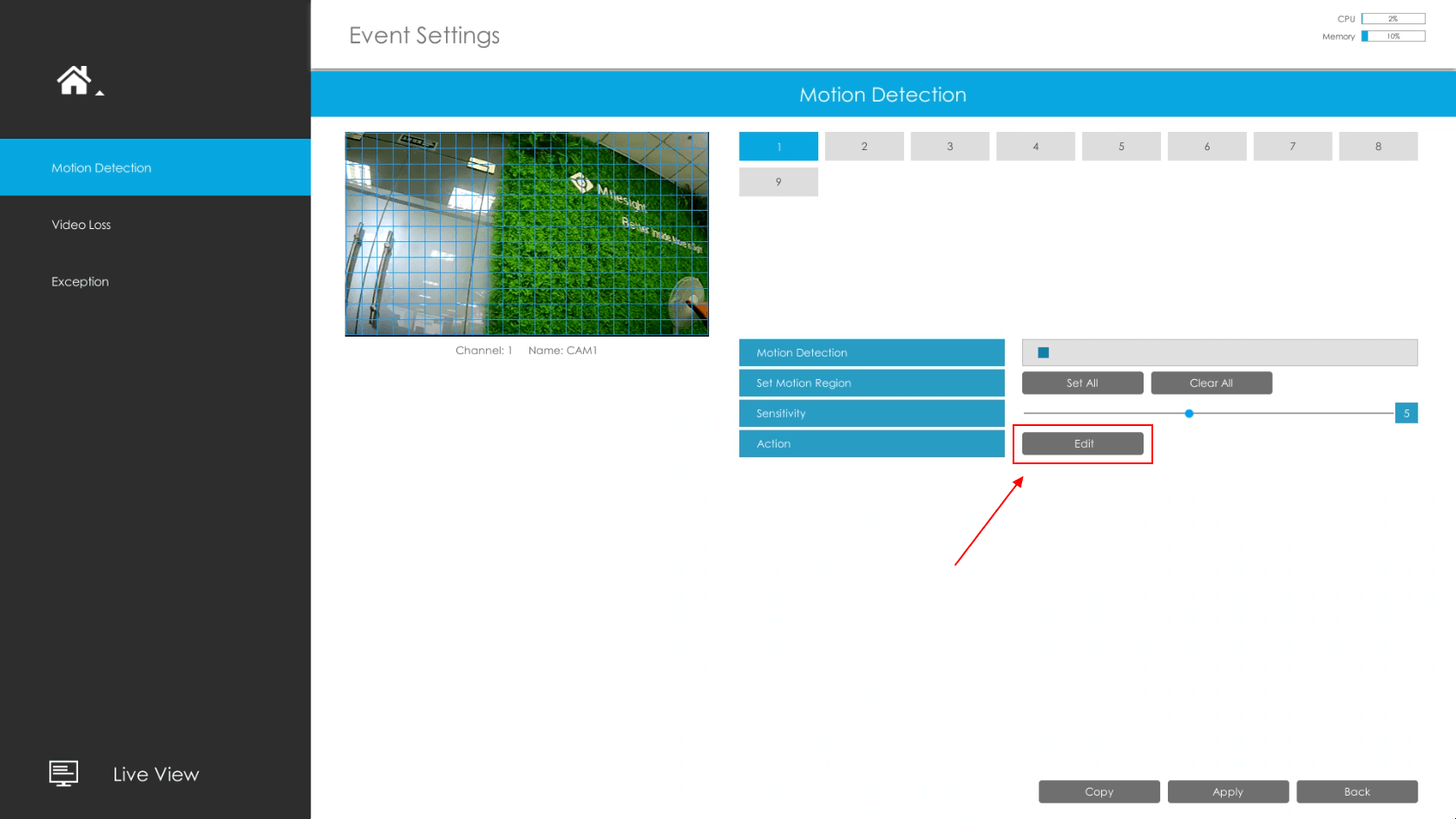

Step1: Log in NVR local monitor, click “Event”→“Motion Detection”→“Edit”

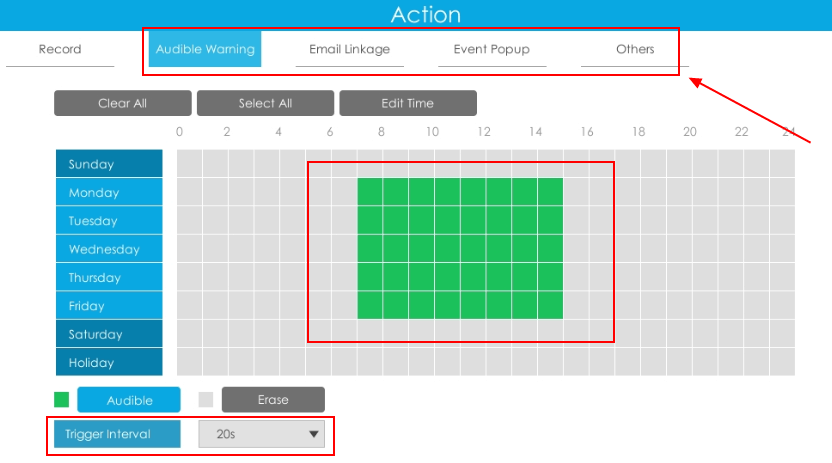

Step2: Choose the effective time or draw the time table, select the alarm action and trigger interval.

2) Web interface setting of other alarm actions

Step1: Log in NVR Web, click “Settings”→“Event”→“Motion Detection”, click “Action”, edit the schedule time.(This time table is used for setting the work time of other alarm action, not for recording, do not mix them up)

Step2: Select other alarm actions and trigger interval.

————END————
