1. Choose Firmware

Note:

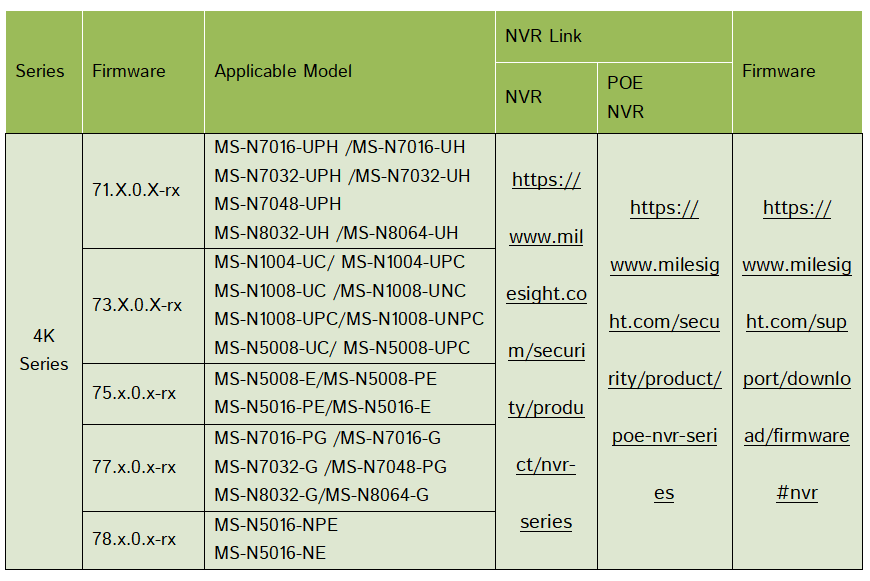

1) The second number of firmware stands for major version number, while the last two number means the minor version number. Take 71.7.0.5 for example, it means that the NVR’s major version is 7 and it’s minor version is 5.

2) You can use monitor to upgrade your NVR, or you can upgrade it via browser. If click the link to get the upgrade firmware failed, please copy the link to browser and open again.

3) If the firmware of your MS-N1009-UT begins with 61.X.X.X, or the SN begins with 12xxxxxxxxx, then use the 61.X.X.X.

If your MS-M1009-UT firmware begins with 71.X.X.X, or the SN begins with 13xxxxxxxxxx, then use the 72.X.X.X.

2. Steps for Monitor

Step1: Enter upgrade menu by clicking “Main Menu”→“System Settings”→“Maintenance”→“Local Upgrade”.

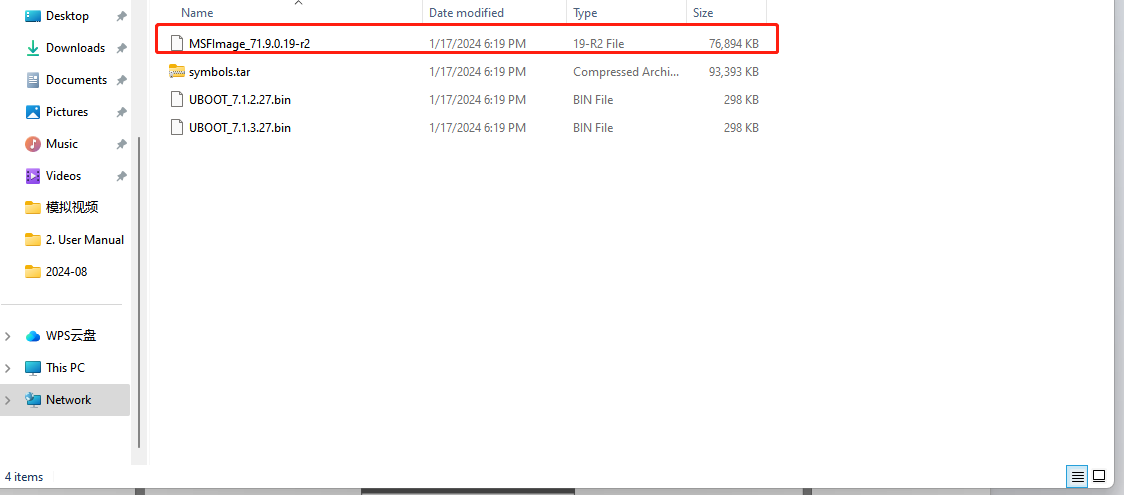

Step2: Click ”Browse” button to search for files on your USB device and

select the corresponding firmware file.

Step3: Click “Upgrade” button to confirm the upgrade.

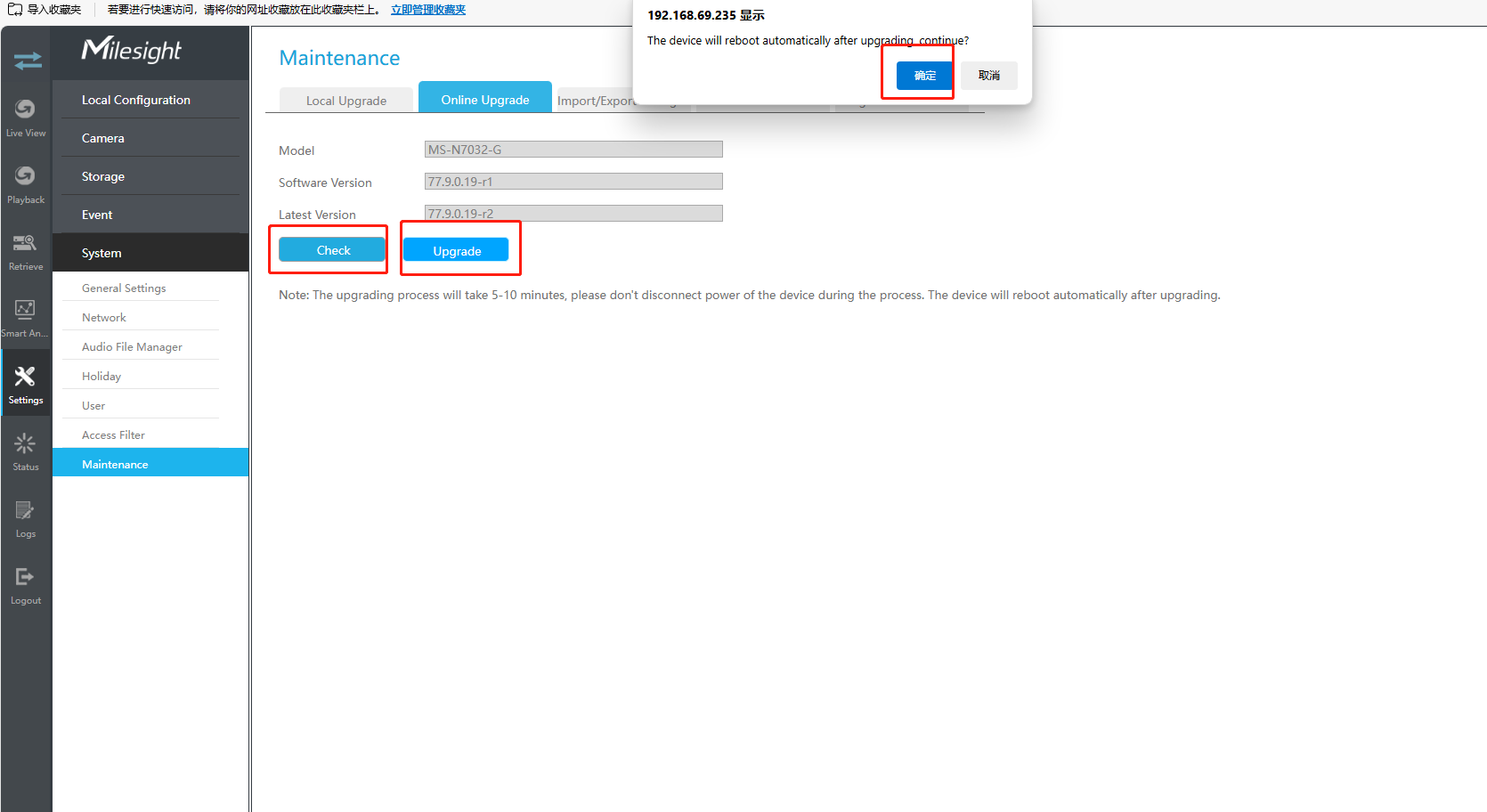

Step4: You can also click “Online Upgrade”, and click “Check” button to check the latest firmware version, then you can click “Upgrade” button to upgrade your NVR to the latest firmware version directly.

Note:

The upgrading process will take 5-10 minutes, please don’t disconnect power of the device during the process. The device will reboot automatically after upgrading.

3. Steps for WEB

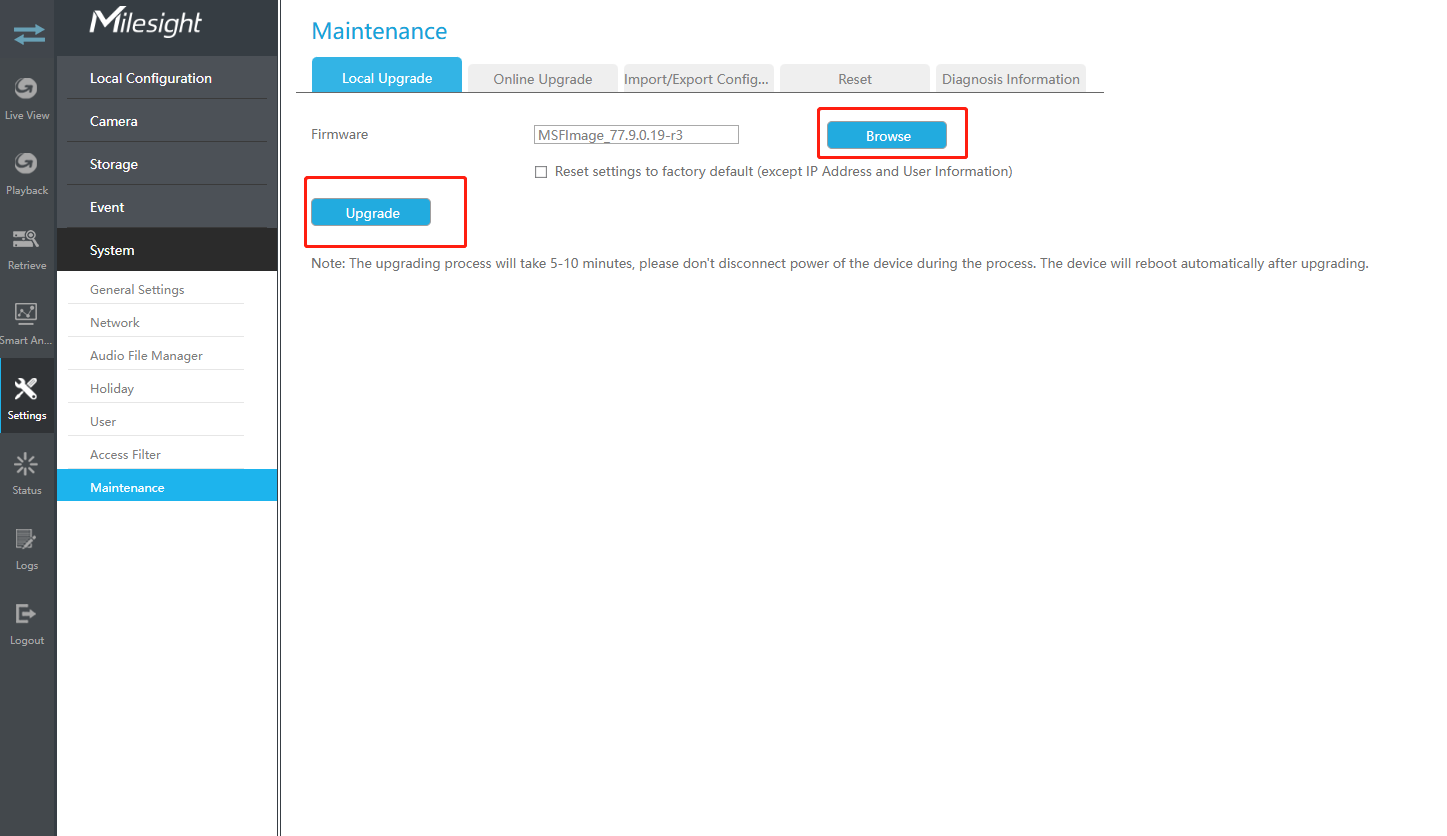

Step1: “Settings”→“System”→“Maintenance”→“Local Upgrade”.

Step2: Click “Browse” and find the position where you downloaded

Note:

Remember to check the model, use the corresponding firmware for your model

Step3: After choosing the corresponding firmware, click “Upgrade” button to confirm the upgrade.

Note:

The upgrading process will take 5-10 minutes, please don’t disconnect power of the device during the process. The device will reboot automatically after upgrading.
