1. What is New Firmware ?

The new firmware will be used from 7X.9.0.X, which makes the NVR experience faster, more responsive, more stable and more delightful. And lots of optimization are based on it.

2. Disk Settings

Ensure your NVR has been installed and the HDD has been initialized.

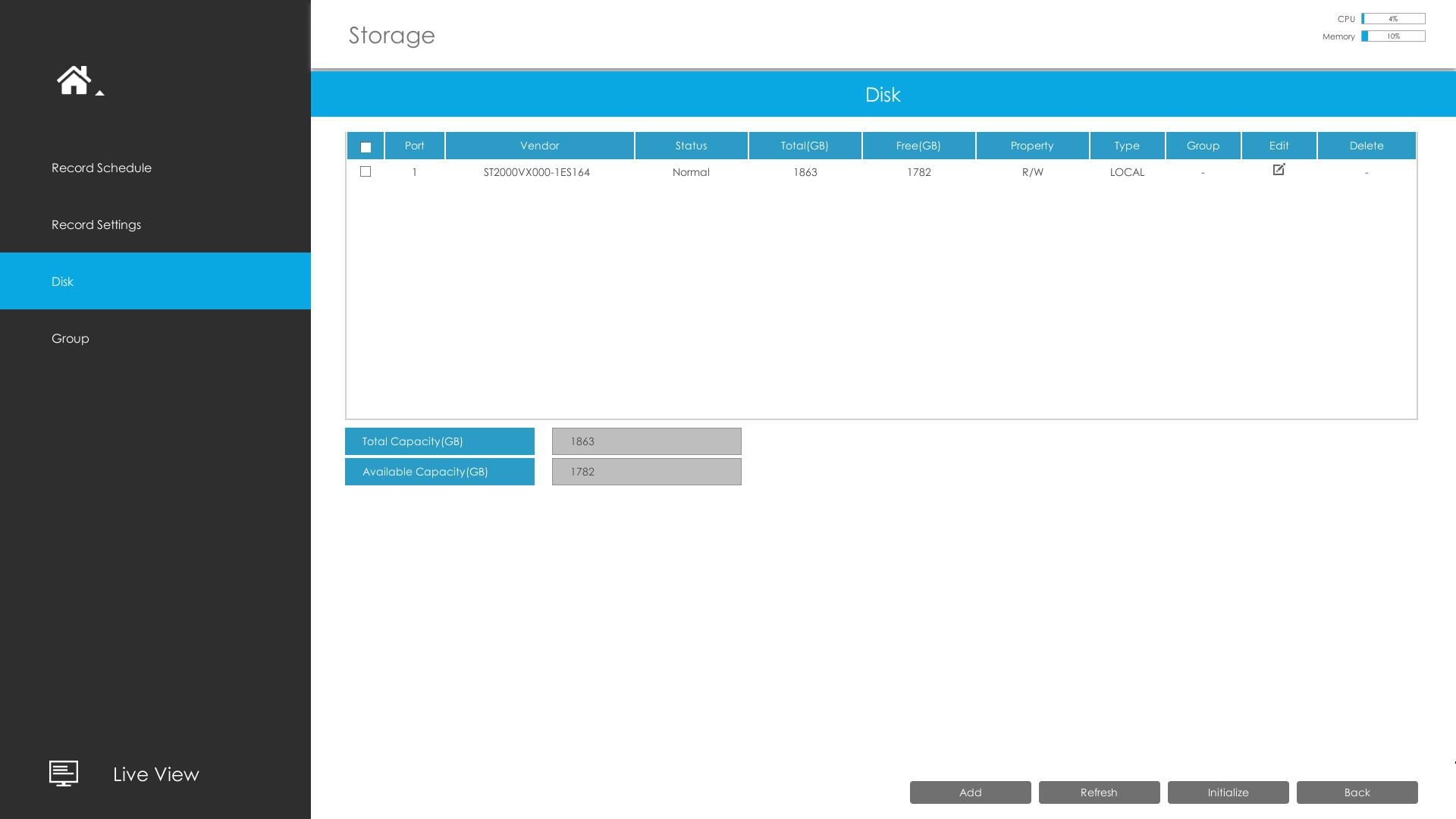

Please check it on ‘Storage’ -> ‘Disk Management’ interface. When the HDD is first installed on the NVR, you need to click ‘Initialize’ to initialize the HDD. When the status shows ‘Normal’, you can start recording settings.

3. Continuous Record Settings

If you want to configure continuous record, you just need to set the schedule in ‘Video Record’ interface, you can configure on the monitor or on the web.

Please refer to the following steps.


(1) Configure on monitor:

a. Select ‘Storage’→‘Record schedule’.

b. Select channel and click ‘Continuous’ button.

c. Drag a square in the time table to set record effective time. It is convenient for you to set or clear all corresponding schedule by clicking "Select All" or "Clear All".

Continuous Record Settings

Or you can click "Edit" to edit schedule. Select Day, Record Type and Time to finish editing.

Continuous Record Settings

Note:

If you set continuous record here, there will be continuous recording by default. If the event is enabled at the

same time, the event recording will also be included in the continuous recording.


(2) Configure on web:

a. Select ‘Storage’→‘Record schedule’.

b. Select channel and click ‘Continuous’ button.

c. Set the record schedule. It is convenient for you to set or clear all schedule by clicking "Select All" or "Clear All".

Continuous Record Settings

After the configuration is complete, the NVR will start recording. You can directly refer to the step 5 and steps 6 to check the recording status and recording files.

Note:

If you set continuous record here, there will be continuous recording by default. If the event is enabled at the

same time, the event recording will also be included in the continuous recording.

4. Event Record Settings

If you want to configure event record, you just need to set the schedule in ‘Record schedule’ interface, then enable the event in ‘event’ interface.

Please refer to the following steps.

Step1. Record schedule settings

You can configure it on the monitor or on the web.

(1) Configure on monitor:

a. Select ‘Storage’→‘Record schedule’.

b. Select channel and set the record schedule.

You can drag a square in the time table to set record effective time. It is convenient for you to set or clear all corresponding schedule by clicking "Select All" or "Clear All".

Event Record Settings

Or you can click "Edit" to edit schedule. Select Day, Record Type and Time to finish editing.

Event Record Settings

Note:

①If you set event record here, no matter which type of evnet(including Motion Detection, Alarm, VCA and Smart Analysis) you enable, there will be event recording without continuous recording during this time.

②If you set Motion Detection/Alarm/VCA/Smart Analysis record here, only when you enable the corresponding event, will there be a corresponding Motion Detection/Alarm/VCA/Smart Analysis recording without continuous recording during this time.


(2) Configure on web:

a. Select ‘Storage’→‘Record schedule’.

b. Select channel and then set the record schedule. It is convenient for you to set or clear all schedule by clicking "Select All" or "Clear All".

Event Record Settings

Note:

①If you set event record here, no matter which type of evnet(including Motion Detection, Alarm, VCA and Smart Analysis) you enable, there will be event recording without continuous recording during this time.

②If you set Motion Detection/Alarm/VCA/Smart Analysis record here, only when you enable the corresponding event, will there be a corresponding Motion Detection/Alarm/VCA/Smart Analysis recording without continuous recording during this time.

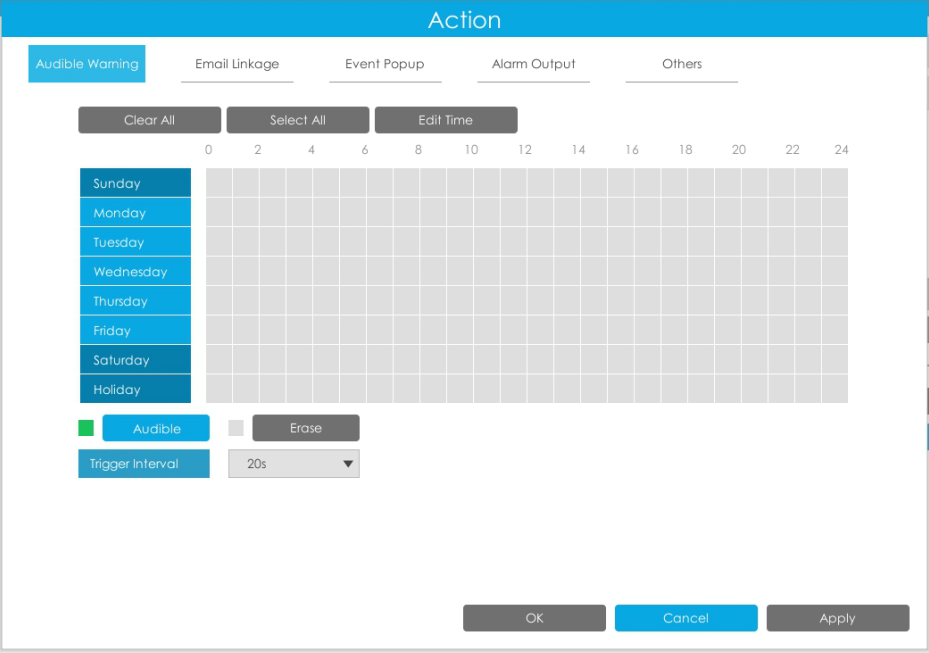

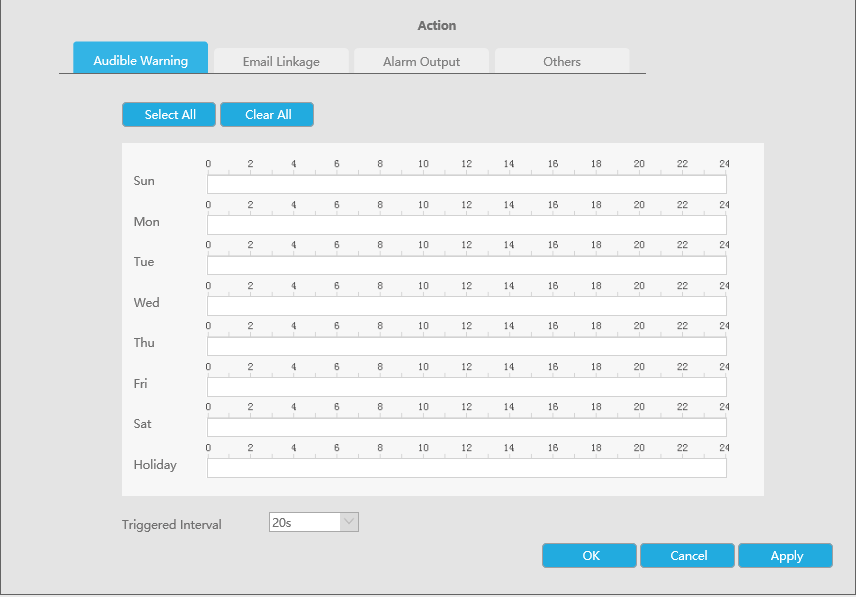

Step2. Alarm action settings

You can configure it on the monitor or on the web, the steps are the same, here is an example of configuring on the monitor.

Motion Detection

①Select ‘Event’à‘Motion Detection’.

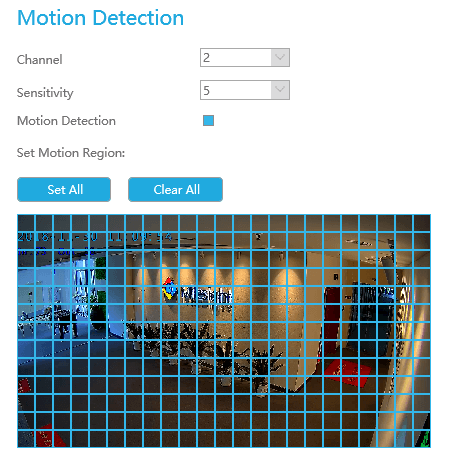

②Select channel , Sensitivity and click  to enable Motion Detection. Set the area for triggering motion detection.

Take ‘Motion Detection’ as an example, there are two ways to configure.

Event Record Settings

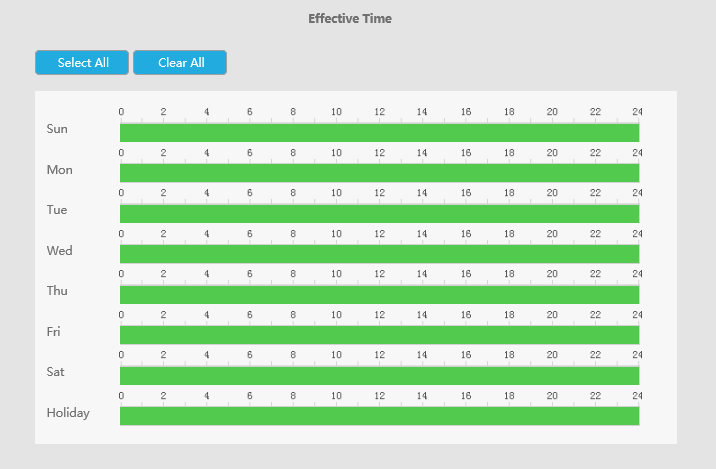

③Set Effective Time of motion detection by clicking "Edit"(Effective Time). As long as this schedule is enabled, the NVR can receive alarms from the camera side. If you want to customize the time that the NVR receives alarms from the camera side, you can manually edit Effective Time.

Event Record Settings

Note:

Effective Time is enabled by default. So usually in this step you just need to enable the event and set the area and sensitivity, no need to set additional effective time.

Smart Event(Take ‘Region Entrance’ as an example):

①Select ‘Event’à‘Smart Event’à‘Region Entrance’.

②Select channel and click  to enable Region Entrance. Set the area for triggering Region Entrance.


③Set Effective Time of Region Entrance by clicking

As long as this schedule is enabled, the NVR can receive alarms from the camera side. If you want to customize the time that the NVR receives alarms from the camera side, you can manually edit Effective Time.

Note:

Effective Time is enabled by default. So usually in this step you just need to enable the event and set the area and sensitivity, no need to set additional effective time.



After the configuration is complete, the NVR will start recording. You can directly refer to the step 5 and steps 6 to check the recording status and recording files.

5. Check the recording status

After the configuration is complete, you can check the recording status on Live View interface and Status interface.

(1) Check on monitor:

① Check on Live View interface

If there is an icon as first one displayed in live view, it indicates that the current channel is recording.

If there is an icon as second one displayed in live view, it indicates motion detection alarm.

If there is an icon as third one displayed in live view, it indicates smart event alarm and alarm input.

Check the recording status

② Check on Status interface

Go to ‘Status’ -> ‘Camera Status’ interface, if the current channel is recording, it will show “On” on record bar.

Check the recording status

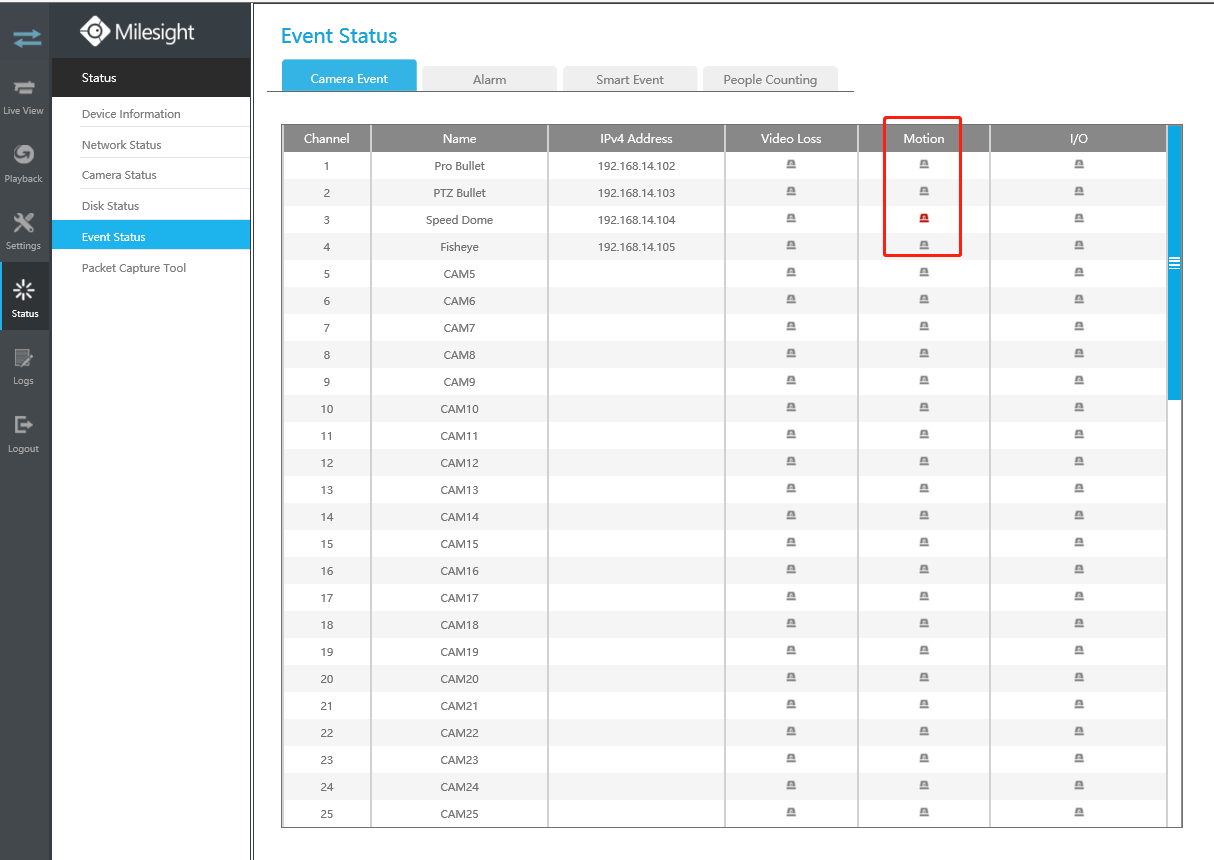

Go to ‘Status’ -> ‘Event Status’ -> ‘Camera Event’ / ‘Alarm’/ ‘Smart Event’ interface, you can check Camera Event here, including Motion Detection, Smart Event and Alarm Input. The icon will turn into red when the corresponding alarm is triggered.

Check the recording status

(2) Check on web:

① Check on Live View interface

If there is an icon as below displayed in live view, it indicates motion detection alarm.

Check the recording status

② Check on Status interface

Go to ‘Status’ -> ‘Camera Status’ interface, if the current channel is recording, it will show “On” on record bar.

Check the recording status

Go to ‘Status’ -> ‘Event Status’ -> ‘Camera Event’ / ‘Alarm’/ ‘Smart Event’ interface, you can check Camera Event here, including Motion Detection, Smart Event and Alarm Input. The icon will turn into red when the corresponding alarm is triggered.



6. Check recording files on playback interface

Select ‘Menu’→‘Playback’ interface, there are two ways to check recording files.

(1) Playback on monitor:

General Playback:

Check General Playback

a. Select General Playback as playback type.

Check General Playback

b. Select Stream Type and channels you want to do playback.

Check General Playback

c. Select date, the day with blue and red letters means that there are record files.

Check General Playback

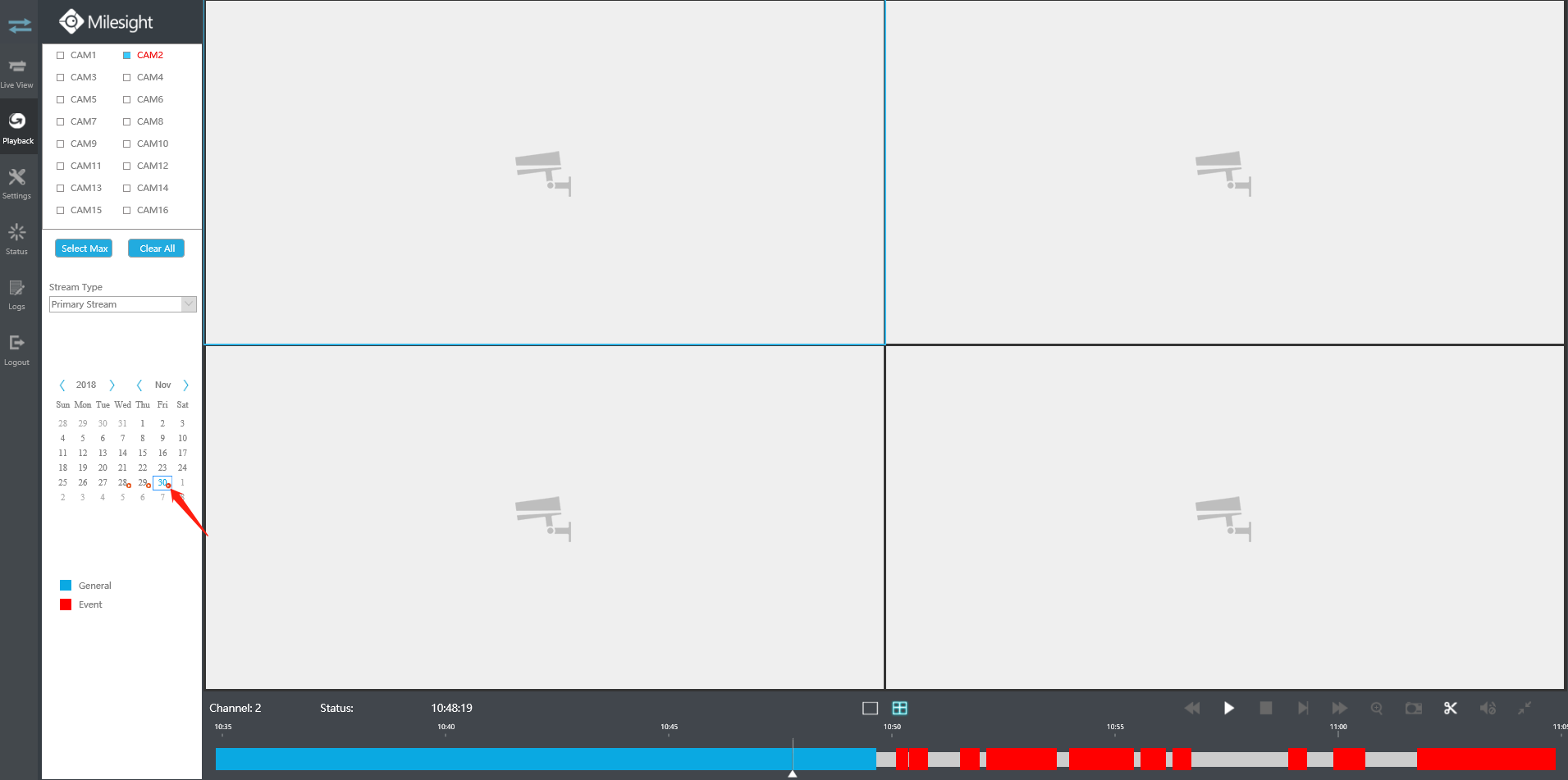

d. Every channel will get their own file bar.Currently there will only display continuous recording with blue file bar on the general playback interface as shown below.

Check General Playback

Note:

If you want to check event recording, please check [Event Playback] as shown below.

Event Playback:

Check Event Playback

a. Select Event Playback as playback type.

Check Event Playback

b. Select Stream Type and channels you want to do playback.

Check Event Playback

c. Select Event Type.

Check Event Playback

d. Select Start Time and End Time, click "Search" to search the record.

Check Event Playback

e. Click "Search", It would list all videos on the right side of the playback interface.

Check Event Playback

f. Set pre playback and post playback time, then play the video by clicking "Play" button.

Check Event Playback

There will display event recording with red file bar on the event playback interface as shown below.

Check Event Playback

(2) Playback on web:

a. Select Stream Type and channels you want to playback.

b. Select date, only the day with a red mark means that there are recorded files. Click "Play" button to play.

c. The tool bar can display continuous and multi-event record. It shows that in this record period what kind of event has happened. The symbolic meaning of each color is shown below:

Blue --- Continuous

Red --- Event, including Motion Detection, Alarm, Smart Event.

Colors of recording


————END————
