1. What is SIP

SIP (Session Initiation Protocol) is a signaling communication protocol, which is widely used for controlling multimedia communication sessions such as voice and video calls over Internet Protocol (IP) network. The protocol defines the message that are sent between peers, which govern establishment, termination and other essential elements of a call.

Figure 1  Communication Live View

Now the SIP machine can support the following call ways(Figure 2).


Figure 2  The Call Ways SIP Supports

2. How to Use SIP on Milesight Camera

So far, Milesight network cameras with compression H.264 are able to support SIP, for both primary stream and second stream. So please check the SIP Phone, and make sure that it supports H.264.

SIP Phone

Figure 3  SIP Phone

There are two ways to call a SIP phone:

1) Register on a Server

Take Yeastar S20 for example:

Step1:Please log in the web, and then create a new account for the camera. Input IP address into the browser till it turns to figure 4 interface, then input the account Username and Password to log in;

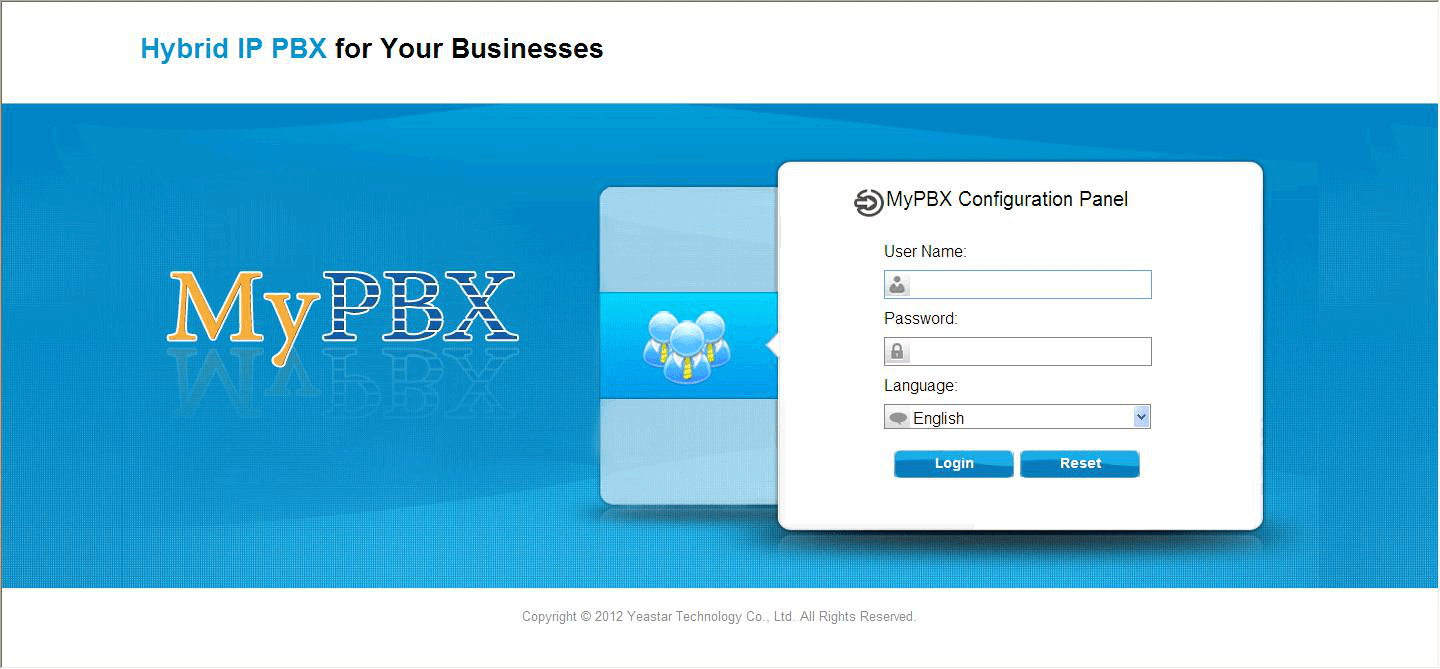

Figure 4  Yeastar S20

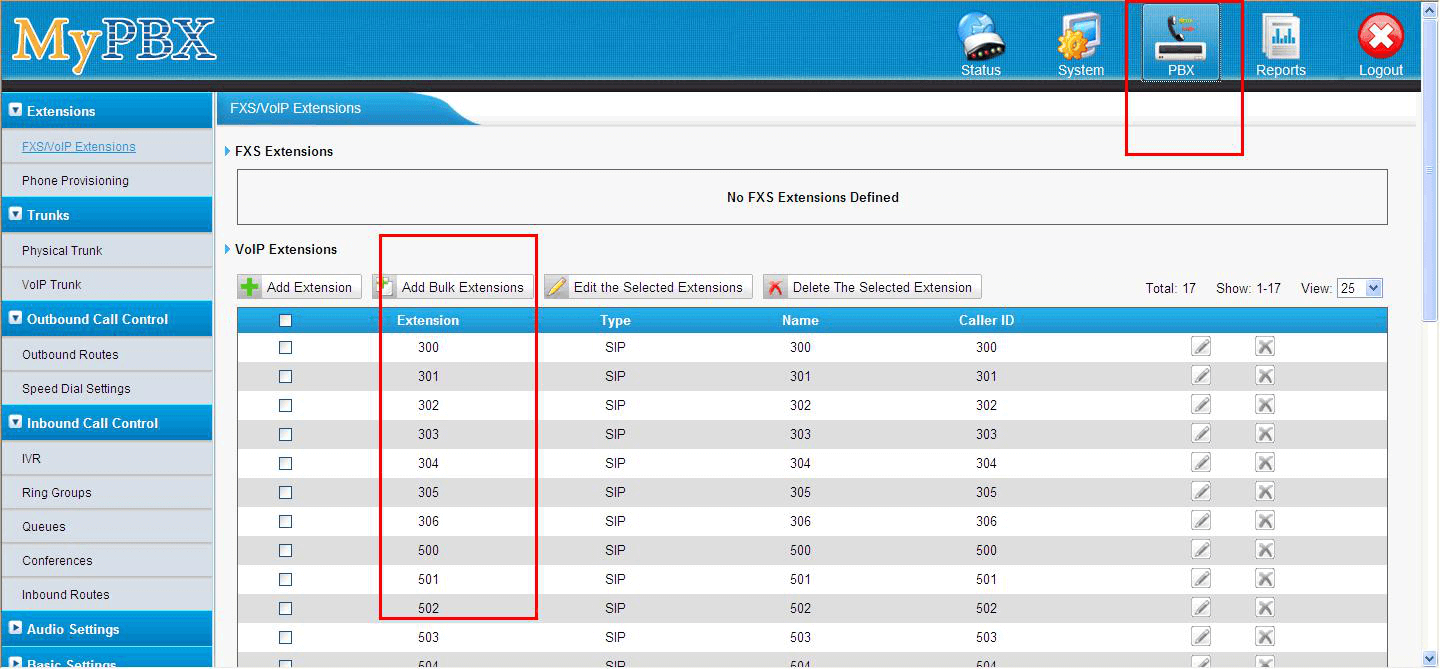

Step2:After Logged in, please go to the following interface by clicking on Settings. Then click on the Extensions option (figure 5);

Figure 5

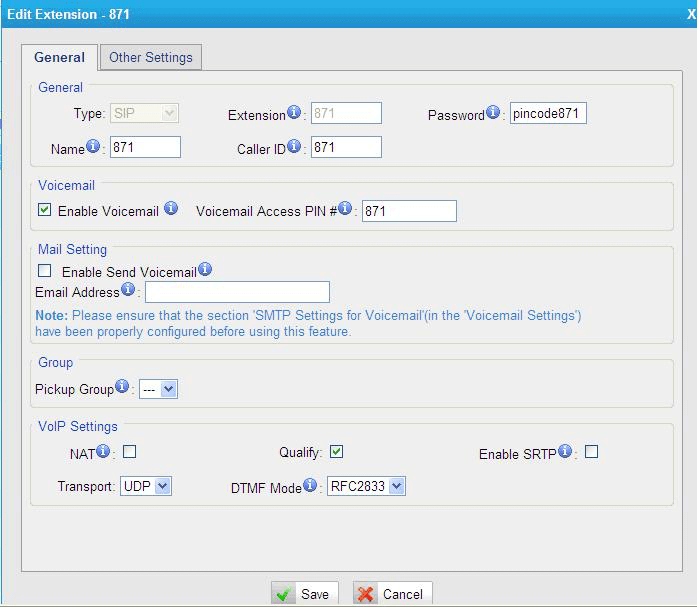

Step3:Choose to add a new extension by clicking the Add button or click the Bulk Add button to add in bulk and then complete basic setup (figure 6);

Figure 6  SIP Extension

Figure 7  SIP Extension

Step4:After completing the above steps, please back to Home page and go to the following interface by clicking on this icon (figure 8). Click on the PBX Monitor option for confirming whether the account is successfully registered(figure9);

                                  Figure 8

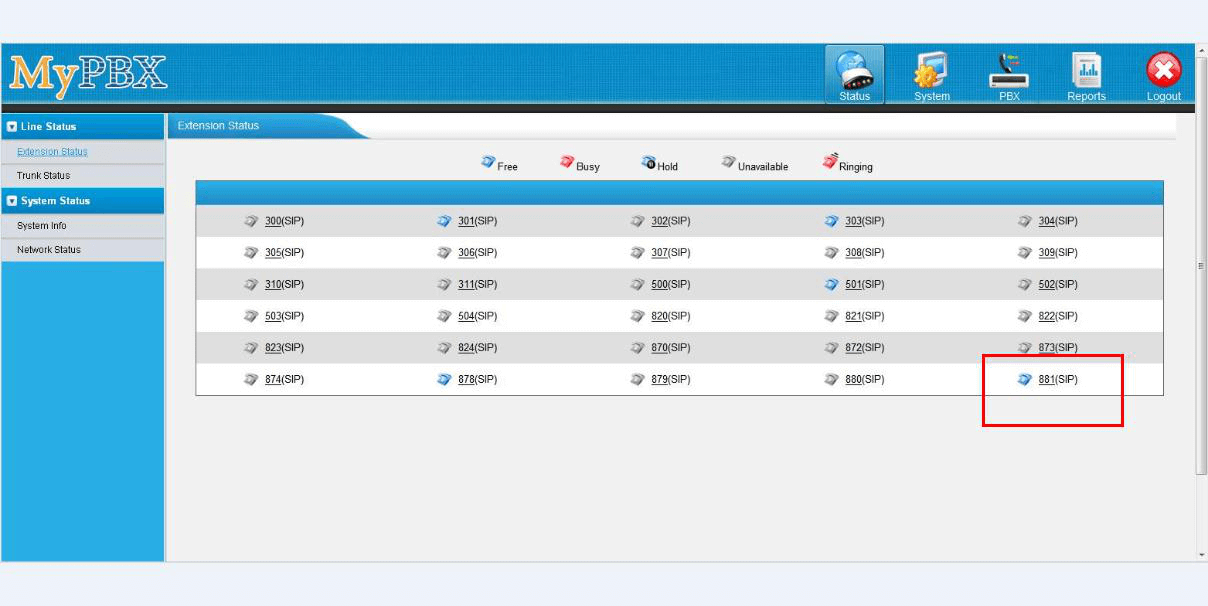

Step5: If the account is successfully registered, the phone icon will turn green and the IP and Port are shown in the last column.

Figure 10  Check Register Status

Step6: Enter the information of the account on SIP server. And if the information is correct, the status of SIP will turn to be Registered

Step7:Input your cameras IP and log in the web page via browser. Go to “Media”→ “Video”, choose the right stream you want to use for SIP function. Then set the Profile to Base ( the sip function only works in Base mode ),then click“Save”for saving your setting.

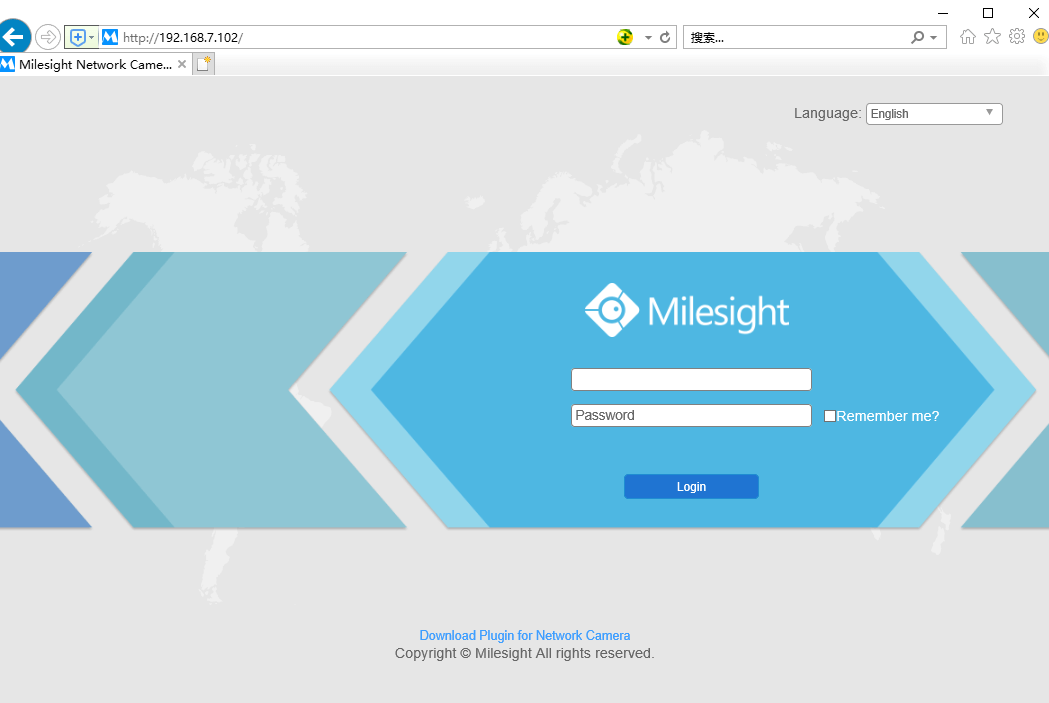

Figure 11  Log in Web Page

Figure 12  Set Profile Base

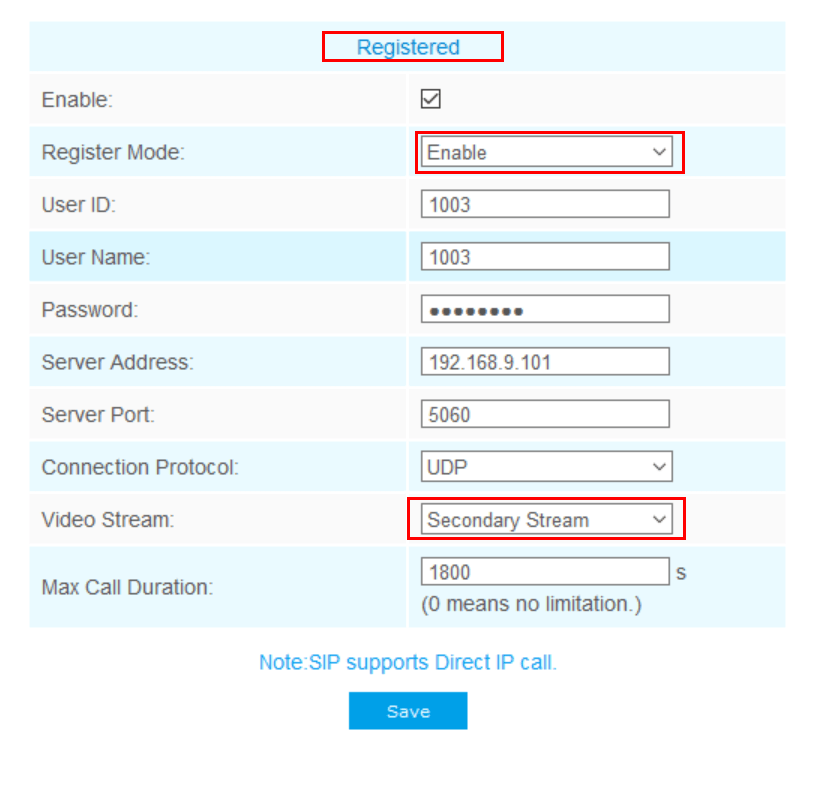

Step 8: Register an account for SIP devices through SIP server. Fill in the information set in Step 3, click submit to see the blue Registered on the status.

Figure 13 Register Mode

2) Call IP Directly

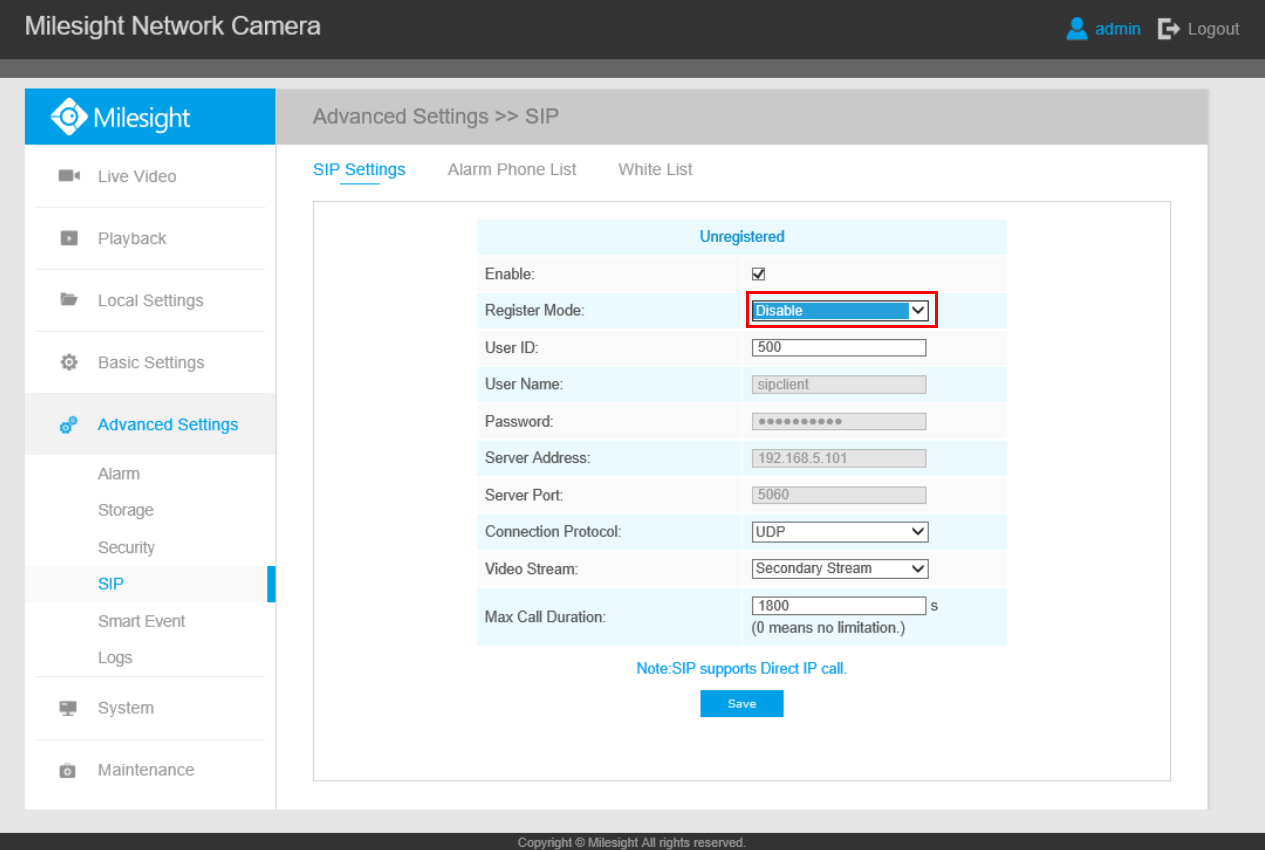

Choose Disable mode, then you can call SIP phone via dialing IP directly.

Figure 14  Call IP directly

3. Telephone Alarm Settings

There are two phone types available to set when alarm is triggered:

1) Phone Number

Step1:Go to “Network”→“Advanced”→“SIP”→“Alarm Phone Setting”, click “Add”  to choose “Phone Type”, input the number of SIP phone, and set alarm “Duration”, then click “Save”;

Telephone Alarm Settings

Figure 15  Add phone number

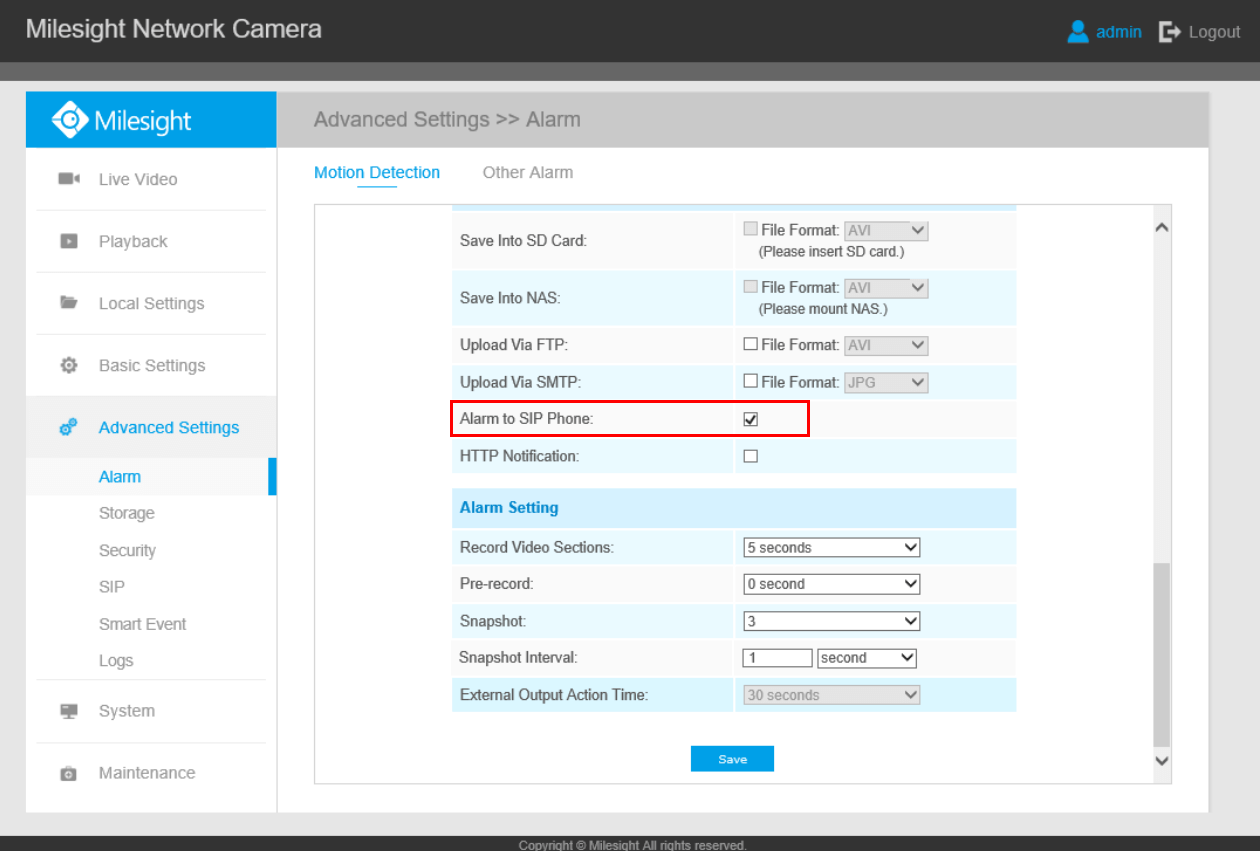

Step2: Go to Event”→“Basic Event, enable Motion Detection, choose Alarm to SIP Phone under the Alarm Action option, and click Save”;

Figure 16  Alarm to sip phone

Step3: When the alarm is triggered, the camera will call SIP Phone through dialing the phone number. At the same time, we can see video images on the SIP device ;

2) Direct IP Call

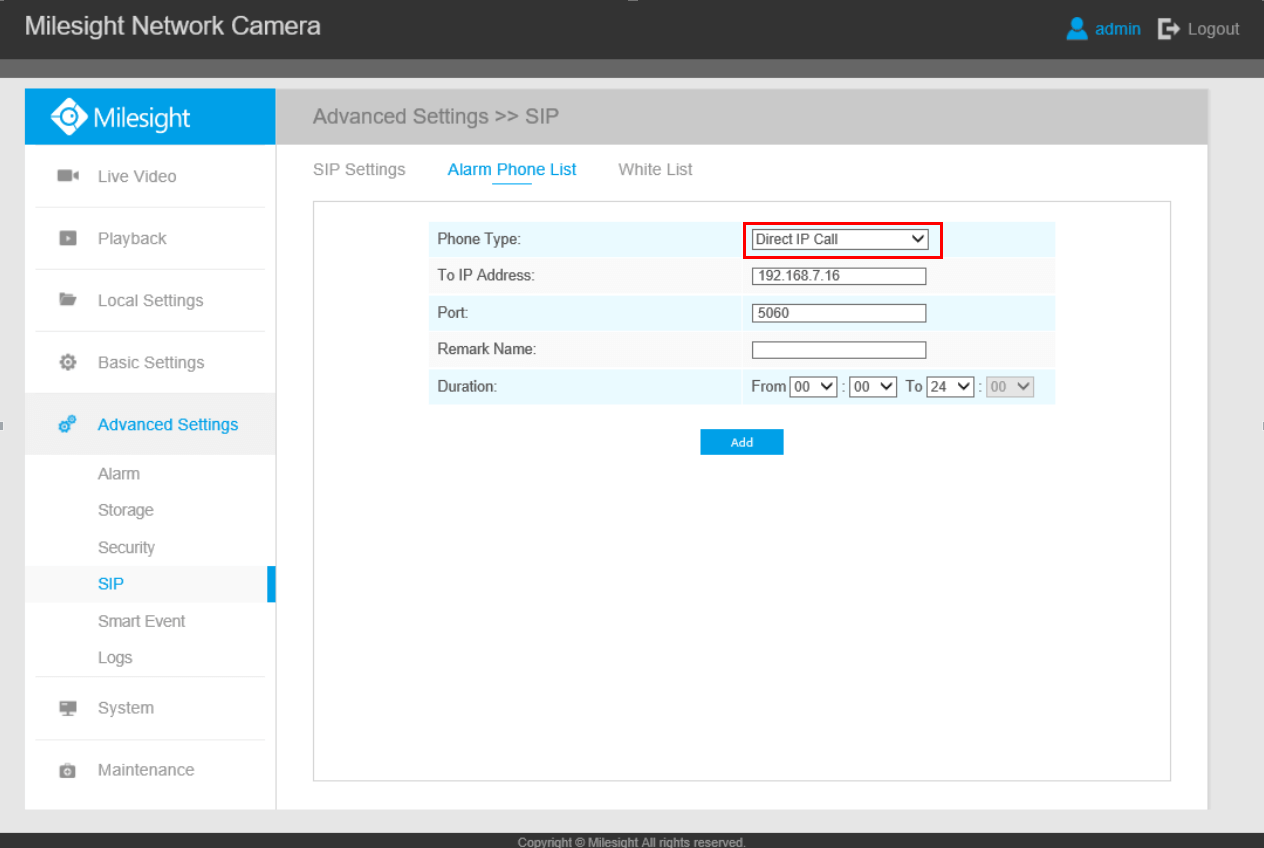

Step1: “SIP”→ “Alarm Phone List”-> “Phone Type”→ “Direct IP Call”;

Figure 17  Set IP call

Step2: When the alarm is triggered, the camera will call SIP Phone through IP directly. At the same time, we can see video images on the SIP device .


The camera and SIP Phone should be on the same network segment, making sure that they can ping each other first.
