Ⅰ. Introduction

The rapid development of security industry calls for the need of a more intelligent video monitoring. For the reason The rapid development of security industry calls for the need of a more intelligent video monitoring. For the reason that a massive amount of video is being recorded, but hardly ever being reviewed, it is ordinary to miss suspicious behaviors. To avoid such events and activities being missed, Milesight propounds intelligent Milesight Video Content Analysis(VCA). Embedded in network cameras, Milesight now has a complete VCA Solution, realizing 8 VCA functions via Network Cameras, NVR and CMS.

Ⅱ. What is Video Content Analysis?

Video Content Analysis(VCA), also referred to Intelligent Video Analysis (IVA), is the capability of automatically analyzing video to detect and determine temporal and spatial events. The algorithms can be implemented as software on general purpose machines or as hardware in specialized video processing units. It automatically performs an analysis of captured video, and automatically uses the resultant data. This technical capability is used in a wide range of fields including entertainment, health-care, retail, automotive, transport, home automation, safety and security.

Ⅲ. Milesight Video Content Analysis

Milesight VCA provides advanced video analysis for Milesight network cameras, NVR and CMS. It enhances the performance of network cameras through 10 detection modes, enabling the comprehensive surveillance function and quicker response of the whole VCA solution to different monitoring scenes. In addition, Milesight Network Cameras, NVR and CMS all support independent function settings for convenient user experience. The Milesight VCA solution ensures that video surveillance is more accurate and cost-effective.

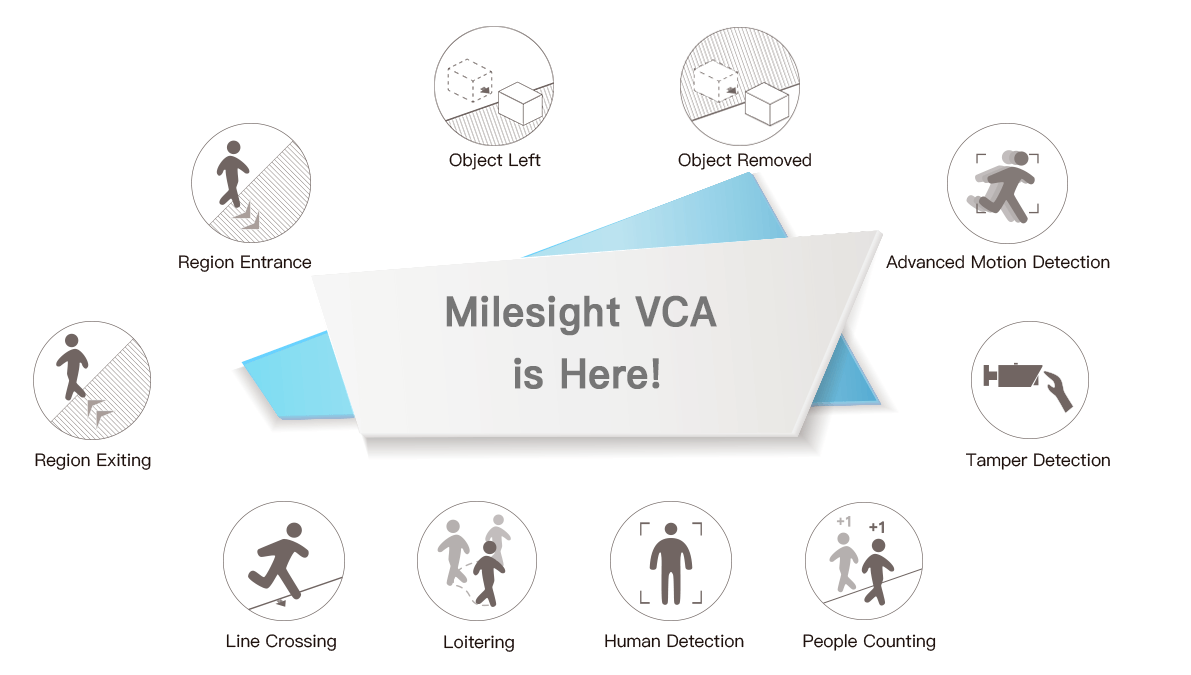

Figure 3-1  Milesight Video Content Analysis

Ⅳ. How to set VCA function with Milesight Network Cameras

· Region Entrance

1. What is Region Entrance

Region entrance helps to protect a special area from potential threat of suspicious person’s or object’s entrance. An alarm will be triggered when objects enter the selected regions by enabling region entrance.

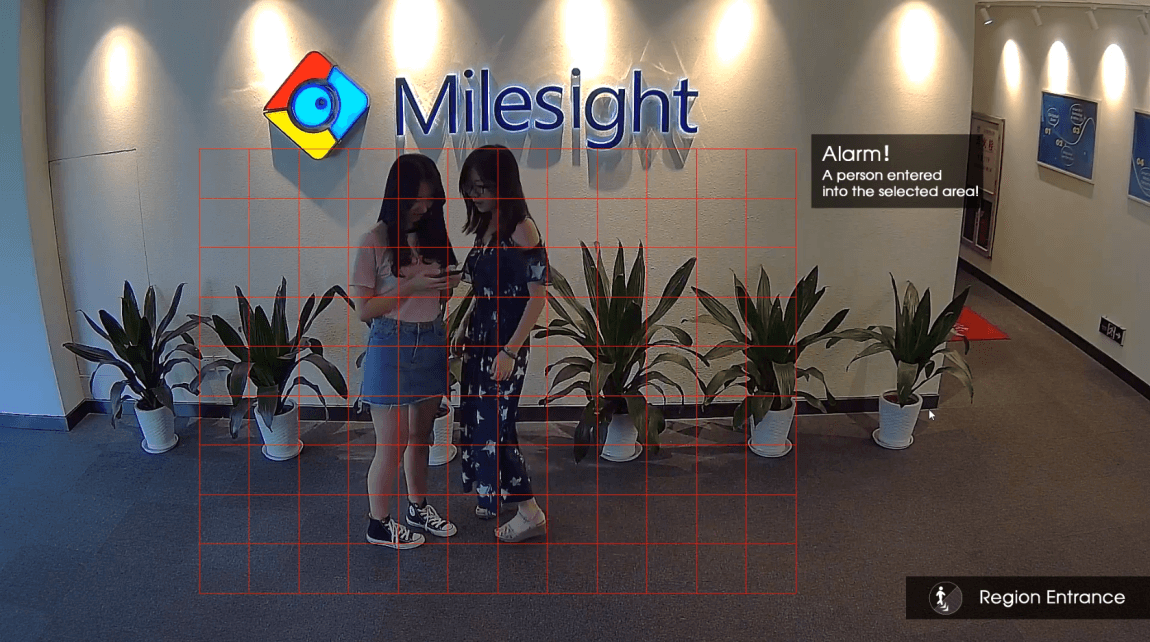

Figure 4-1  Region Entrance

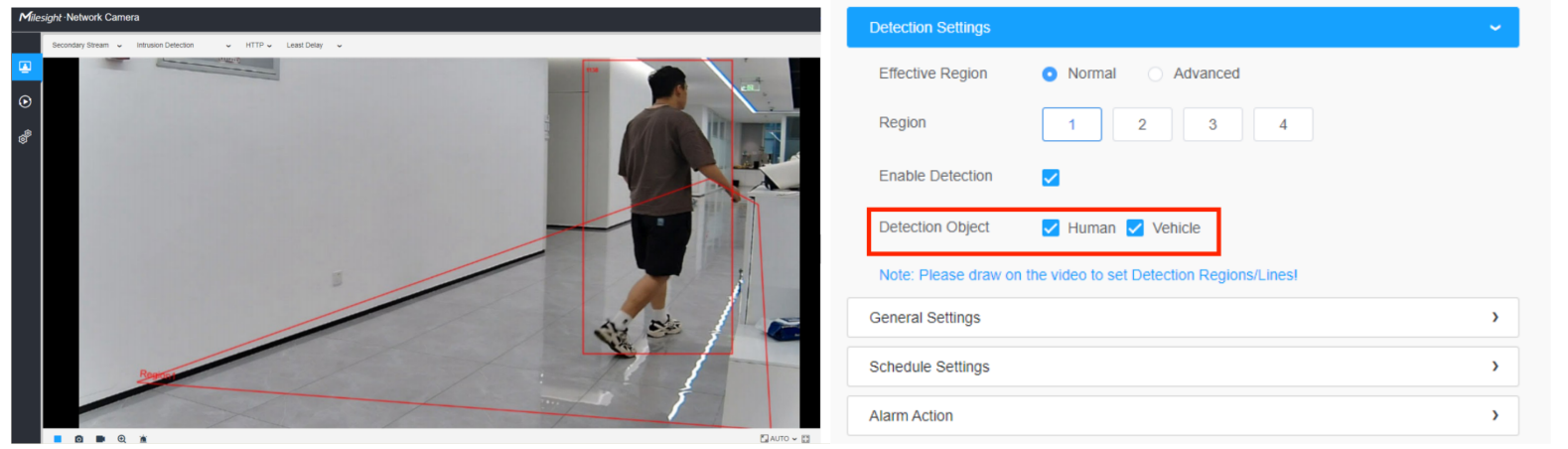

If you enable Detection Object(Human/Vehicle), the selected regions will display in“red”when the alarm is triggered.

Figure 4-2  Region Entrance Trigger

2. How to set Region Entrance with Milesight Network Cameras

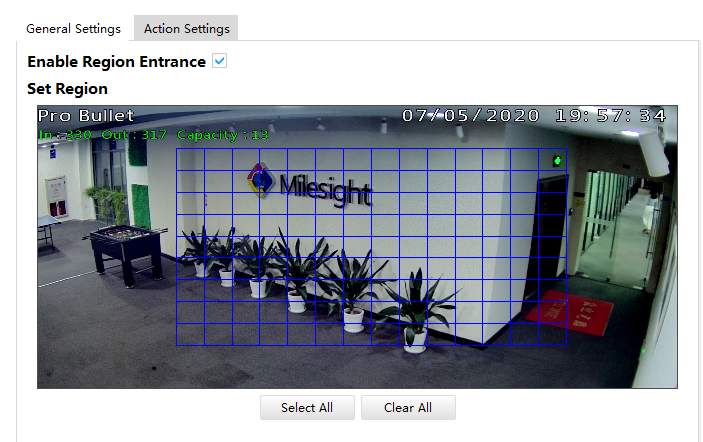

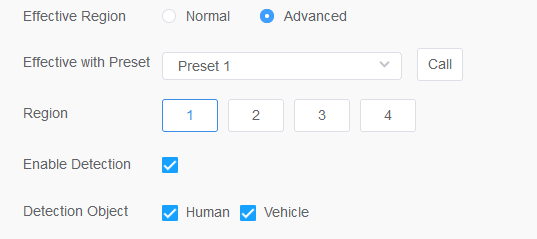

Step1: Enable region entrance detection and draw a region by clicking the mouse. Any object entering into the region will trigger an alarm. The “Object Size” can be set to define whether an object is big enough for triggering the alarm when enter into the selected region.

Figure 4-3  Region Entrance

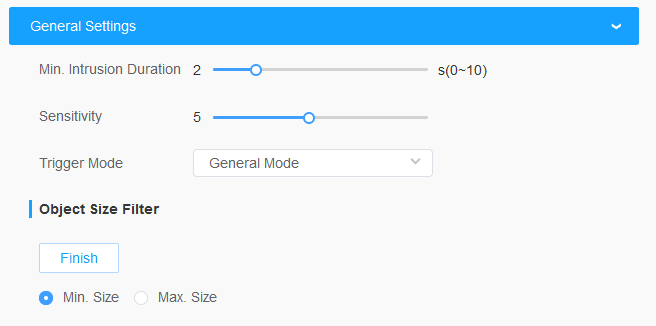

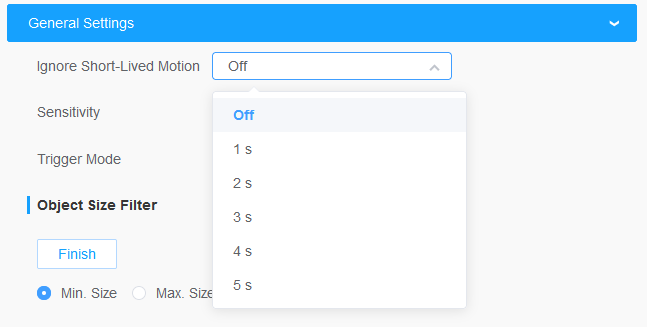

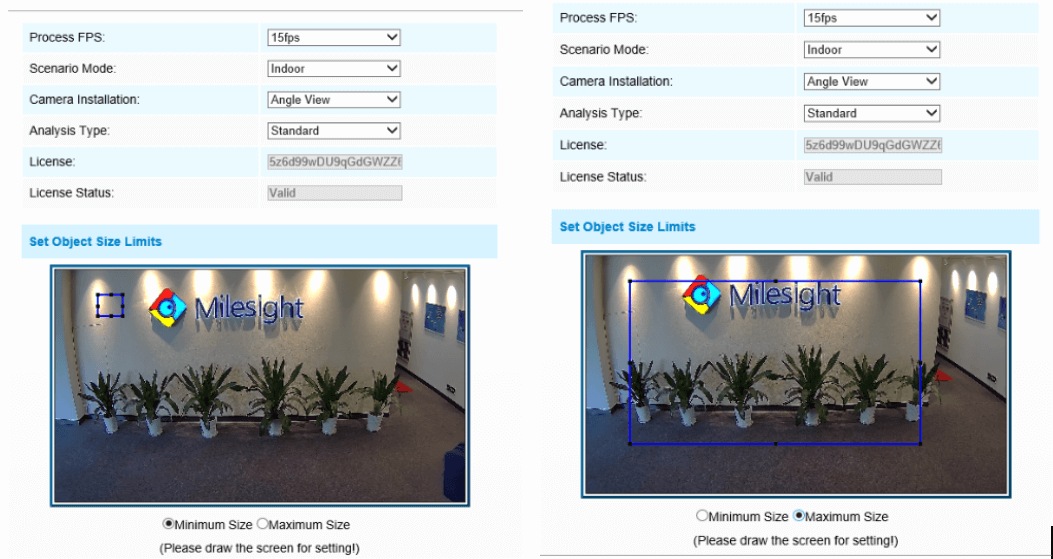

Step2:Set detecting sensitivity and object size limits. The “Object Size” can be set to define whether an object is big enough for triggering the alarm when enter into the selected region.

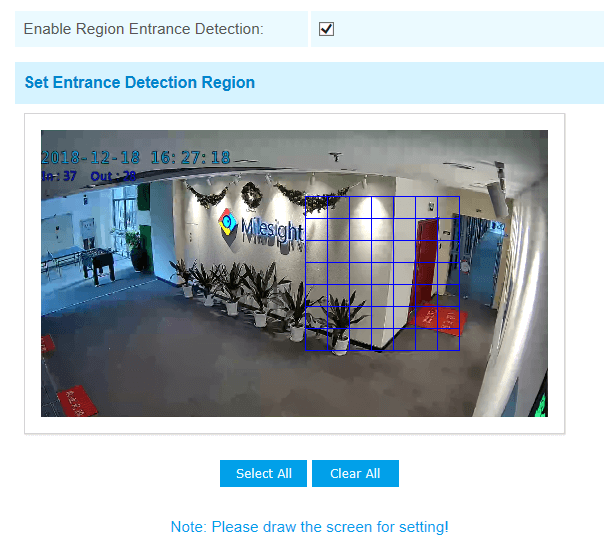

Step 3: Set entrance detection region;

Step4: Set detection schedule, you can set the schedule by checking “Edit” button. And then click [Save] or [Reset] after all done. You can also copy the settings to other channels.

Figure 4-4  Region Entrance General settings

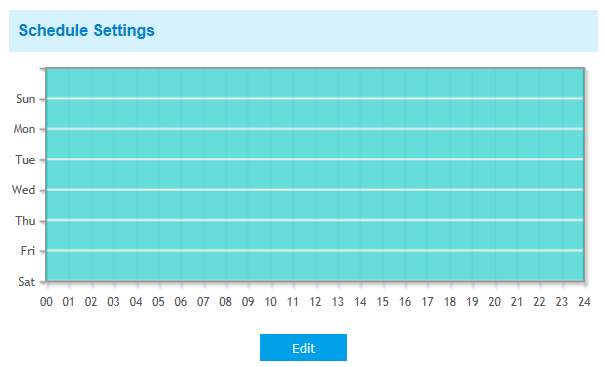

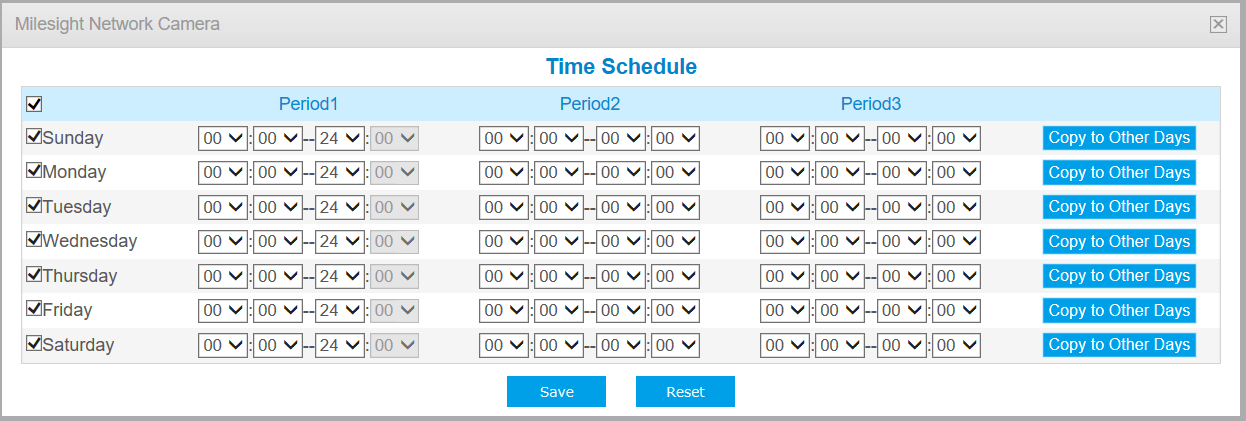

Step 4: Set detection schedule, you can set the schedule in the “Schedule Settings”.And

then click [Save] or [Reset] after all done. You can also copy the settings to other

channels.

Figure 4-5 Schedule Settings

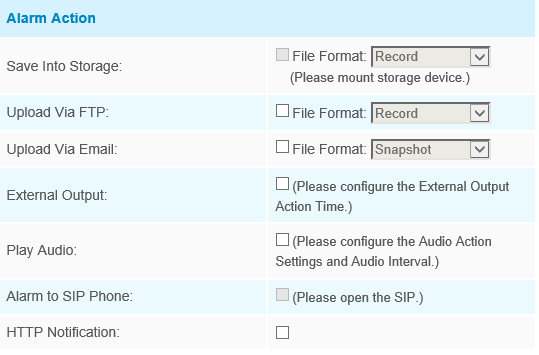

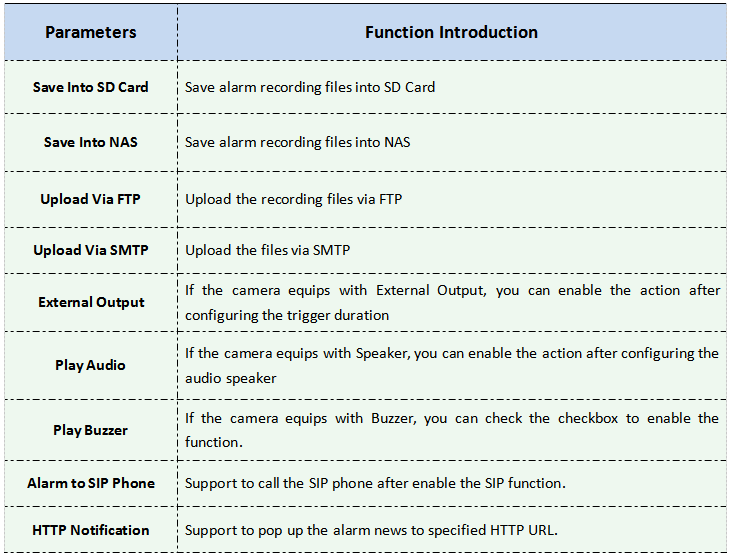

Step5: Set alarm action;

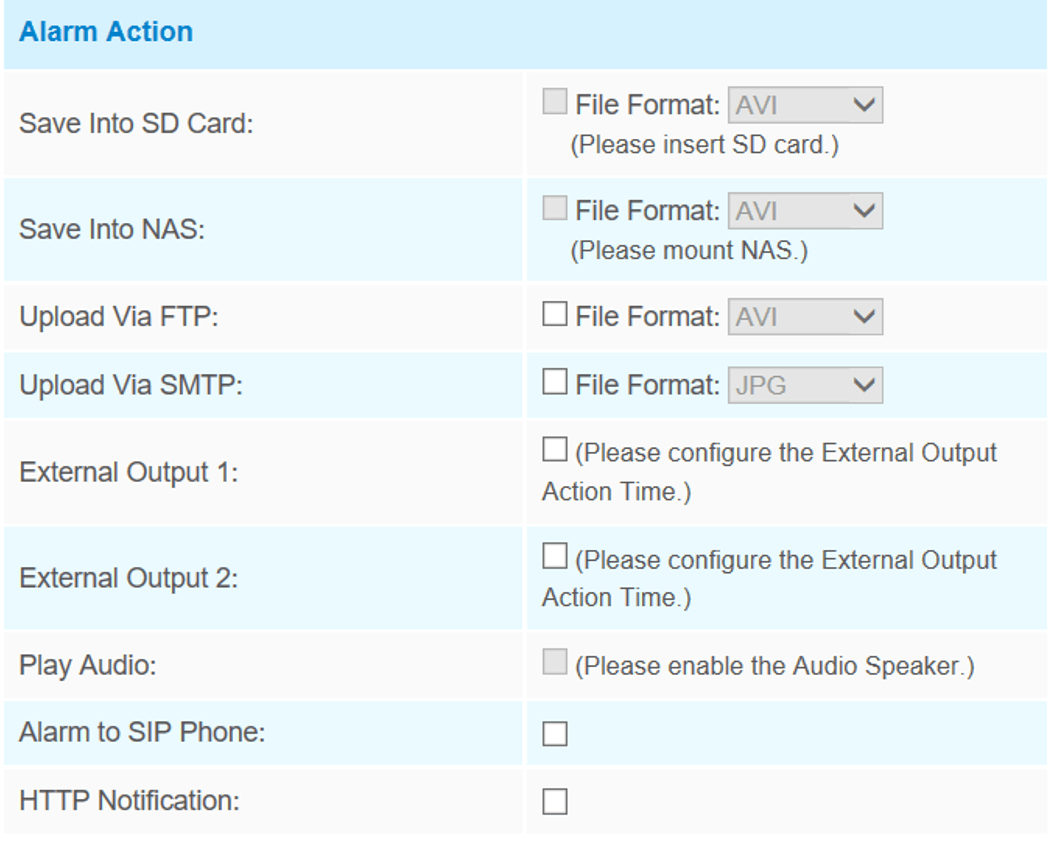

Figure 4-6 Alarm Action

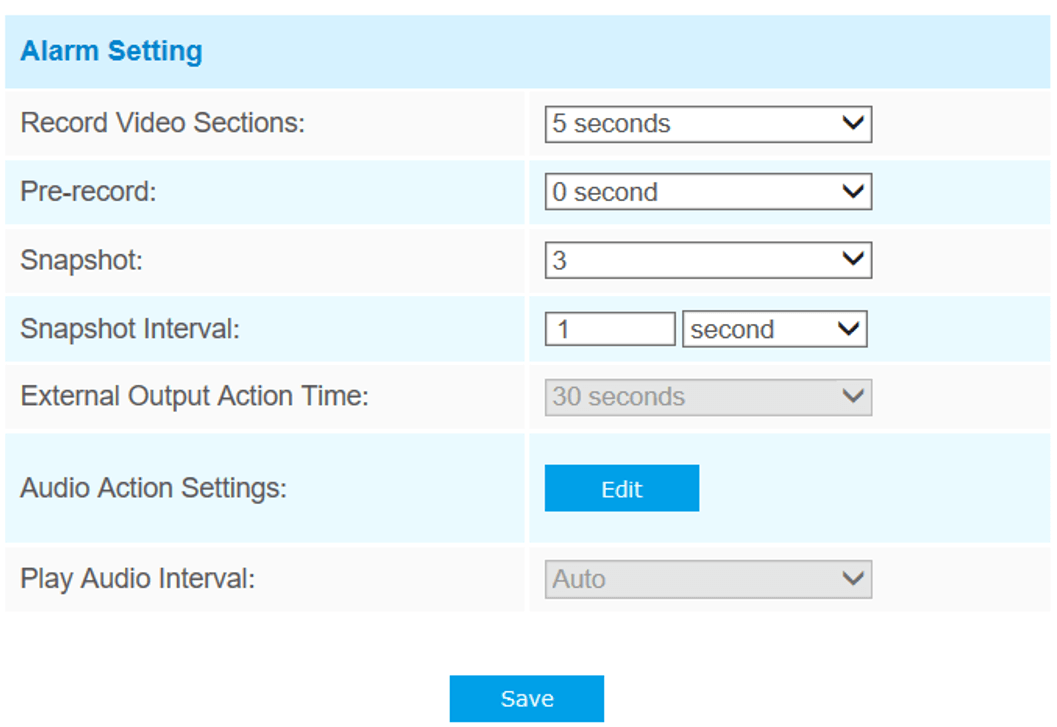

Step6: Set alarm settings;

Figure 4-7 Alarm Settings

Table 2 Description of the buttons

· Region Exiting

1.What is Region Exiting

Region exiting is to make sure that any person or object won't exit the area that is being monitored. Any exiting of people or objects will trigger an alarm.

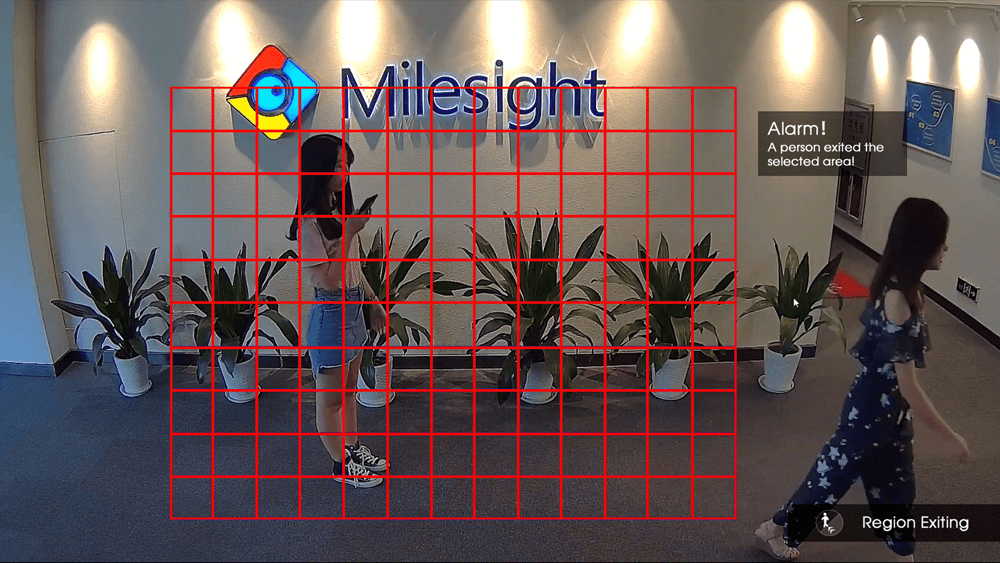

Figure 4-8 Region Exiting

If you enable Detection Object(Human/Vehicle), the selected regions will display in“red”when the alarm is triggered.

Figure 4-9  Region Entrance Trigger

2.How to set Region Exiting

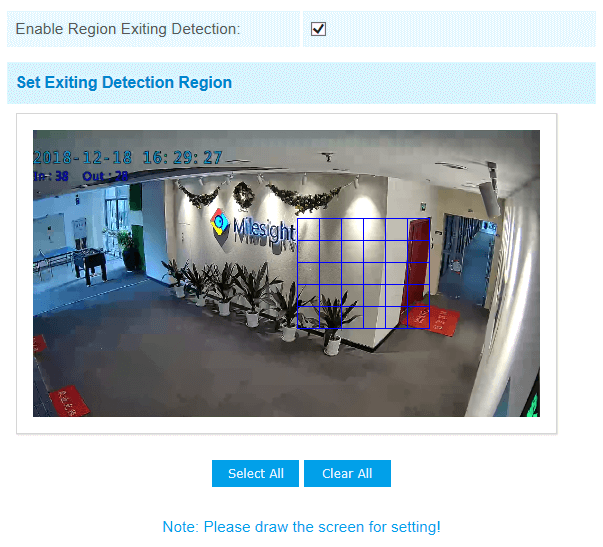

Enable region entrance detection and draw a region by clicking the mouse. Any object entering into the region will trigger an alarm. (You can set the maximum 4 pieces of regions.)

Figure 4-10 Region Exiting settings page

· Advanced Motion Detection

1. What is Advanced Motion Detection

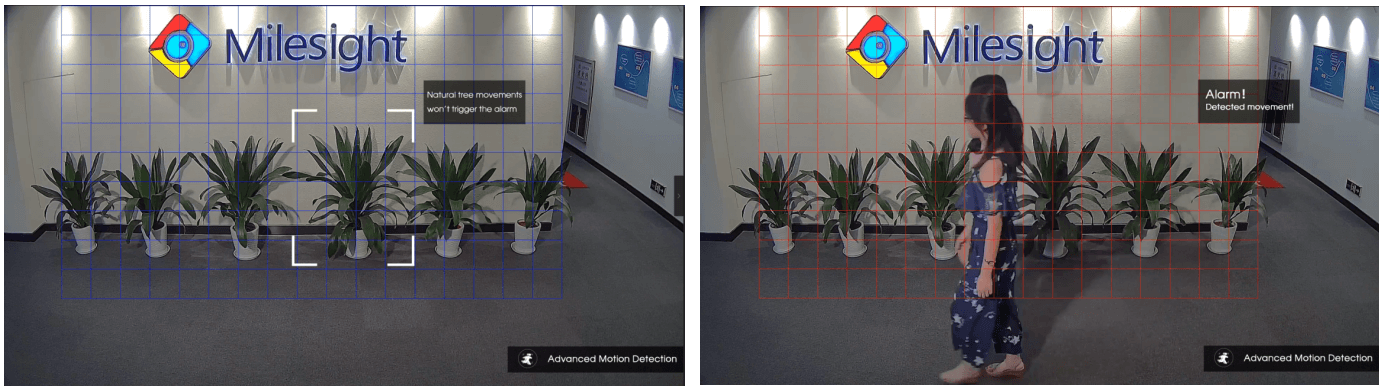

Different from traditional motion detection, Milesight advanced motion detection is a really intelligent one which can filter out “noise” such as lighting changes, natural tree movements, etc. When an object moves in the selected area, it will trigger an alarm.

Figure 4-11 Advanced Motion Detection

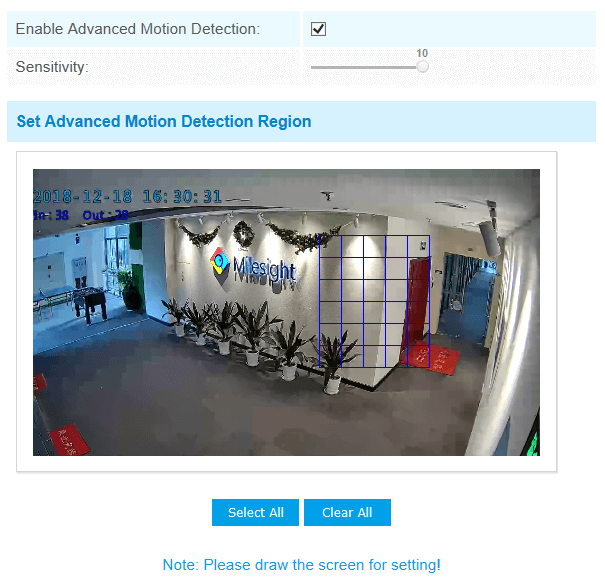

2.How to set Advanced Motion Detection

Enable advanced motion detection and draw a region by clicking the mouse. (You can set the maximum 4 pieces of regions.).The sensitivity can be configured to detect various movements according to different requirements. When the level of sensitivity is low, slight movement won’t trigger the alarm. You can also set the “Ignore Short-Lived Motion”, its range is 1s-5s.

· Tamper Detection

1.What is Tamper Detection

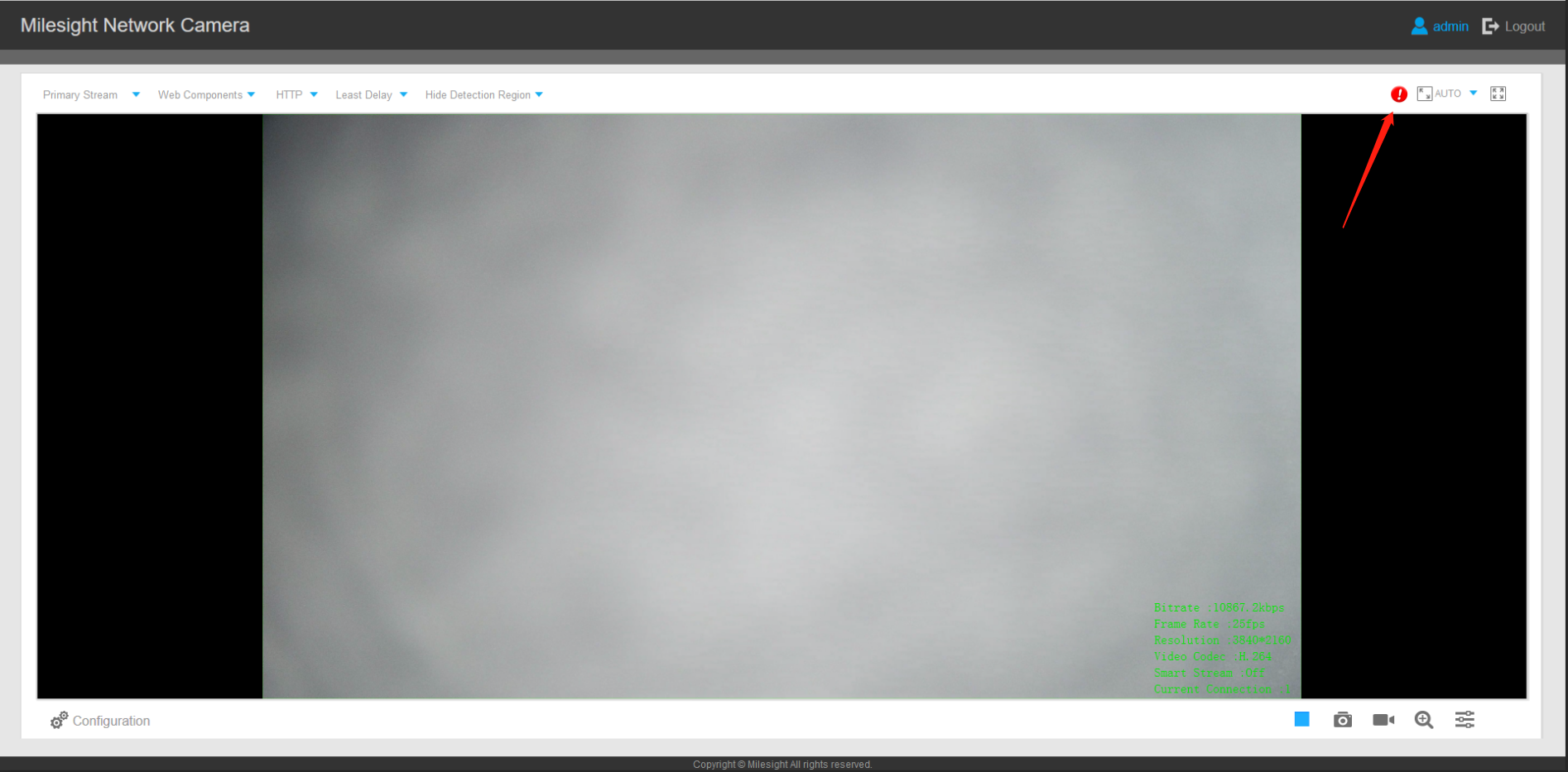

Tamper Detection is used to detect possible tampering like the camera being obstructed or moved. This functionality alerts security staff immediately when any above-mentioned actions occur.

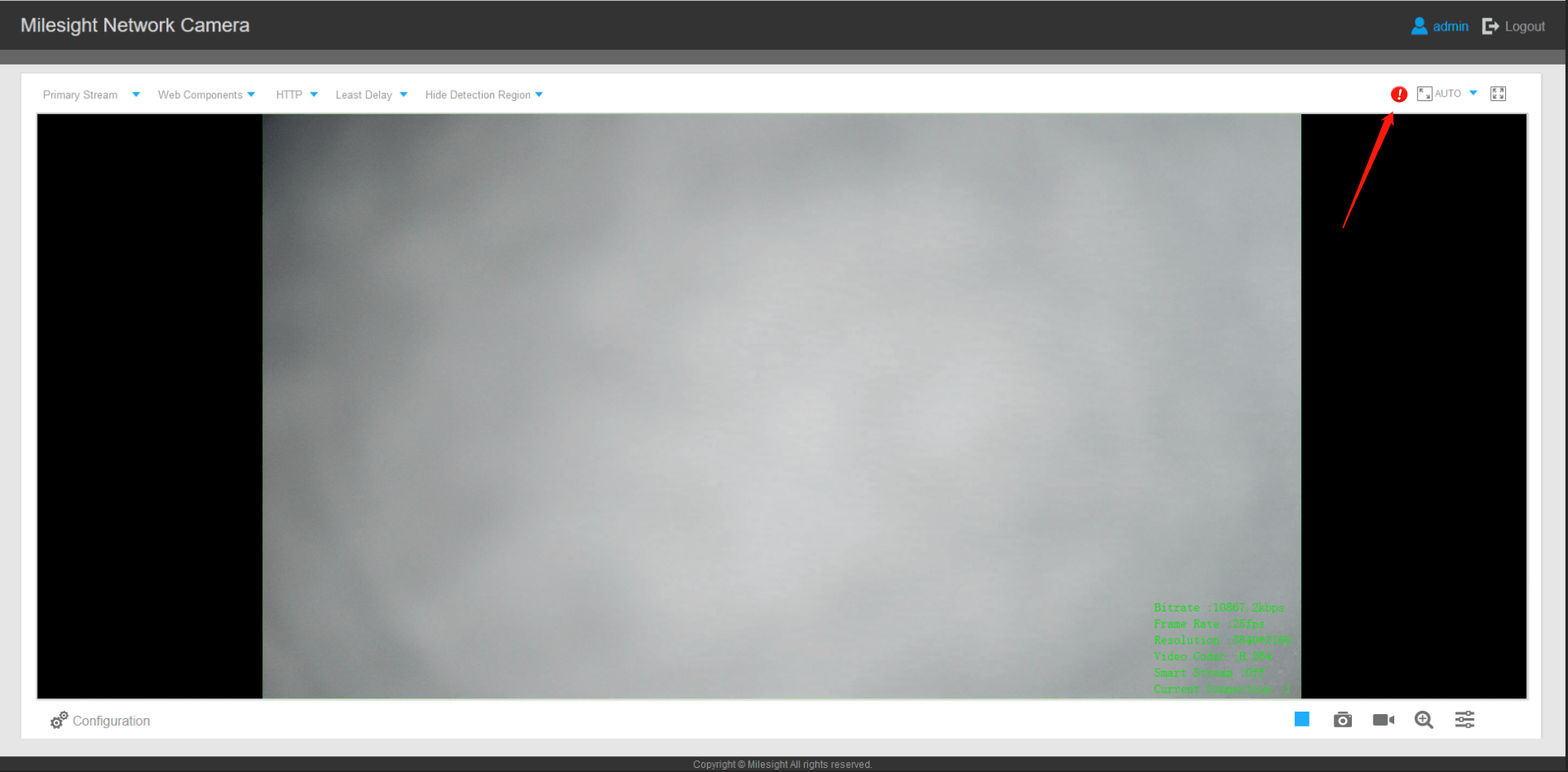

Figure 4-13 Tamper Detection

Figure 4-14 Tamper Detection

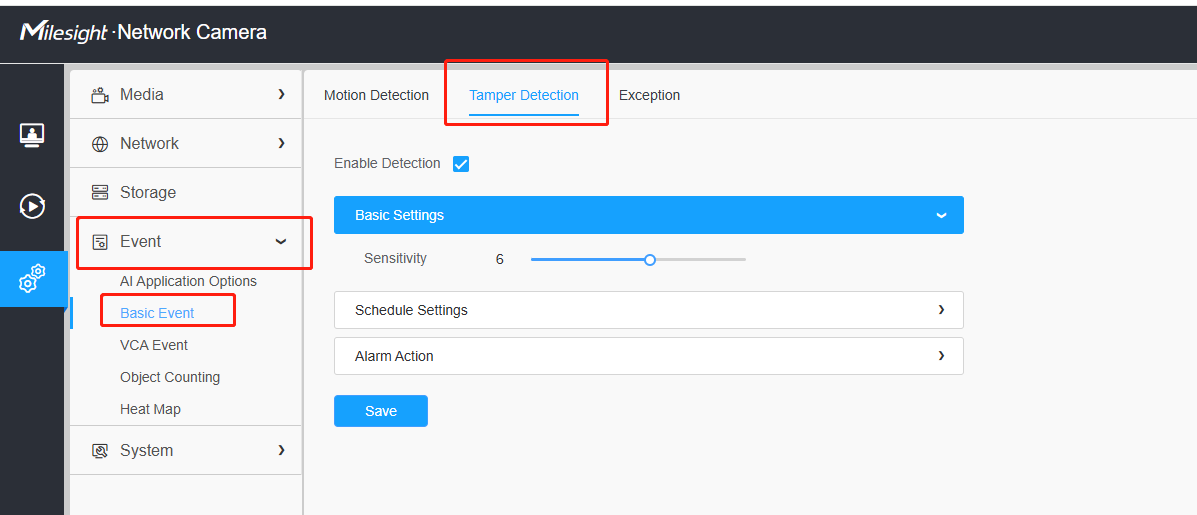

2. How to set Tamper Detection

Enable tamper detection. According to the sensitivity, alarm will be triggered when disrupted camera operations happen.

Figure 4-15 Tamper Detection Settings page

· Line Crossing

1. What is Line Crossing

Milesight line crossing detection is designed to work in most indoor and outdoor environment. An event will be triggered every time when the camera detects objects crossing a defined virtual line. It is especially suitable for general monitoring of entrance and exit points in low-traffic areas, detecting objects such as people and vehicles that cross the defined virtual line.

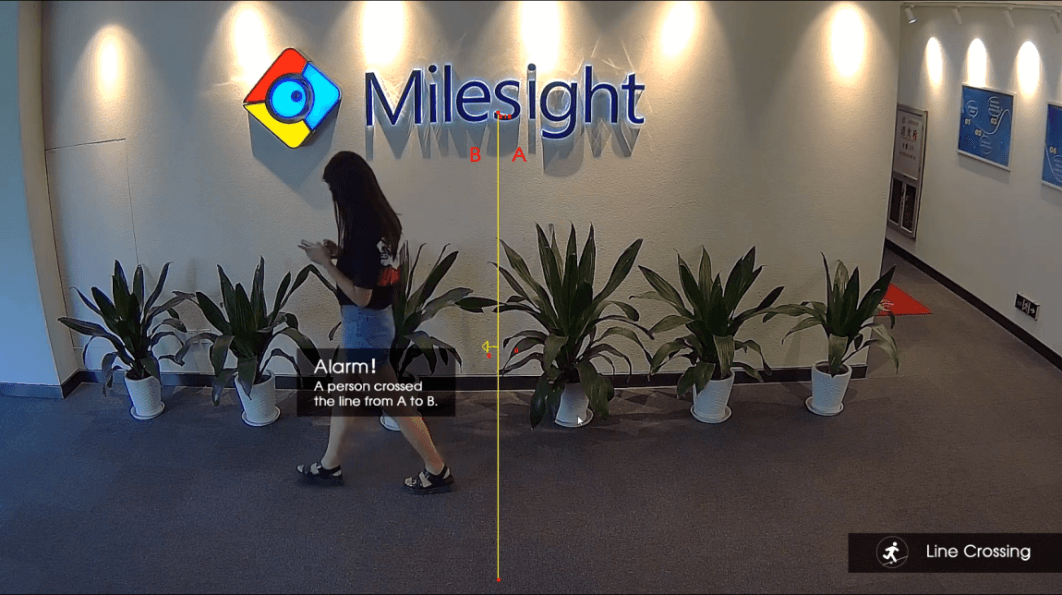

Figure 4-16 Line Crossing

2.How to set Line Crossing

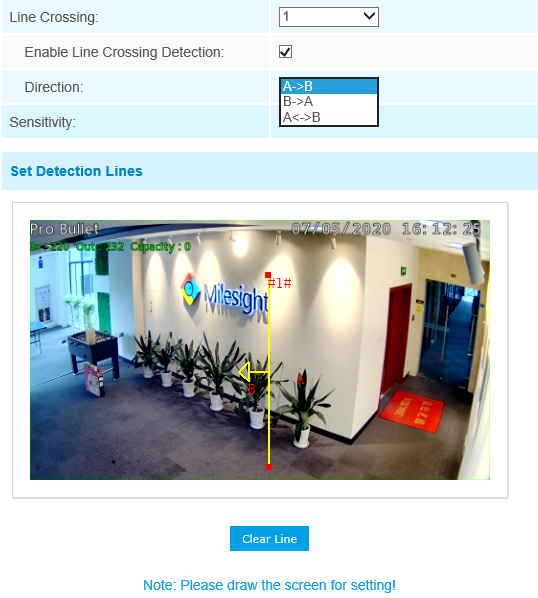

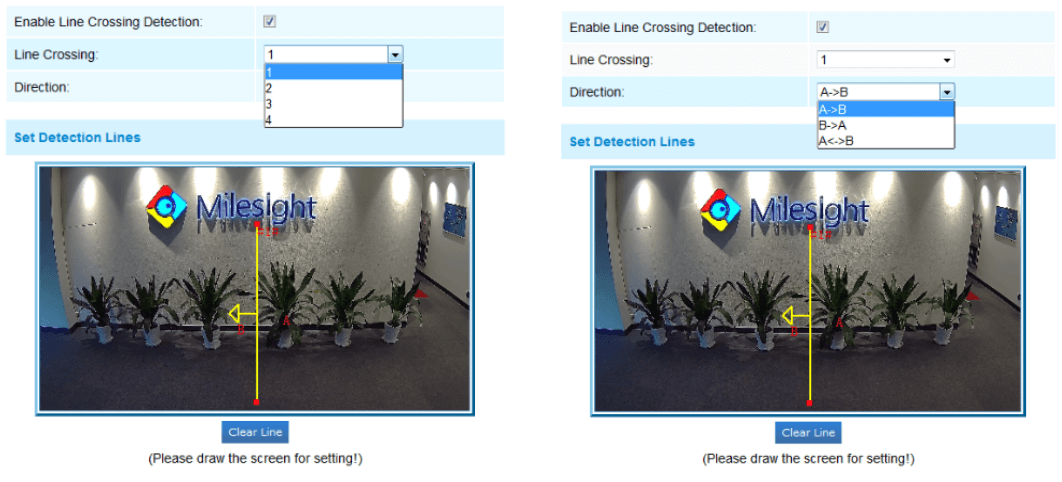

Enable line crossing detection. Click the mouse to draw a line in the monitoring view. Milesight allows to set up to four lines at a time. There are three direction modes to choose for triggering alarm. “A→B” means when there is any object crossing the line from the “A” side to the “B” side, the alarm will be triggered. “B→A” vice versa. “A←→B” means that the alarm will be triggered when objects cross line from either side.

Figure 4-17 Line Crossing Settings page

· Loitering

1.What is Loitering

When objects are loitering in a defined area for a specific period of time, it would trigger an alarm. Illegal activities towards the places like retail stores and banks would be nipped in the bud thanks to this function.

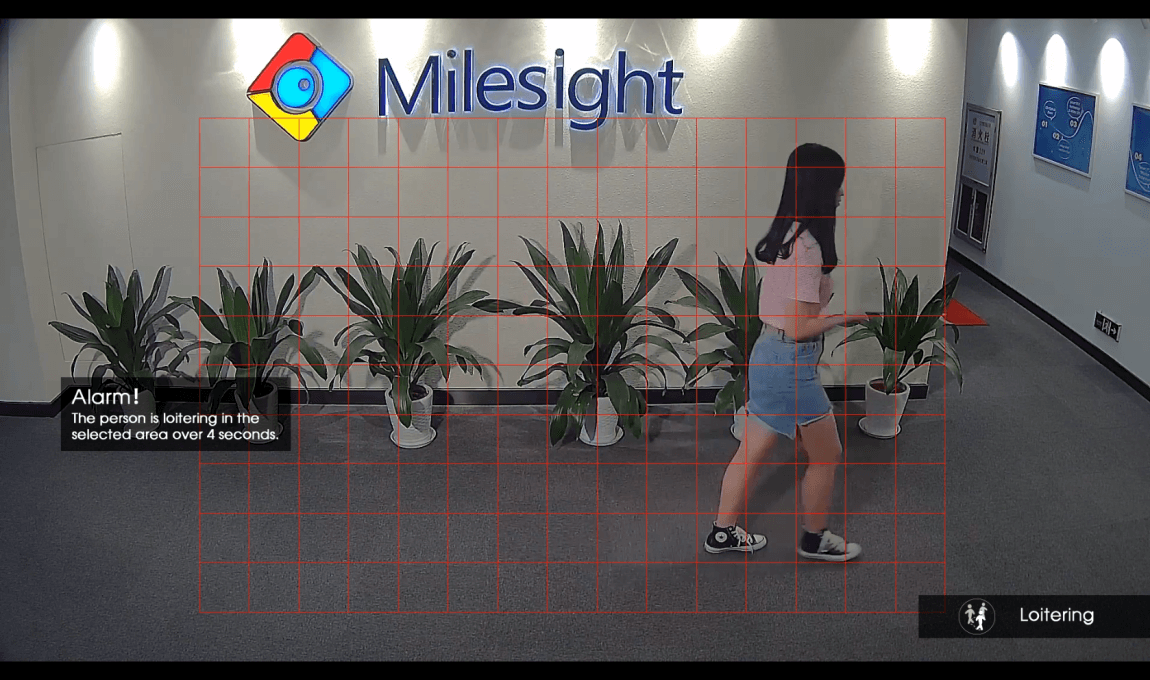

Figure 4-18 Loitering

2.How to set Loitering

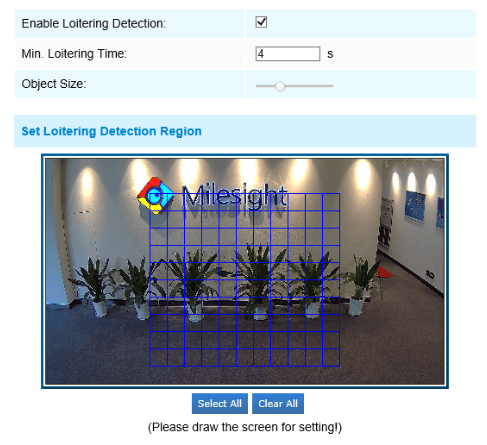

Enable loitering detection and draw an area in the view. After setting minimum loitering time from 3s to 1800s, any object loiters in the selected area over the minimum loitering time will trigger the alarm. Also Milesight loitering allows to set “Object Size”. Only the object bigger than the set size will trigger the alarm.

· Object Removed

1. What is Object Removed

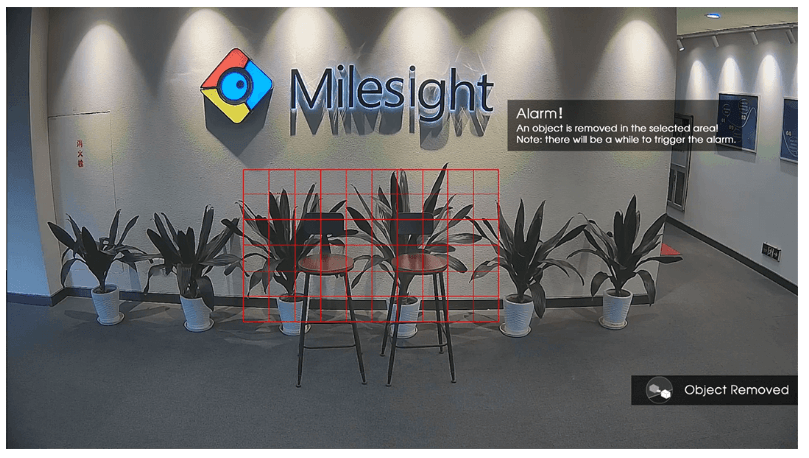

Object Removed is used to secure objects’ safety. When there is an object removed from a pre-defined region, it will detect and prompt an alarm. You can set the maximum 4 object left regions, the sensitivity and object size limits can be set in the “General Settings”.

Figure 4-22 Object Removed

2. How to set Object Removed

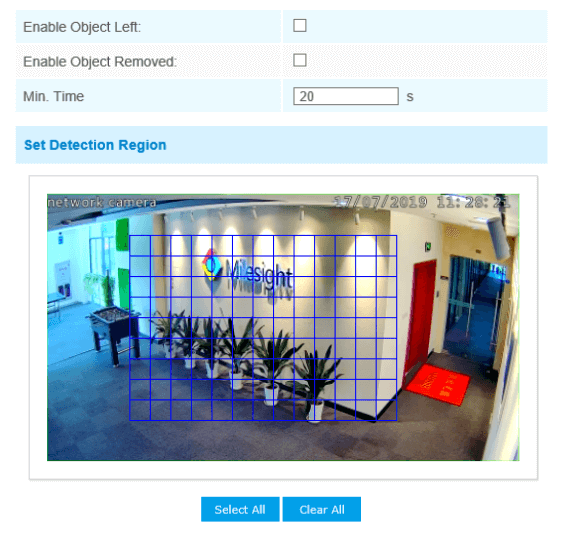

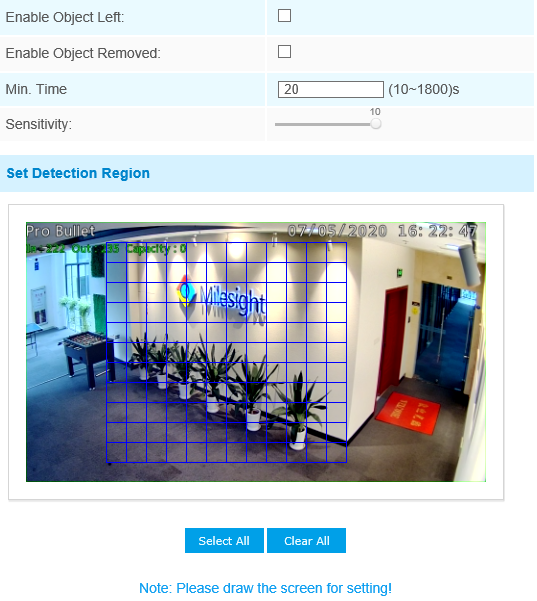

Enable object removed detection and set minimum time, then draw a region by clicking the mouse. Any object removed in the region over the minimum time will trigger an alarm.

Figure 4-23 Object Removed Settings page

Ⅴ. How to set VCA function with Milesight NVR

Smart Event uses Milesight Video Content Analysis technology which is applied in a wide range of domains including entertainment, health-care, retail, automotive, transport, home automation, safety and security. Milesight VCA provides advanced, accurate smart video analysis for Milesight network cameras. It enhances the performance of network cameras through 8 detection modes which are divided into basic function and advanced function, enabling the comprehensive surveillance function and quicker response of cameras to different monitoring scenes.

· Region Entrance

Region entrance helps to protect a specific area from potential threat of suspicious person’s or object’s entrance. An alarm will be triggered when objects enter the selected regions by enabling region entrance.

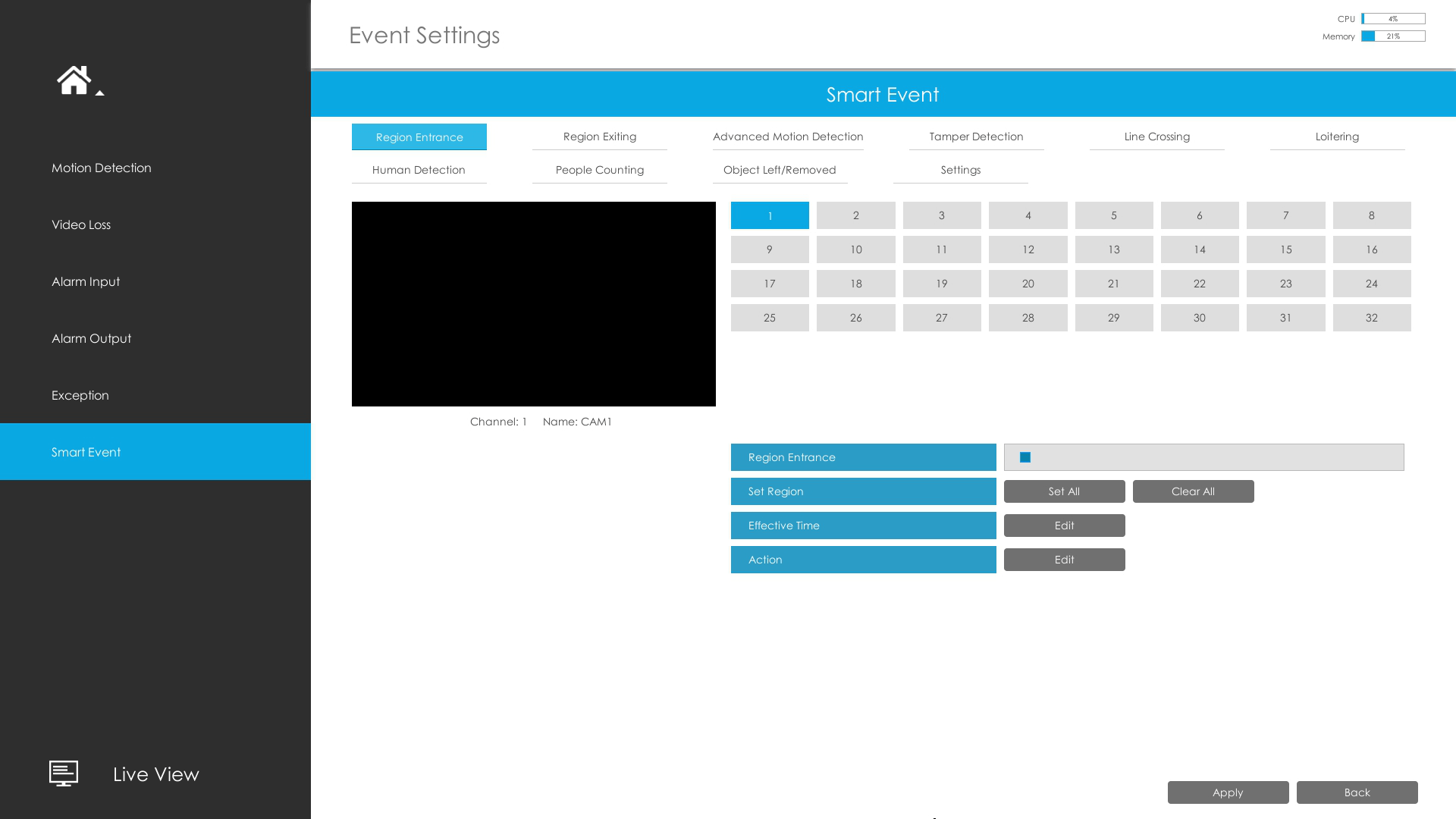

Figure 5-1 Region Entrance Settings page

Step 1: Select channel and enable Region Entrance.

Figure 5-2 Region Entrance

Figure 5-3 Set Entrance Detection region

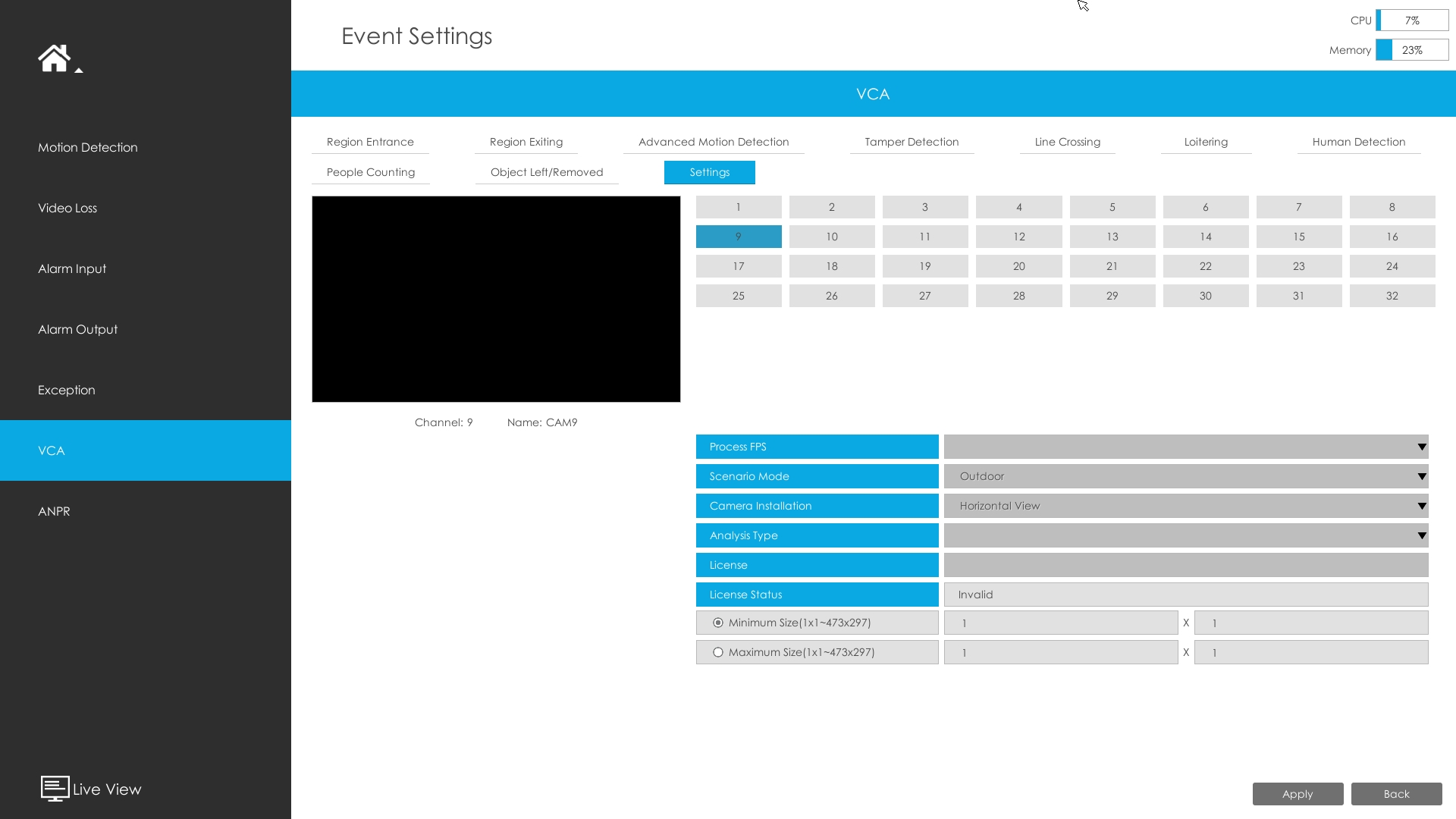

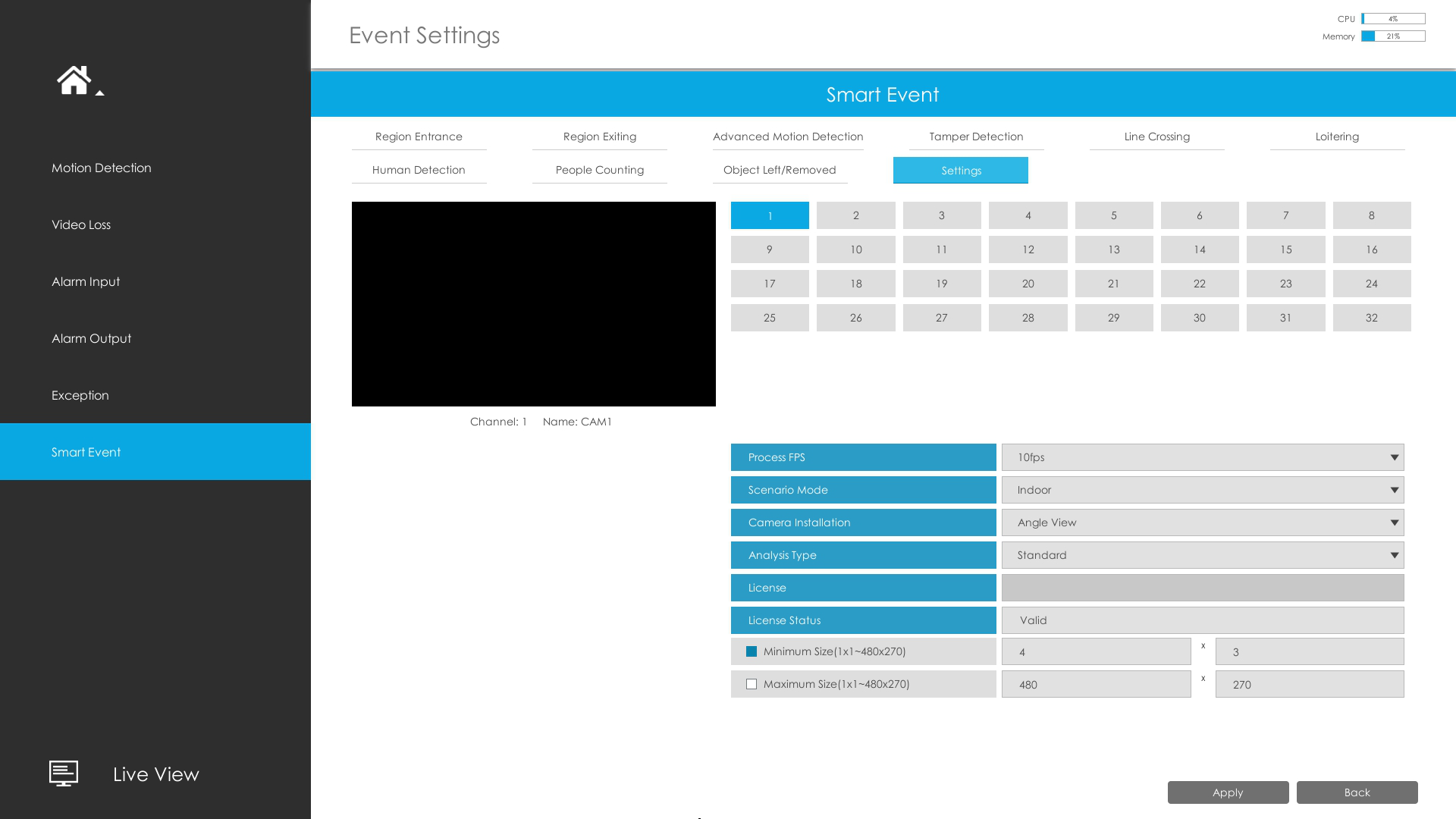

Milesight VCA provides the primary setting for the whole VCA functions.

Minimum Size：Is the setting to decide whether an object is big enough to trigger other settings. The frame you draw on the screen means that only if the object size is bigger than the frame, the settings for other VCA functions will take effect.

Maximum Size：Is opposite to “Minimum Size”, only if the object size is smaller than the frame, the settings for other VCA functions will take effect.

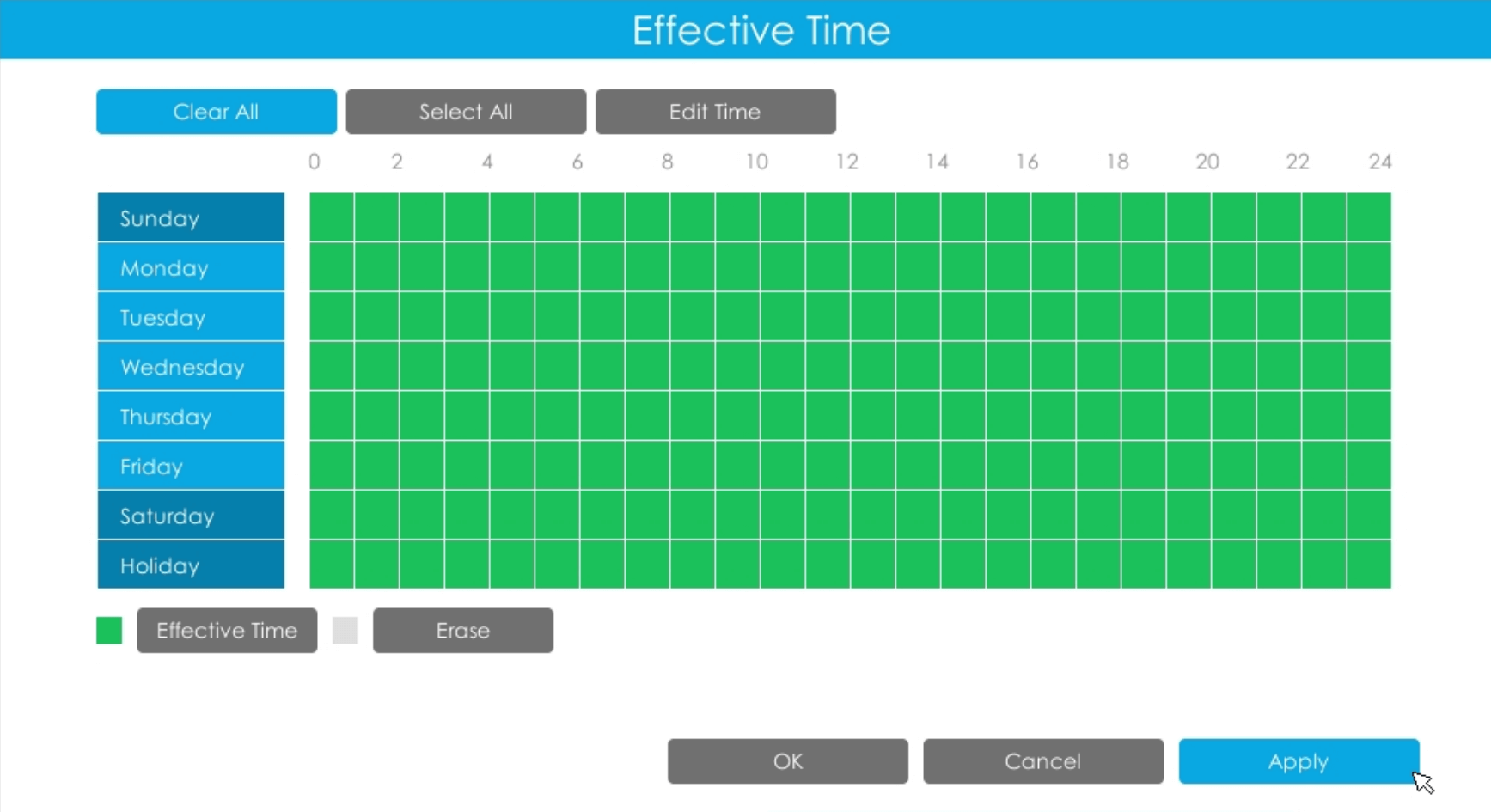

Figure 5-4 Effective Time

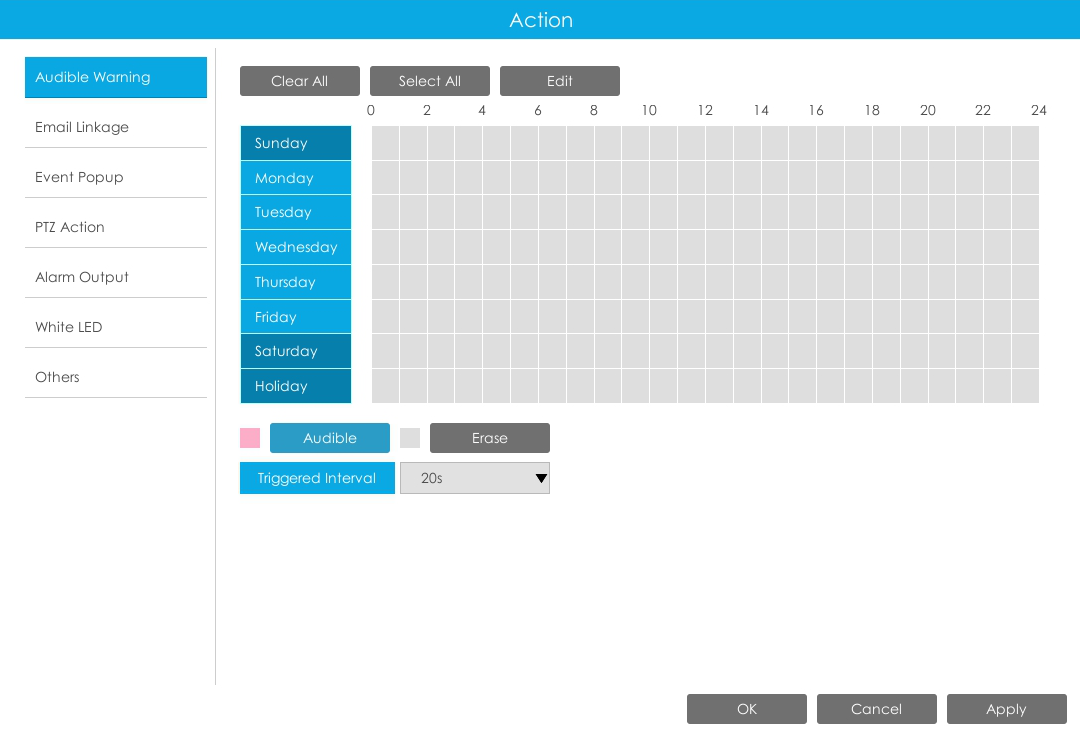

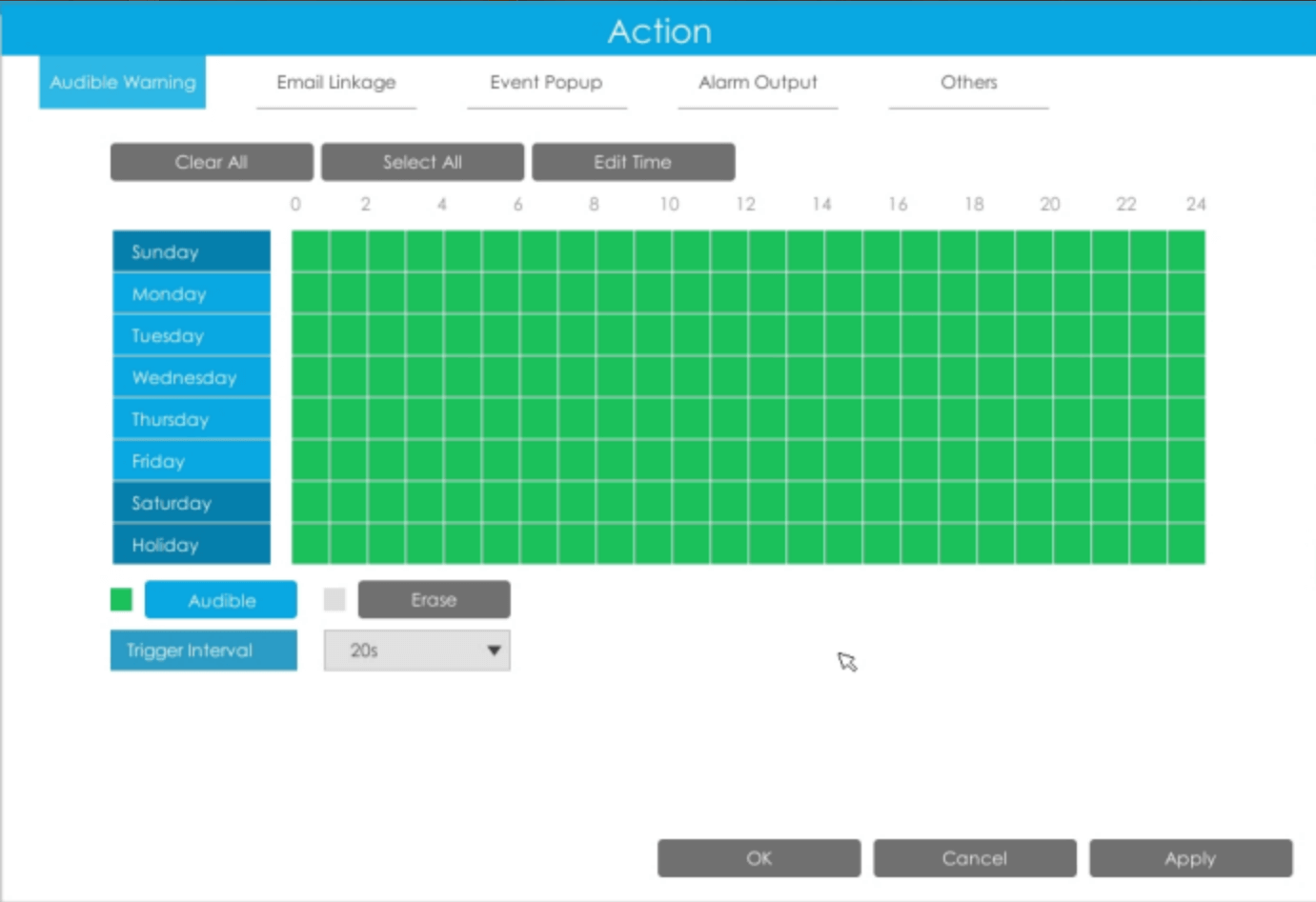

Figure 5-5 Audible Warning

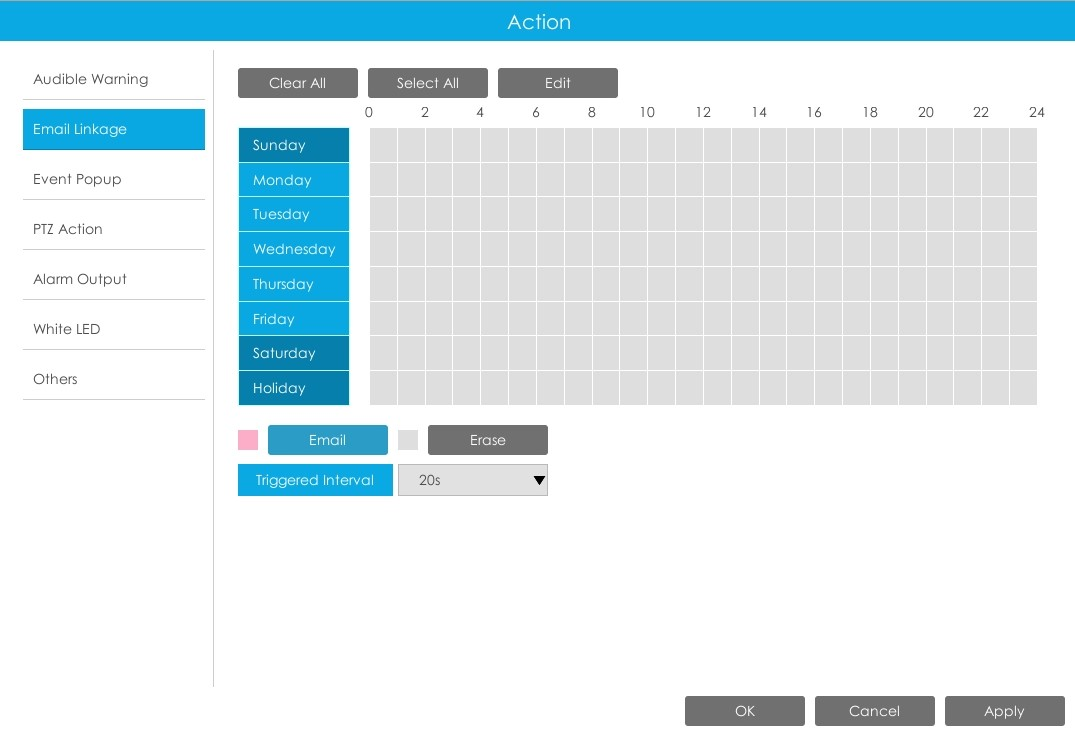

Figure 5-6 Email Linkage

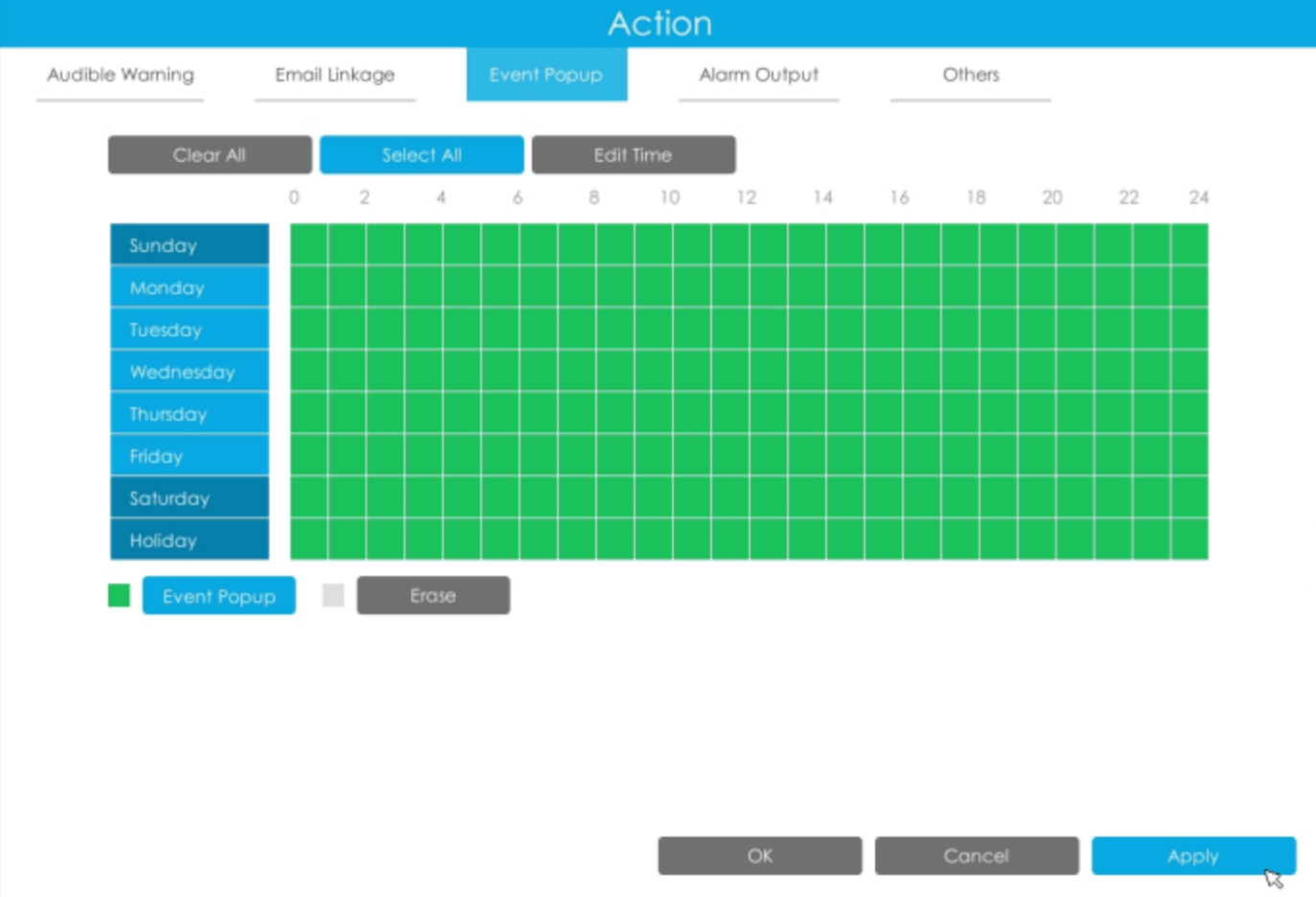

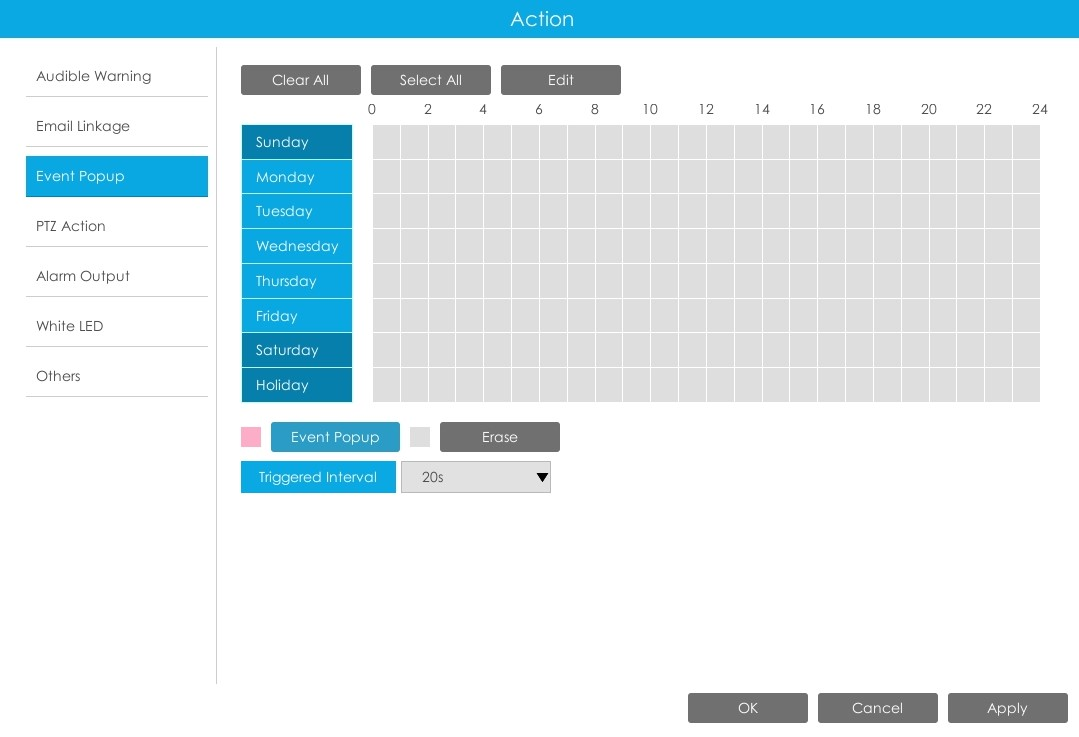

[ Event Popup ]: Trigger alarm screen pop up to full screen when alarm is triggered.

You can set display duration time of all triggered channel in ‘Settings’->’General’->’Event Popup Duration Time’. Then triggered channel will be shown one by one as duration time.

Figure 5-7 Event Popup

Figure 5-7 Event Popup

Figure 5-8 PTZ Action

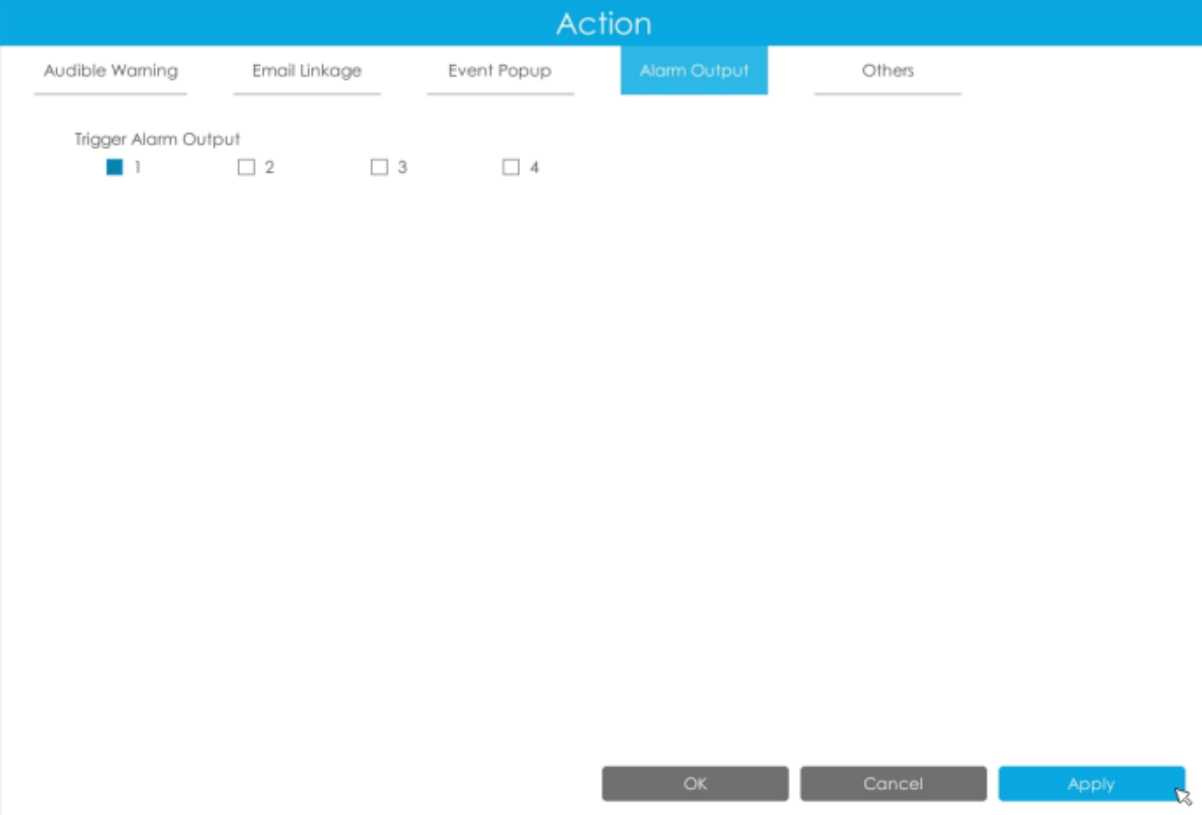

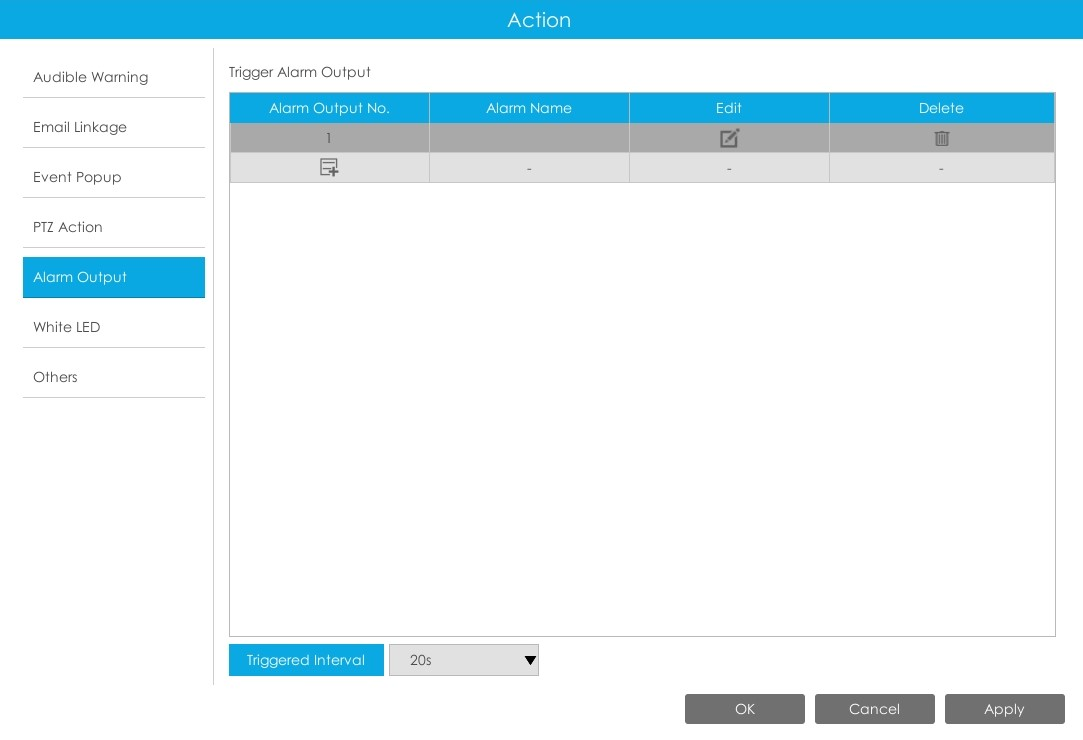

[ Alarm Output ]: Trigger alarm output when alarm is triggered.

Figure 5-9 Alarm Output

[ White LED ]: Triggered White LED when alarm is triggered.

The user can set effective schedule in two ways as below:

①：Select the operation type: White LED or Erase. Then drag a square on the time table for time setting.

Figure 5-10 White LED

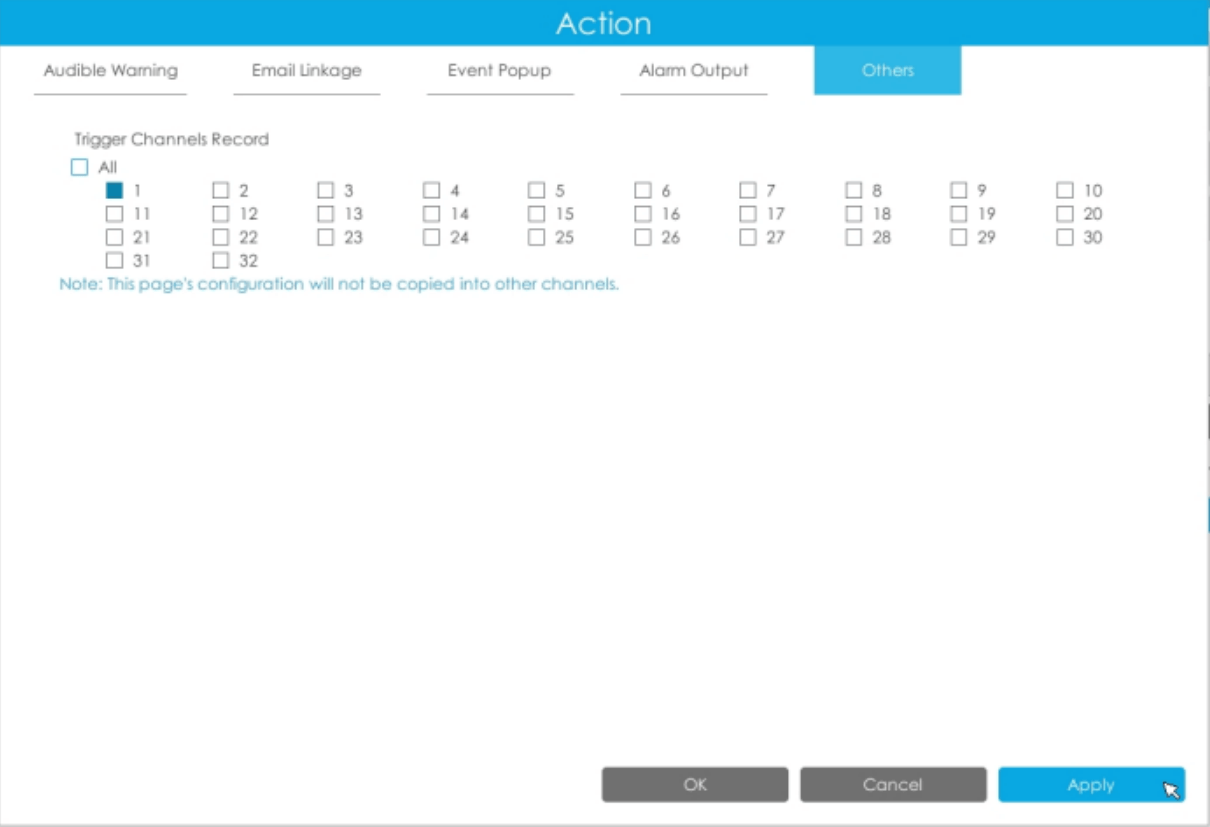

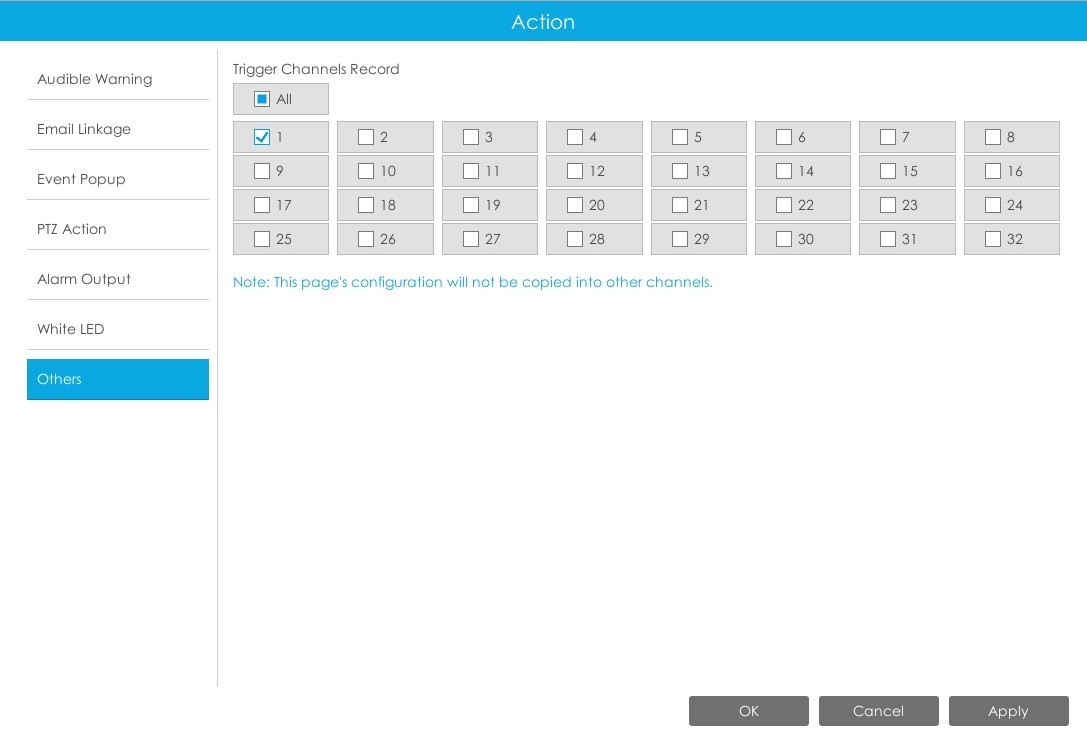

[ Others ]: Trigger other channels record when alarm is triggered.

Figure 5-11 Others

· Region Exiting

Region exiting is to make sure that any person or object won't exit the area that is being monitored. Any exit of people or objects will trigger an alarm.

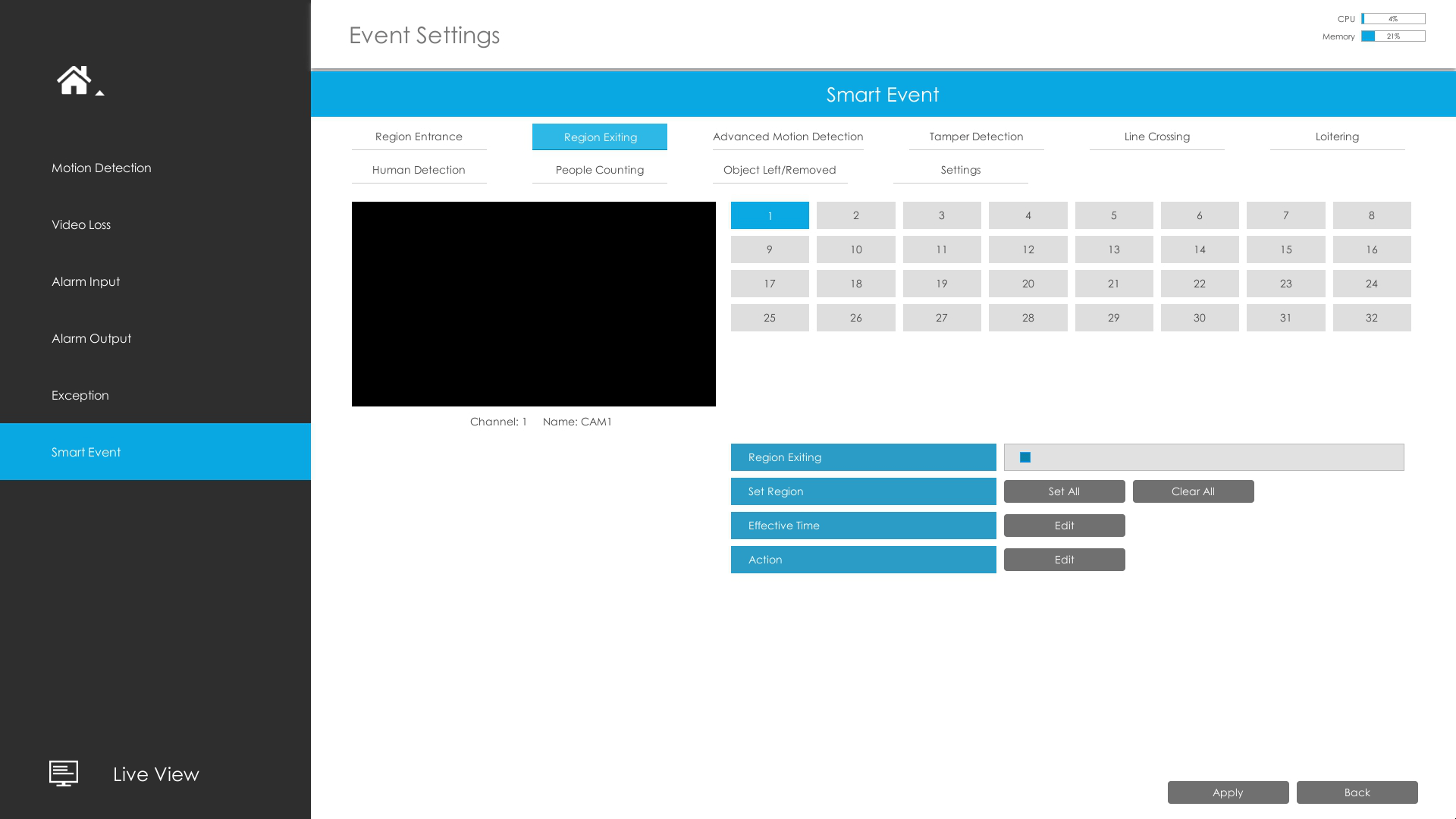

Figure 5-12 Region Exiting Settings page

Select channel and enable Region Exiting.

· Region Entrance

Region entrance helps to protect a specific area from potential threat of suspicious person’s or object’s entrance. An alarm will be triggered when objects enter the selected regions by enabling region entrance.

Step1: Select channel and enable Region Entrance.

Figure 5-13 Region Exiting

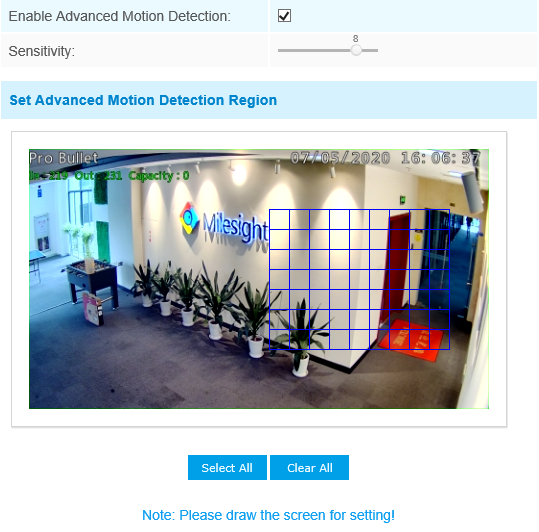

· Advanced Motion Detection

Different from traditional motion detection, Milesight advanced motion detection can filter out “noise” such as lighting changes, natural tree movements, etc. When an object moves to the selected area, it will trigger alarm.

Step 1: Select channel and enable Advanced Motion Detection.

Step 2: Set Sensitivity.

The sensitivity can be configured to detect various movements according to different requirements. When the level of sensitivity is low, slight movement won’t trigger the alarm.

Tamper Detection

Tamper Detection is used to detect possible tampering like the camera being unfocused, obstructed or moved. This functionality alerts security staff immediately when any above-mentioned actions occur.

Step 1: Select channel and enable Tamper Detection.

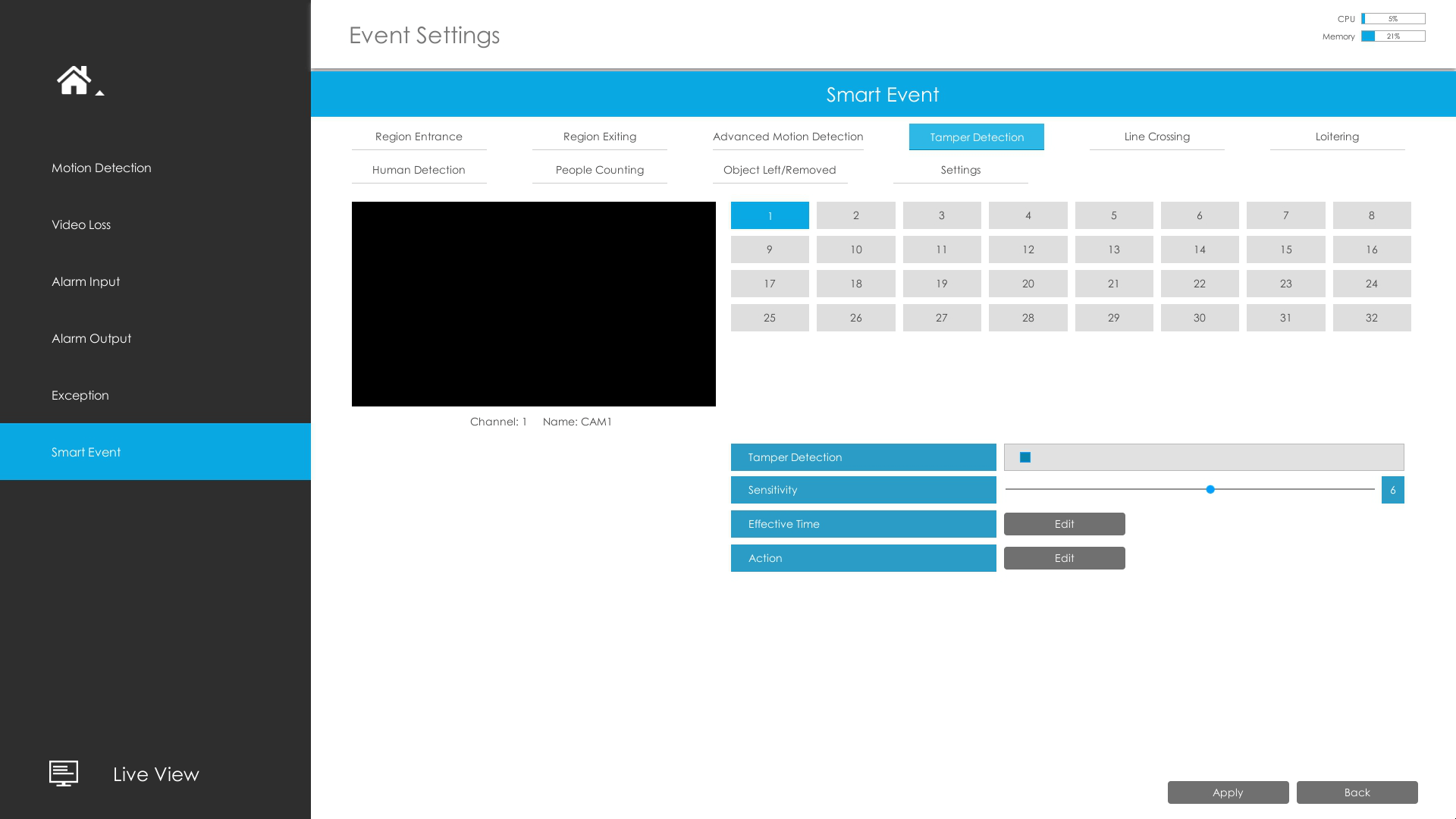

Figure 5-16 Tamper Detection Settings page

Step 2: Set Sensitivity.

The sensitivity can be configured to detect various movements according to different requirements. When the level of sensitivity is low, slight movement won’t trigger the alarm.

 Line Crossing

Line Crossing detection is designed to work in most indoor and outdoor environment. An event will be triggered every time when the camera detects objects crossing a defined virtual line.

Settings steps are shown as follows:

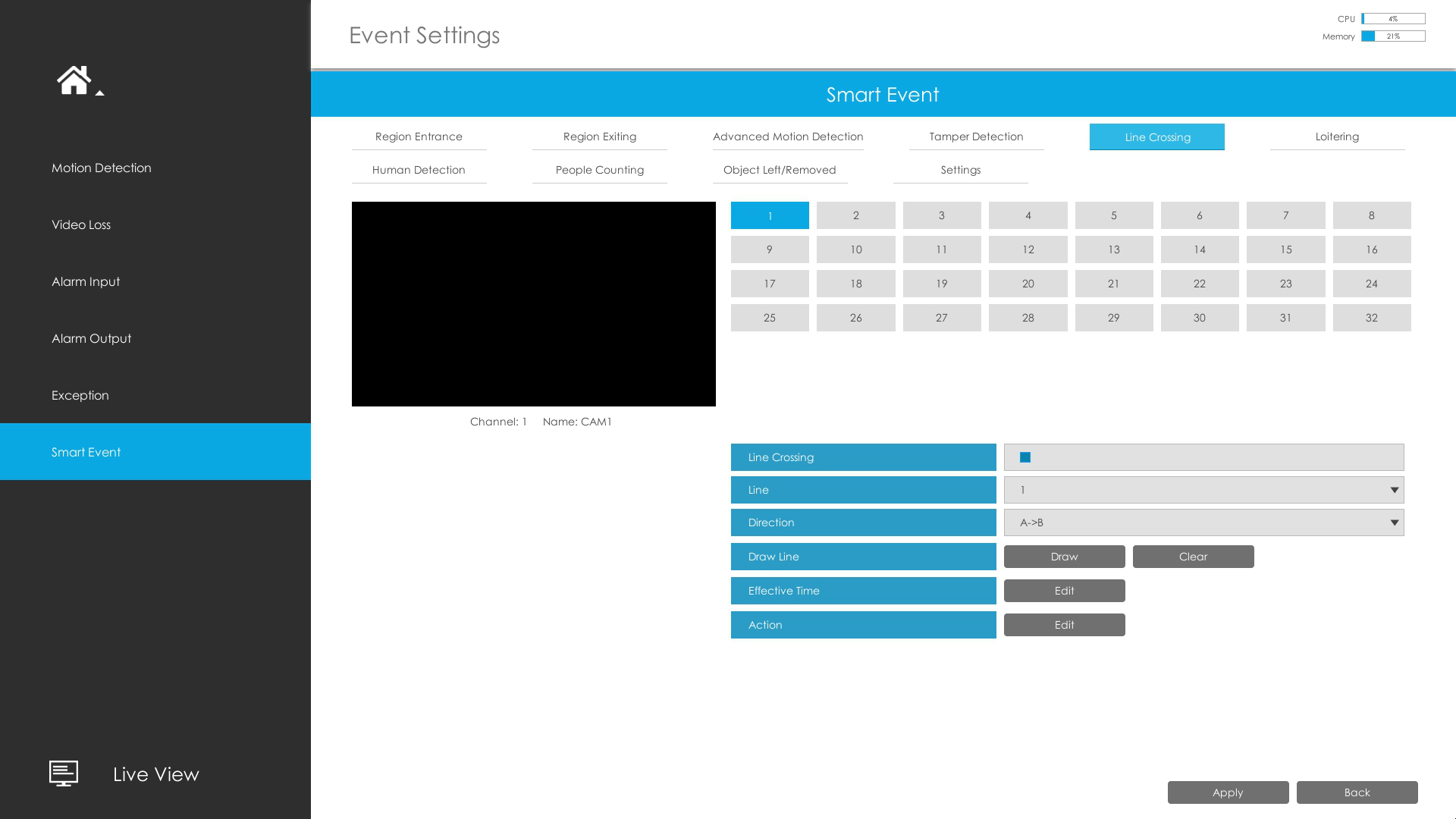

Figure 5-18 Line Crossing Settings page

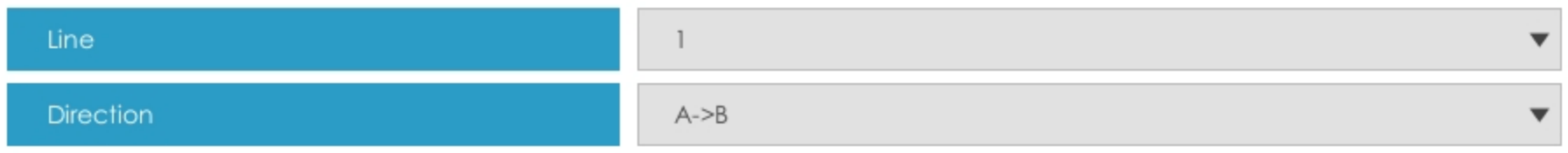

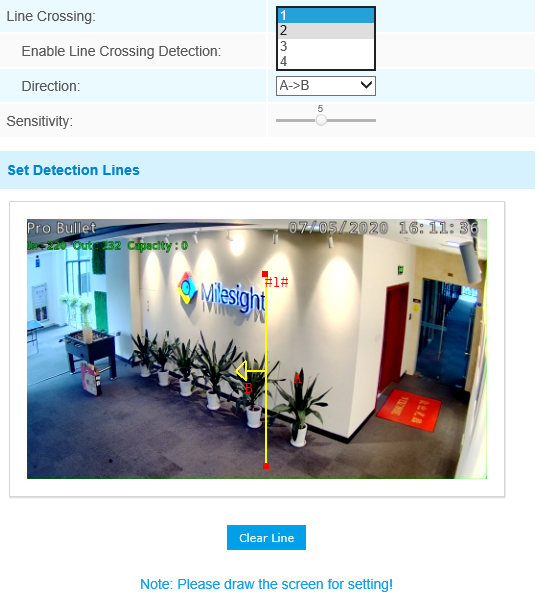

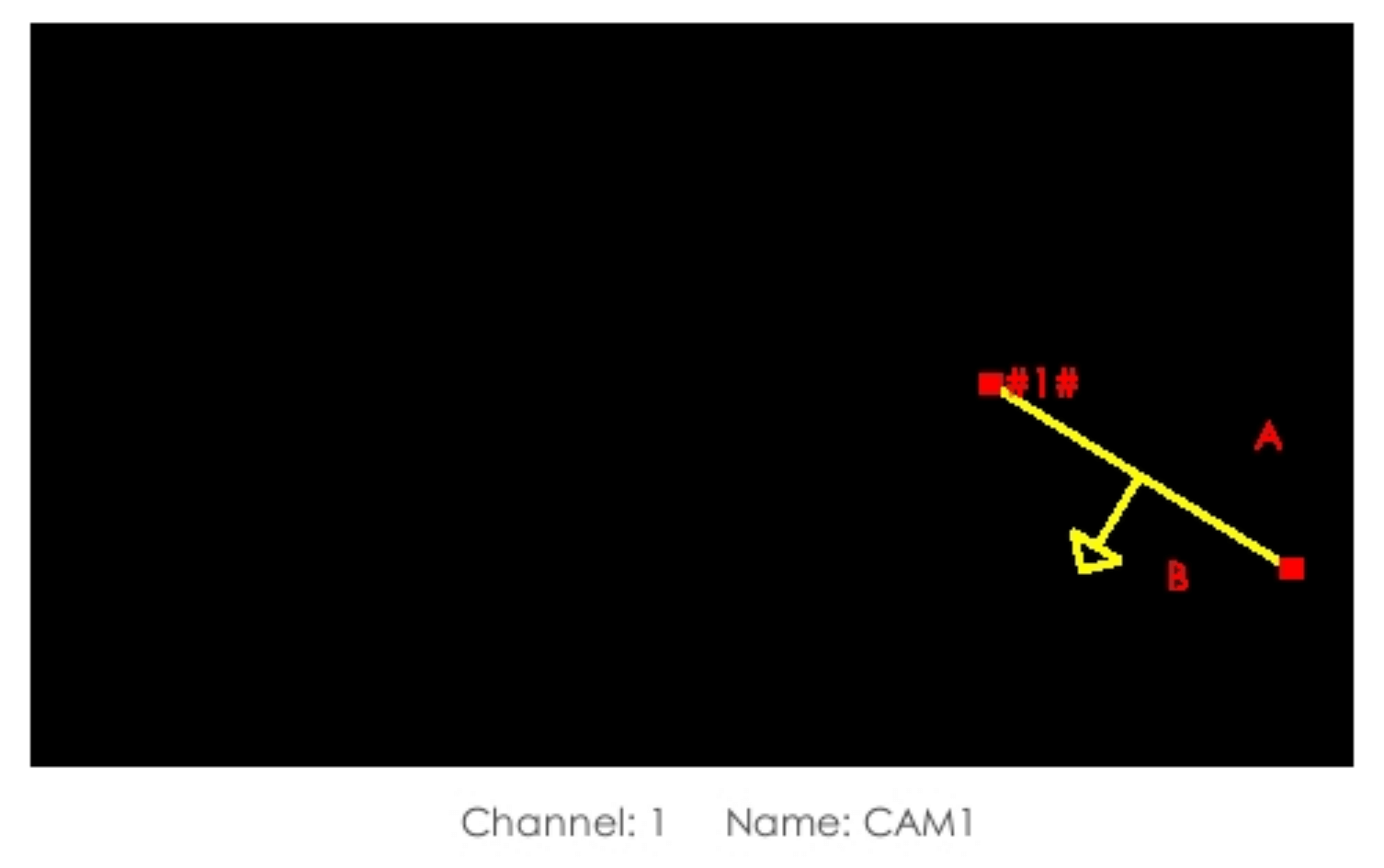

Figure 5-21 Draw Detection Lines

· Loitering

When objects are loitering in a defined area for a specific period of time, it would trigger an alarm.

Figure 5-22 Loitering Settings page

Step1: Select channel and enable Loitering.

Figure 5-23 Loitering

Step2: Set Min. Loitering Time and Object Size.

After setting minimum loitering time from 3s to 1800s, any objects loitering in the selected area over the minimum loitering time will trigger the alarm. Also Milesight loitering allows to set “Object Size”. Only the object bigger than the set size will trigger the alarm.

Figure 5-24 Loitering

· Human Detection

Human detection is used for figuring out whether an object is a human or not.

Figure 5-25 Human Detection Settings page

Step1: Select channel and enable Human Detection.

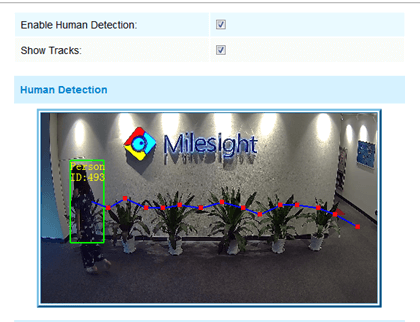

Figure 5-26 Human Detection

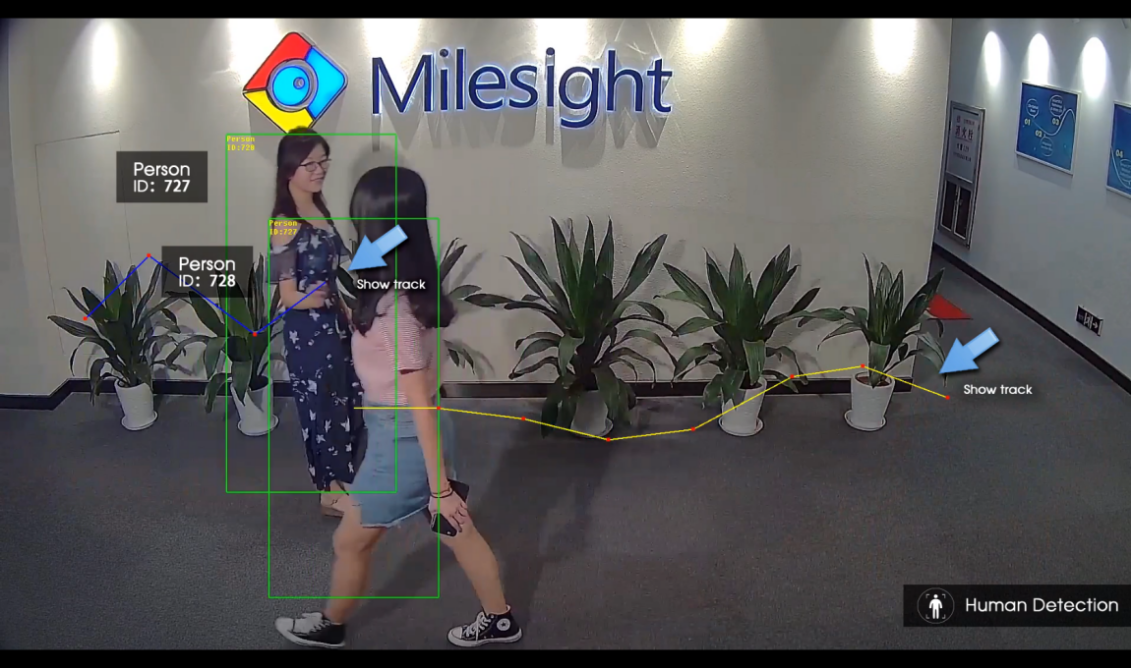

Step2: Enable Show Tracks or not.

Figure 5-27 Show Tracks

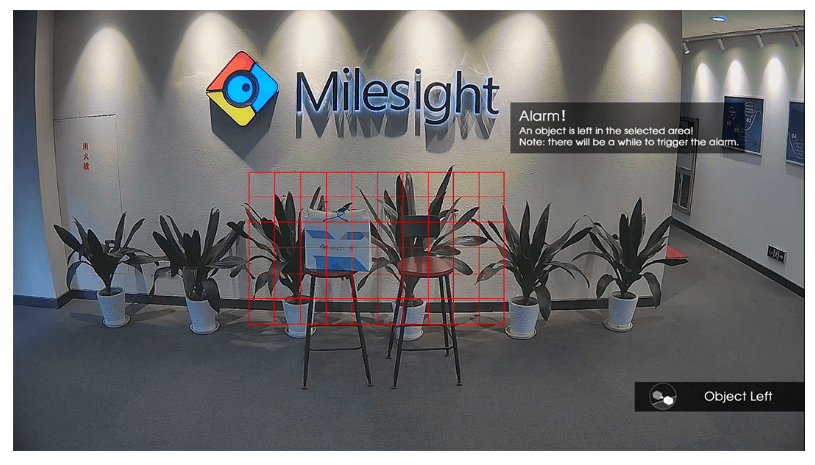

· Object Left

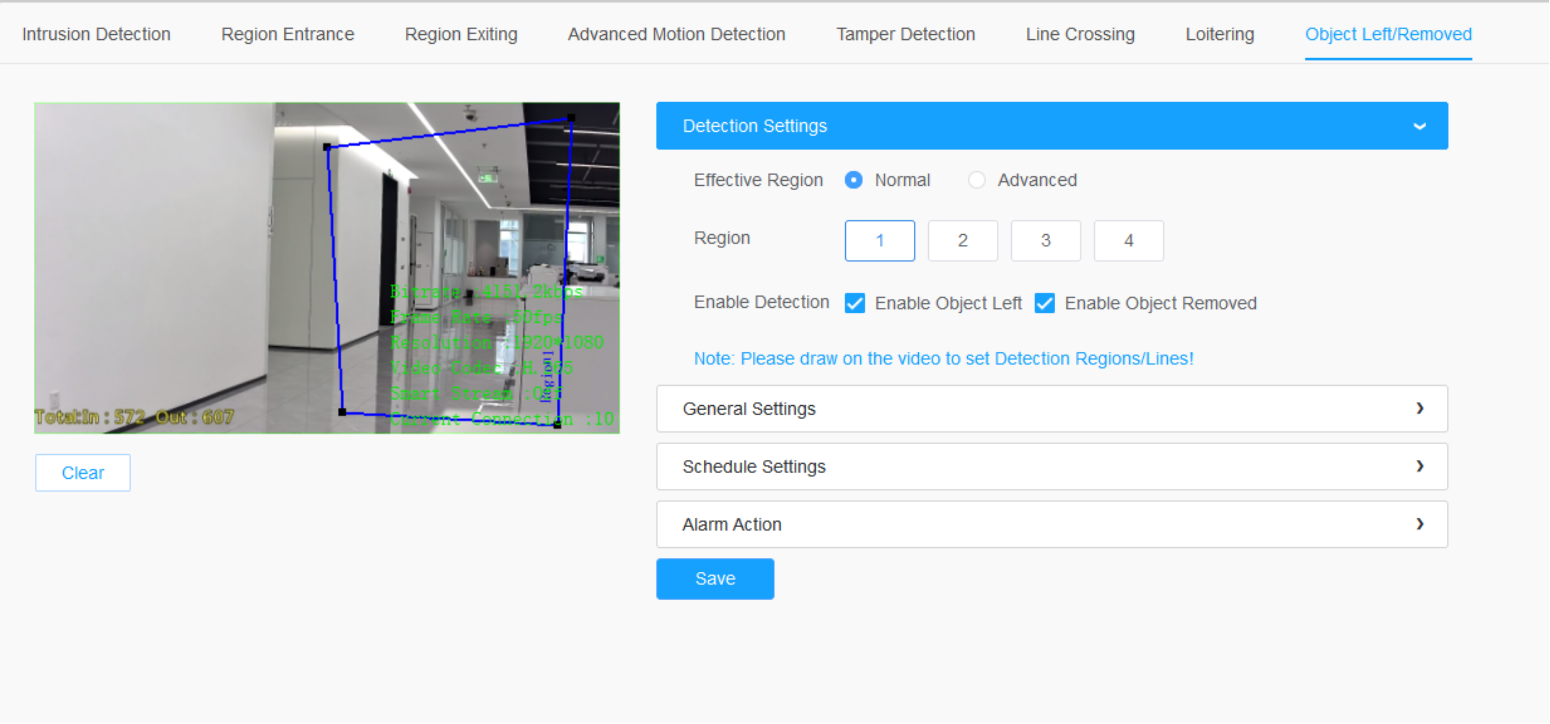

Object Left is used for checking whether there is something left in the selected area. If there is object left in the pre-defined area, an alarm will trigger.

Figure 5-28 Object Left Settings page

Step1: Select channel and enable Object Left.

Figure 5-29 Object Left

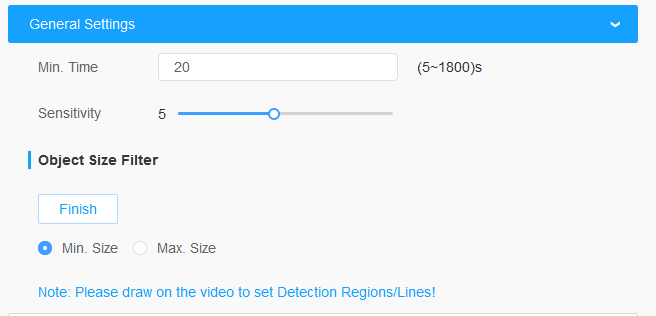

Step2: Set Min. Time.

After setting minimum time from 3s to 1800s, any objects are left in the selected area over the minimum time will trigger the alarm.

Figure 5-30 Object Left

· Object Removed

Object Removed is used to secure objects’ safety. When there is an object removed from a pre-defined region, it will detect and prompt an alarm.

Figure 5-31 Object Removed Settings page

Step1: Select channel and enable Object Removed.

Figure 5-32Object Removed

Step2: Set Min. Time.

After setting minimum time from 3s to 1800s, any objects are removed from the selected area over the minimum time will trigger the alarm.

Figure 5-33 Object Removed

Ⅵ. How to set VCA function with Milesight CMS

· VCA

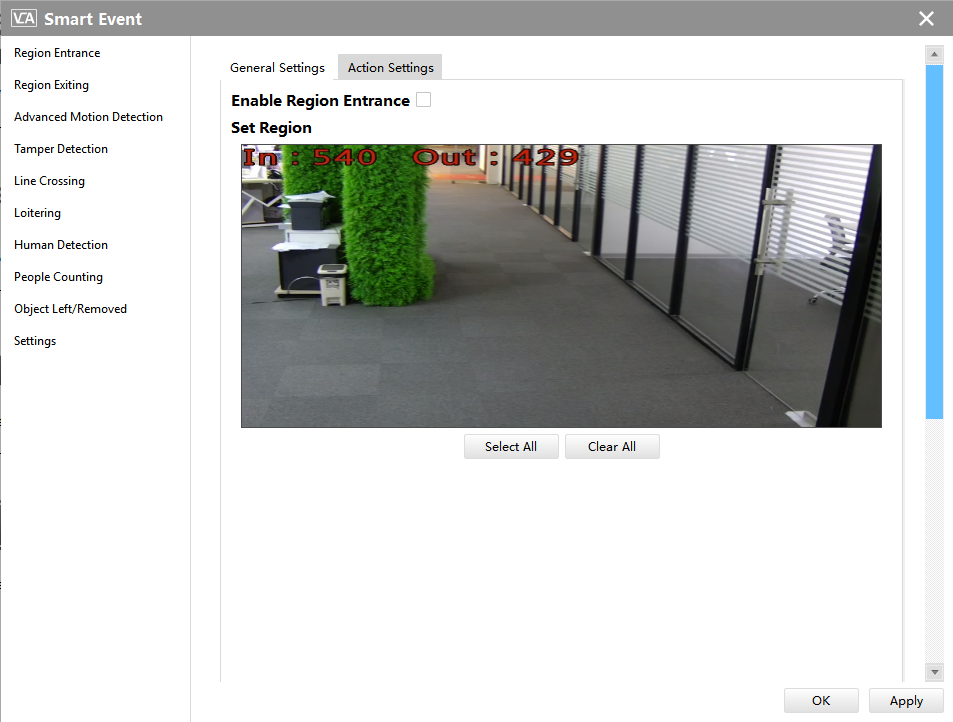

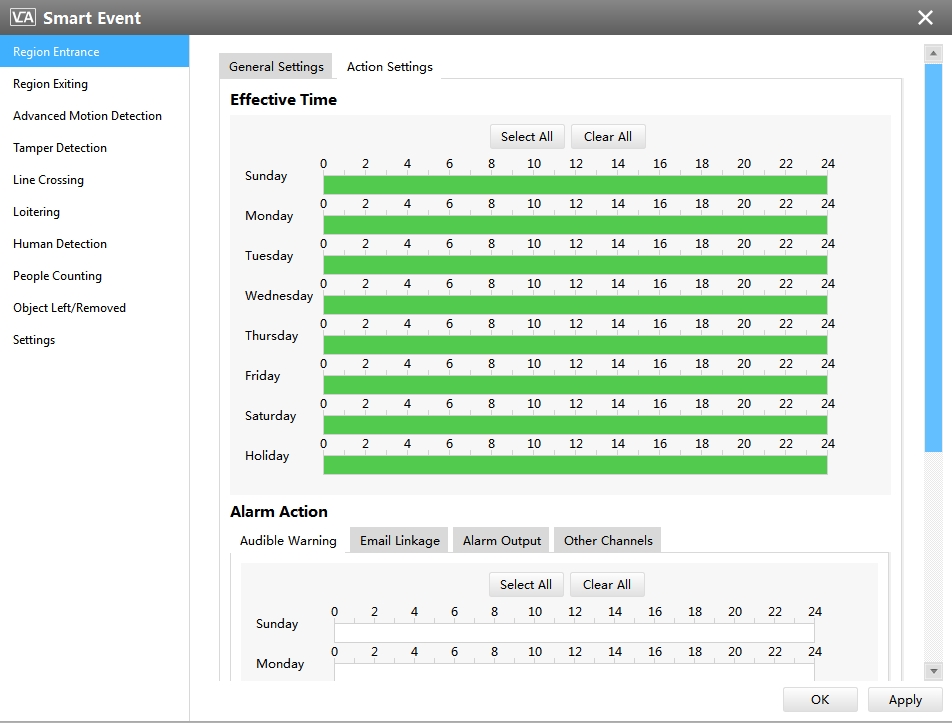

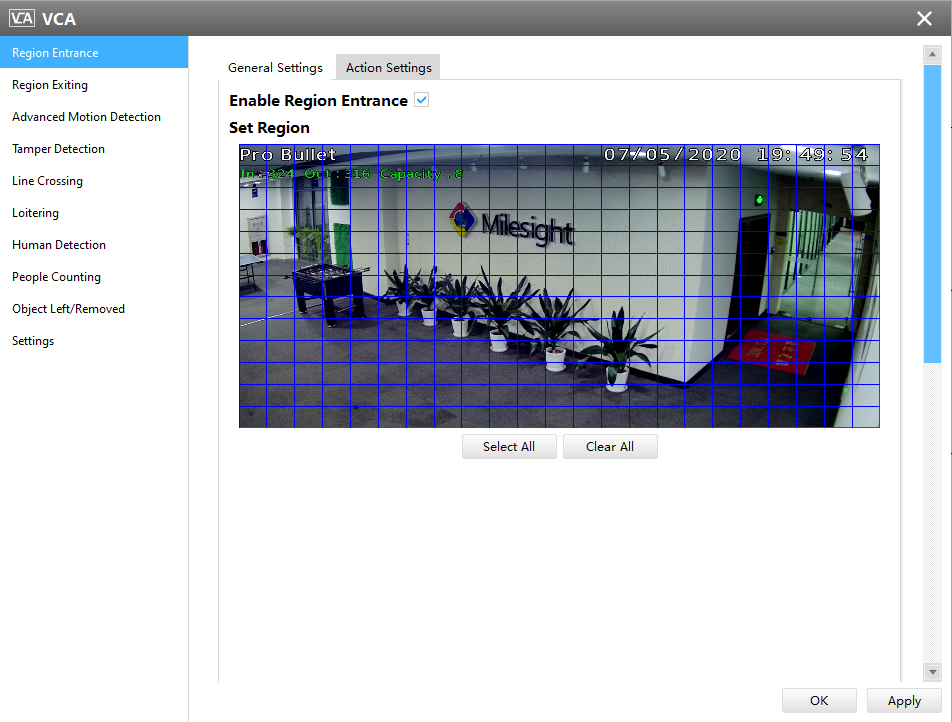

The VCA page is as below:

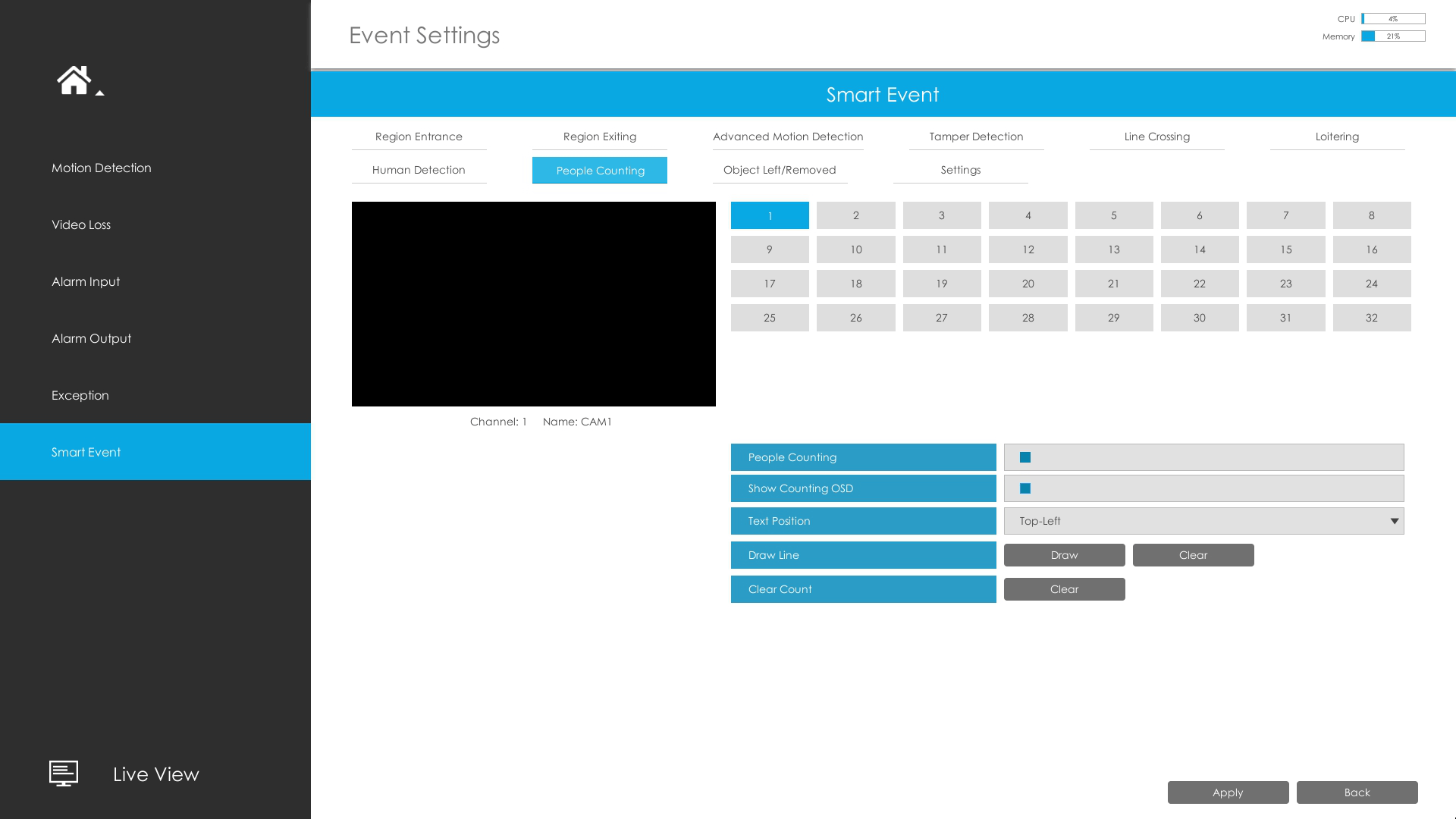

Here are nine options for Smart Event-General Settings page [Region Entrance] [Region Exiting] [Advanced Motion Detection] [Tamper Detection] [Line Crossing] [Loitering] [Human Detection] [People Counting] [Object Left/Removed](Optional) that you can select. Beside, you can choose the [Settings] to do some basic setup.

Step1: Check the checkbox to enable the VCA that you choose, you can draw the interested area or click the Select All buttonto select all areas interested.

Step2: After finishing general settings you can draw the schedule in the Action Settings page. And then click [OK] or [Apply] after all done. You also can copy the settings to other channels.

Ⅶ. Advantages of Milesight Video Content Analysis

Detect suspicious activities immediately

Provide pro-active operation

Reduce workload for the staff

Automatically analyze surveillance video in real-time

Independent function settings in Network Cameras, NVR and CMS

VCA solution ensures that video surveillance more accurate and cost-effective

Ⅷ. Conclusion

With Milesight VCA solution the operator can pre-define situation detection which reduce a lot of workload. And the intelligent monitoring application is general as well as specialized for different industries, creating new end user benefits and opening up new business possibilities.
